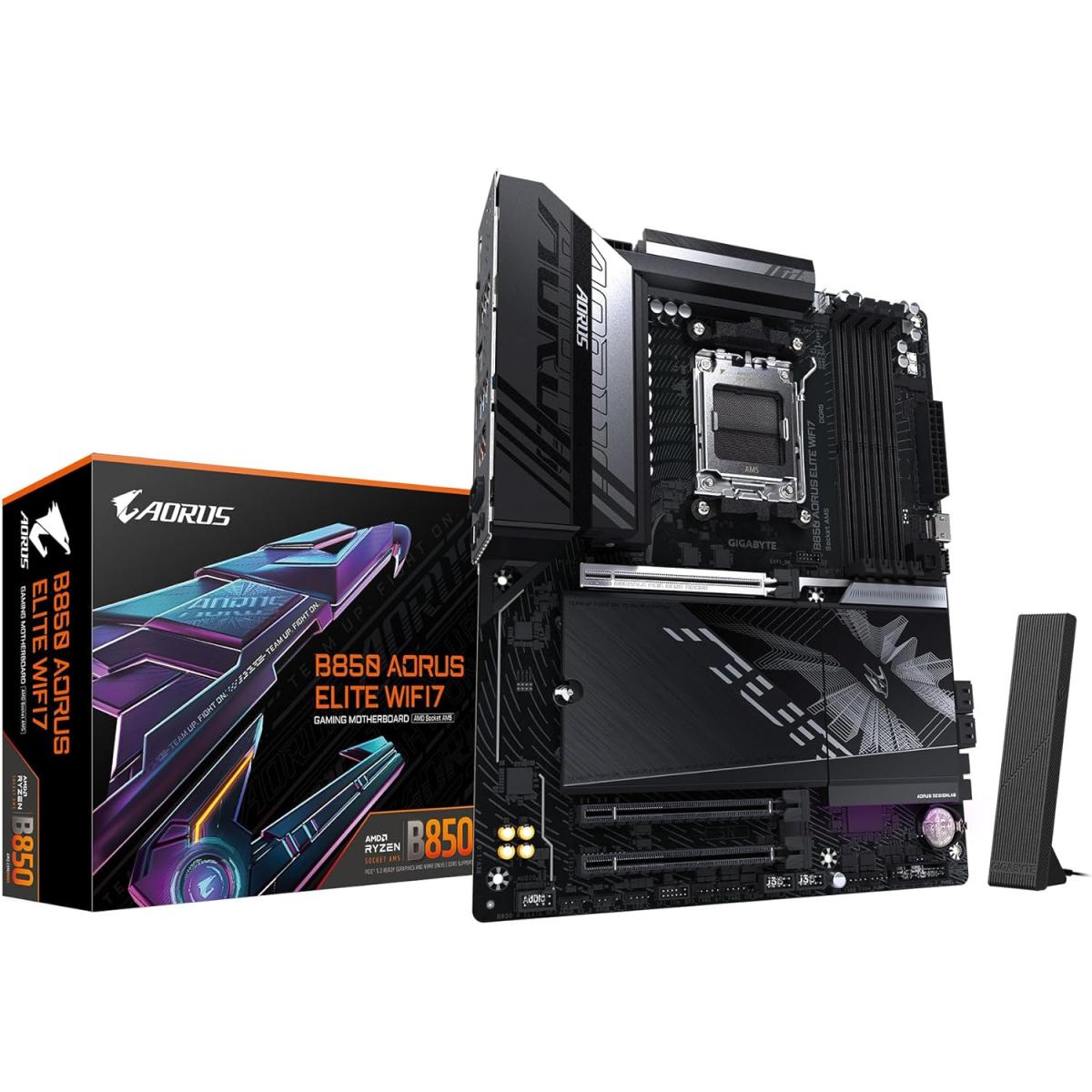

GIGABYTE B850 AORUS ELITE WIFI7 AMD RYZEN Series AM5/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard | B850 AORUS ELITE WIFI7 |

Motherboard Specifications Supported Processors Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Chipset AMD B850 Socket AMD AM5 Memory Type DDR5 Memory Slots Maximum Memory 256GB Memory Bus Speed Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types data rate (speed) and number of DRAM modules please refer to "Memory Support List" on GIGABYTE's website for more information.) Ports 1 x DisplayPort* 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C® port with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector Form Factor ATX M.2 Slots Yes Expansion Slots 1 x PCI Express x16 slot (PCIEX16) integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1(PCIEX1_1 PCIEX1_2)
