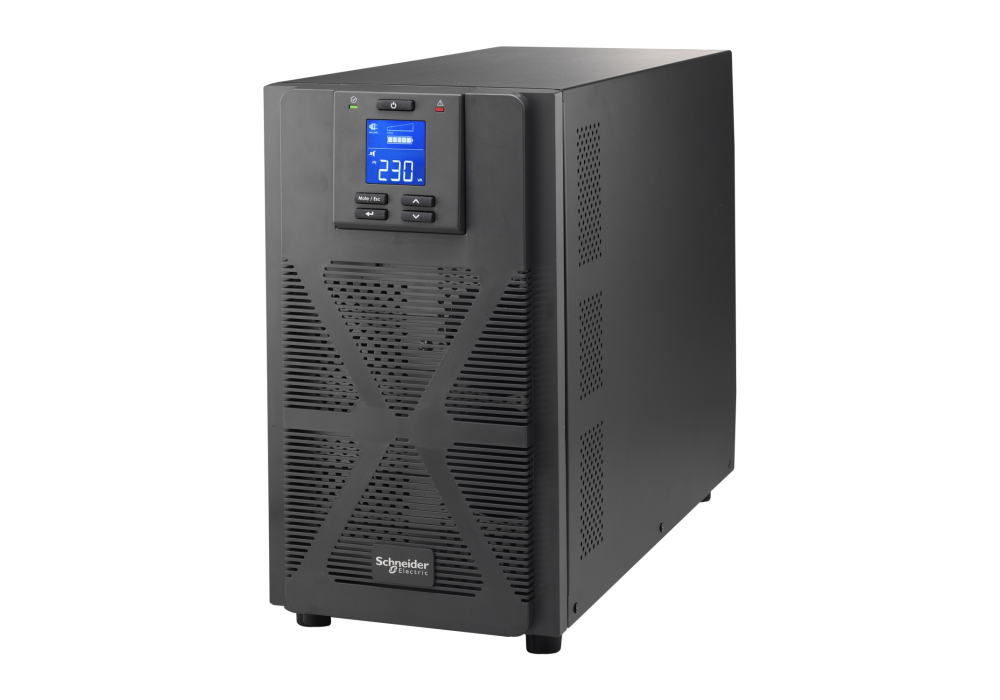

| Presentation | For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. |
|---|---|
| Lead time | Usually in Stock |
Run time for load
WMin-max: 240-2400 W |
4min 24s |
|---|---|
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage | 220 V 240 V |
| Input Connection Type | IEC 60320 C20 |
| Input voltage limits | 110...285 V half load 160...280 V full load |
| Network frequency | 40...70 Hz auto sensing |
| Output voltage | 230 V AC 1 phase |
| Output voltage | 220 V 240 V |
| Rated power in W | 2400 W |
| Rated power in VA | 3000 VA |
| Output connection type | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2400 W |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Battery type | Lead-acid battery |
|---|---|
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery voltage | 72 V |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 60 W rated |
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port USB port Available expansion slot |
| Surge energy rate | 600 J |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Colour | Black (RAL 7010) |
| Height | 336 mm |
| Width | 190 mm |
| Depth | 425 mm |
| Net weight | 26.8 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Mounting mode | Tower |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS 1Ph On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE UKCA |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15000 m |
| IP degree of protection |
