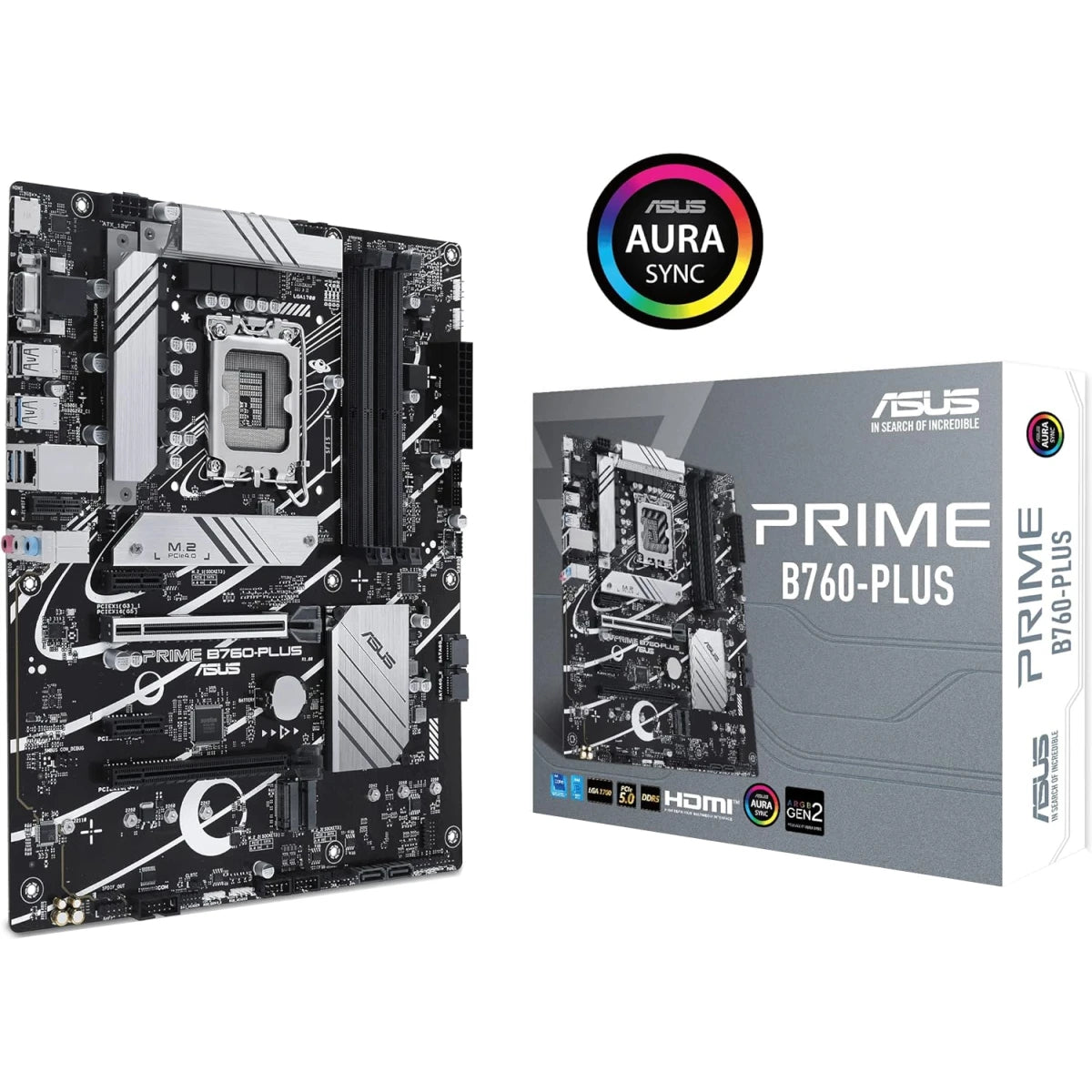

ASUS PRIME MOTHERBOARD ASUS PRIME B760-PLUS, AN INTEL B760 LGA 1700 ATX MOTHERBOARD WITH PCIE 5.0, THREE PCIE 4.0 M.2 SLOTS, DDR5, REALTEK 2.5GB ETHERNET, DISPLAYPORT, VGA, HDMI™, SATA 6 GBPS, USB 3.2 GEN 2X2 TYPE-C FRONT USB 3.2 GEN 1 TYPE-C , THUNDERBOLT™ (USB4 ) SUPPORT, AURA SYNC. PRIME B760-PLUS ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13 Gen Intel Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FEATURES Intel LGA 1700 Socket: Ready for 13 and 12 Gen Intel processors Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C , front USB 3.2 Gen 1 Type-C and Thunderbolt™ (USB4 ) header support Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware SPECIFICATIONS MODEL PRIME B760-PLUS CPU Intel Socket LGA1700 for 13 Gen Intel Core™ & 12 Gen Intel Core™, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 CHIPSET Intel B760 Chipset MEMORY 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II GRAPHICS 1 x DisplayPort 1 x VGA port 1 x HDMI™ port EXPANSION SLOTS Intel & 12 Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots STORAGE Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel & 12 Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports ETHERNET 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe) USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports AUDIO Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers BACK PANEL I/O PORTS 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks INTERNAL I/O CONNECTORS Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4 ) header SPECIAL FEATURES ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY ProCool Aura Sync Aura RGB header Addressable Gen 2 headers SOFTWARE FEATURES ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving AI Suite 3 DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS MANAGEABILITY WOL by PME, PXE ACCESSORIES Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide OPERATING SYSTEM Windows 11, Windows 10 64-bit FORM FACTOR ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) PRIME B760-PLUS Warranty: 1-Year Warranty Motherboard Specifications CPU Support 14 & 13th Generation Intel CPU CPU Socket Type LGA 1700 Chipset INTEL B760 Form Factor ATX Memory Type DDR5 Memory Speed 7200 MHz Maximum Memory 192 GB Memory Slots 4 Slots M.2 Slots Yes Wireless LAN Warranty Warranty 1 years Please to review
Which CPU and memory should be matched with this motherboard?
Match it with processors for the listed lga1700 platform and use DDR5. Do not mix DDR4 and DDR5 memory kits.
Will this motherboard fit my PC case and storage setup?
Use a case that supports the listed motherboard form factor and check the M.2/SATA storage support before selecting SSDs. Add-in Wi-Fi may be needed if onboard wireless networking is not listed.
