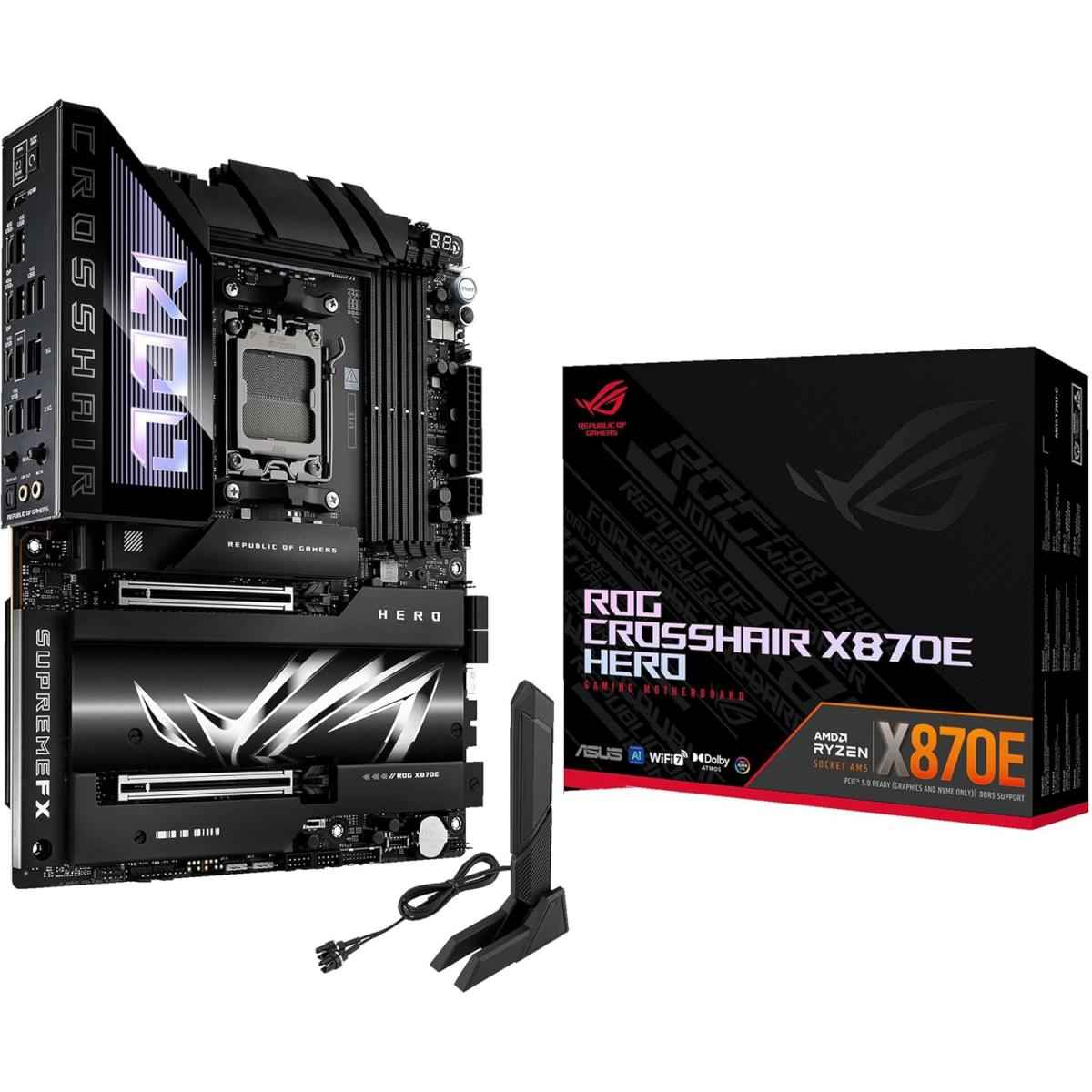

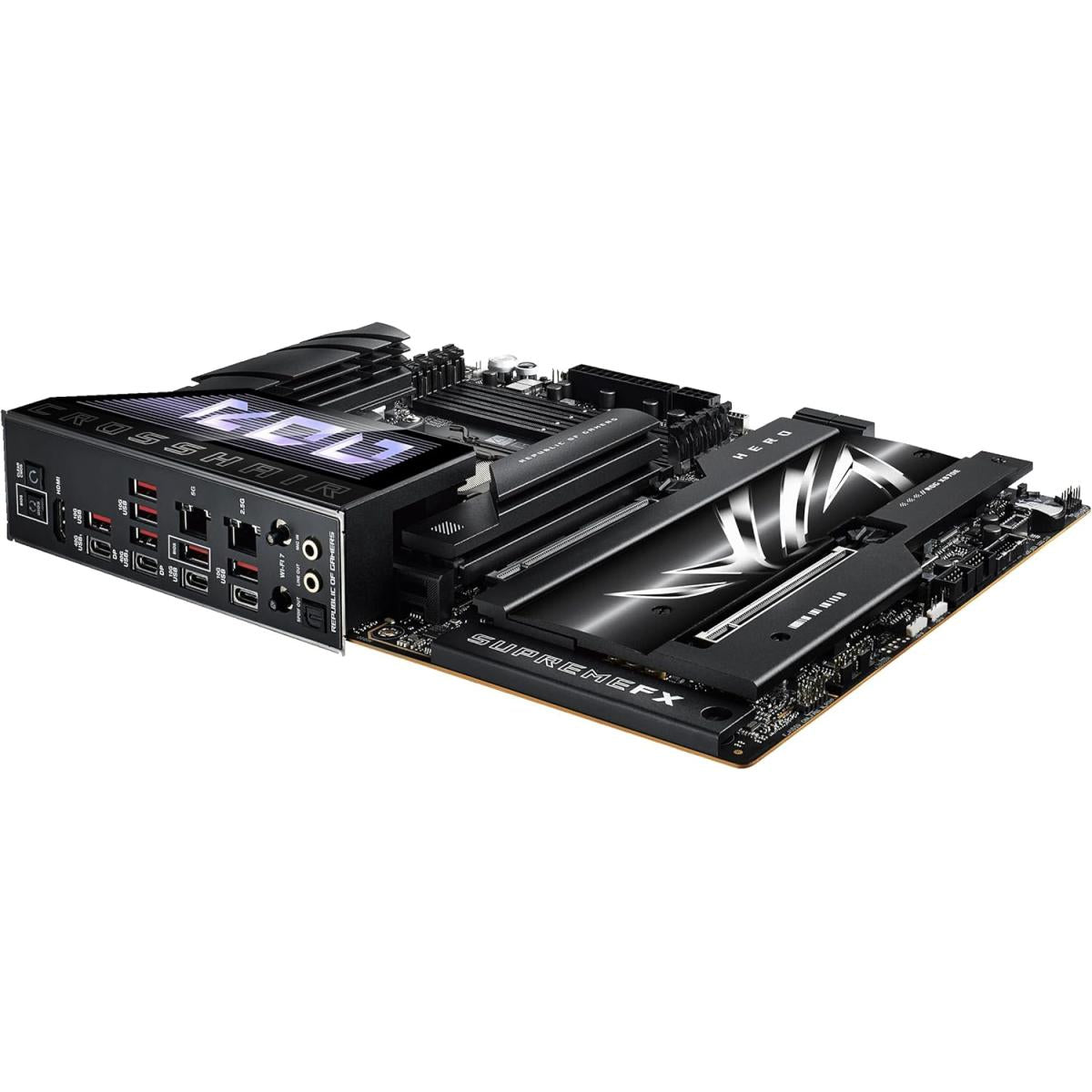

ASUS ROG CROSSHAIR X870E HERO WIFI (Wi-Fi 7) AMD RYZEN Series AM5/DDR5/PCIe 5.0/5xM.2 - ATX Gaming MotherBoard | ROG CROSSHAIR X870E HERO |

Motherboard Specifications Supported Processors Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Chipset AMD X870 Socket AMD AM5 Memory Type DDR5 Memory Slots Maximum Memory 256GB Memory Bus Speed 4 x DIMM slots max.256GB DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors 8600+MT/s(OC) with Ryzen™ 8000 Series Processors 8000+MT/s(OC) with Ryzen™ 7000 Series Processors ECC and Non-ECC Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) Ports 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Form Factor ATX M.2 Slots Yes Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8 PCIEx16_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4 PCIEx16_2 will be disabled) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When both PCIEX16_1 and PCIEX16_2 are in use they will each run in x8 mode. *** When M.2_2 is enabled but M.2_3 is not in use PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. *** When M.2_3 is enabled but M.2_2 is not in use PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode. *** When both M.2_2 and M.2_3 are enabled PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. - To ensure compatibility of the device installed please refer to https://www.asus.com/support/ for the list of supported
