| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5066, 5133, 5333 MT/s |
| Storage Slots | 2x 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x 2242, 2260, 2280 (PCIe 4.0 x4) 1x 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Expansion Slots | 1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x1 |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Form Factor | ATX |
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| USB | 1x USB-C (USB 3.2 Gen 2x2) 2x USB-A (USB 3.1/3.2 Gen 2) 1x USB-C (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
| Thunderbolt | No |

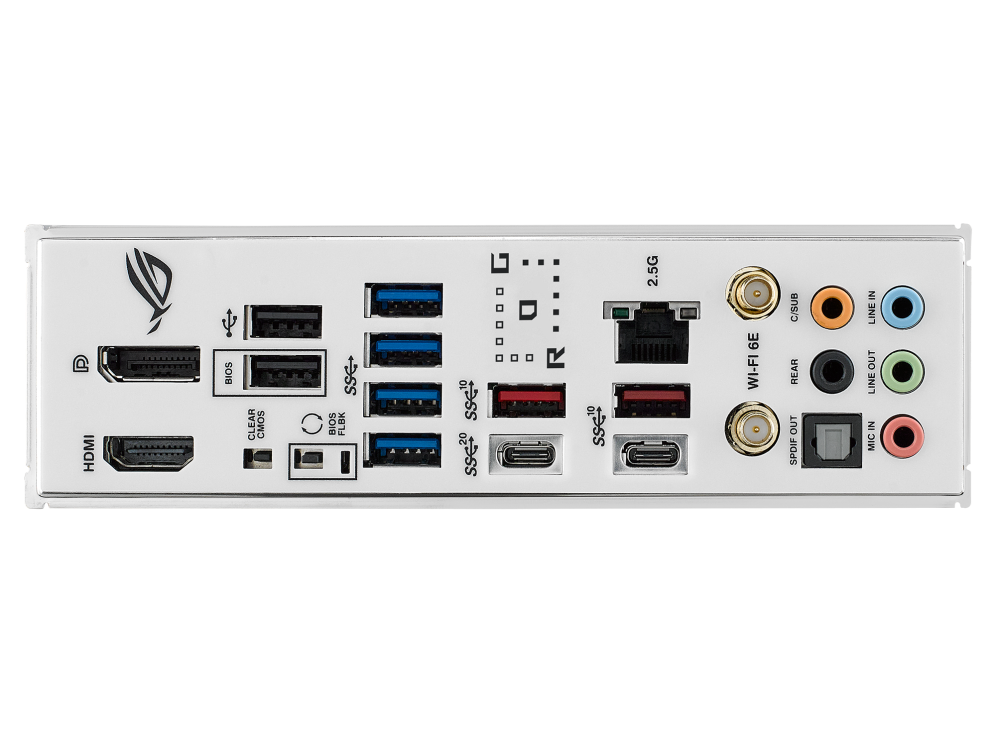

| Display | 1x DisplayPort 1x HDMI |
| Audio | 5x 1/8" / 3.5 mm 1x S/PDIF |
| Ethernet / Controller | 1x Intel 2.5Gigabit |
| Wi-Fi Antenna | 2x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5066, 5133, 5333 MT/s |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4x SATA III |
| Storage Slots | 2x 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x 2242, 2260, 2280 (PCIe 4.0 x4) 1x 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2) |
| Expansion Slots | 1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x1 |
| USB | 1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 2x 4-Pin CPU 5x 4-Pin System 1x Thermal Sensor |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard 2x 8-Pin CPU |
| Security | Chassis Intrusion |
| LED Header | 4x RGB |
| Diagnostics | Voltage Regulation |
| Add-On | 1x Thunderbolt Header |
| ROM | 256 Mb |
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2 |
| Audio Codec | SupremeFX ALC-Channel) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | 5.2 |
| OS Compatibility | Windows 10 Windows 11 |
| Form Factor | ATX |
| Dimensions | 9.6 x 12" / 24.4 x 30.5 cm |
| Package Weight | 4.895 lb |
| Box Dimensions (LxWxH) | 13.7 x 11.4 x 2.8" |
