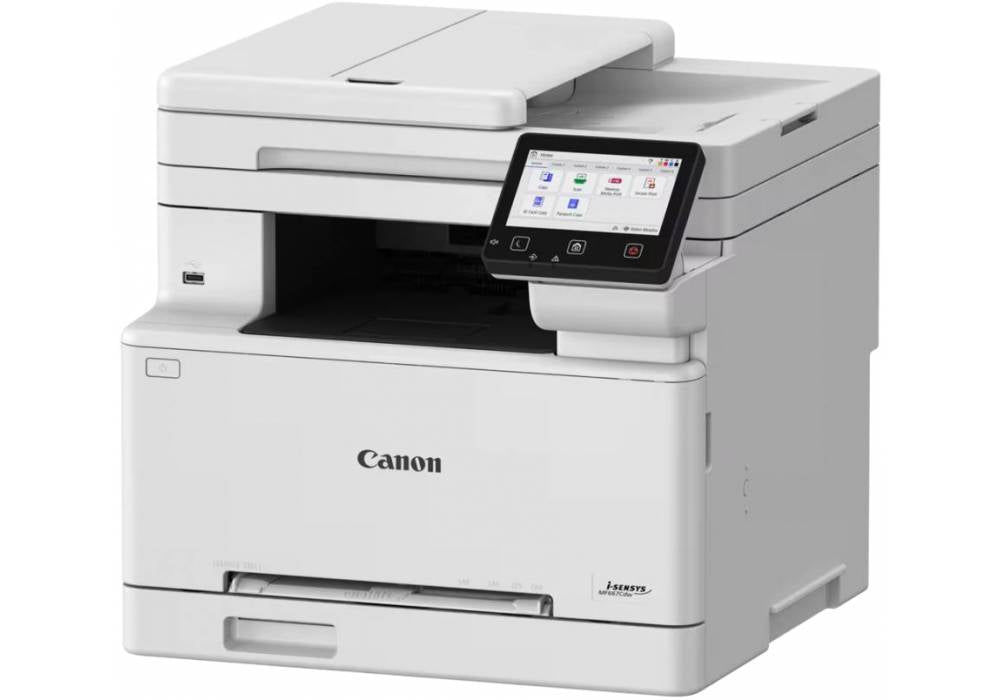

Canon i-SENSYS MF664Cdw Colour Laser Multi-Function Printer, 25 ppm Speed, 3-in-1 Print Scan Copy, Auto Duplex, Wireless & Gigabit Ethernet, Secure Print, 12.7cm Touchscreen, White

General Specifications

• Machine Type
  Colour Laser All-In-One
• Available Functions
  Print, Copy and Scan

Print Specifications

• Print Speed

  Single sided:	Up to 25 ppm (A4)
  	Up to 45.3 ppm (A5-Landscape)
  Double sided:	Up to 15 ipm (A4)

• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Approx. 13 seconds or less from power on
• First-Print-Out Time
  Colour approx.: 10.93 seconds or less
  Mono approx.: 10.90 seconds or less
• Printer Languages
  UFRII, PCL 5c2, PCL6
• Fonts
  45 PCL fonts
• Print Margins
  5 mm-top, bottom, left and right
  10 mm-top, bottom, left and right (Envelope)
• Toner Saver Mode
  Yes
• Advanced Printing Features
  Encrypted Secure Print
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
  Microsoft Universal Print support
  iOS: AirPrint, Canon PRINT app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere

Copy Specifications

• Copy Speed
  Single sided (A4): Up to 25 ppm
  Double sided (A4): Up to 15 ipm
• First-Copy-Out Time
  ADF (A4):
  Colour Approx. 10.6 seconds or less
  Mono Approx. 10.5 seconds or less

  Platen (A4):
  Colour Approx. 11.2 seconds or less
  Mono Approx. 11.0 seconds or less
• Copy Resolution
  Up to 600 x 600 dpi
• Copy Modes
  Text/Photo/Map (Default),Text/Photo/Map (quality), Printed Image, Text
• Double Sided Copying
  1-sided to 2-sided (Automatic)
• Multiple Copies
  Up to 999 copies
• Reduction / Enlargement
  25-400% in 1% increments
• Other Features
  Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy

Scan Specifications

• Standard Type
  Colour
• Scan Resolution
  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi
• Scan Speed
  Single sided mono: 50ipm (300x300dpi)
  Single sided colour: 40ipm (300x300dpi)
  Single sided mono: 40ipm (300x600dpi)
  Single sided colour: 20ipm (300x600dpi)
• Colour Scanning Depth
  24 bit/24 bit (input/output)
• Greyscales
  256 levels
• Compatibility
  TWAIN, WIA, ICA
• Maximum Scan Width
  216mm
• Scan to PC
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b
• Scan to USB Memory Key
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b
• Scan to FTP
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b
• Scan to Cloud
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b

Media Handling

• Scanner Type
  Platen, ADF
• Paper Input (Standard)
  250-sheet cassette
  1-sheet manual feed slot
  50-sheet ADF
• Maximum Paper Input Capacity
  251 sheets
• Paper Output
  100-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  Cassette:
  A4, A5, A5 (Landscape), B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm, Max. 216 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm, Max. 216 x 355.6 mm.

  ADF:
  A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm, Max. 216.0 x 355.6 mm
• Media Weights
  Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  ADF: 50 to 105 g/m²
• Double Sided Printing
  Automatic
  Cassette:
  A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
  Custom size - Min. 182 x 257 mm, Max. 216 x 355.6 mm
  60 to 200 g/m²

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Server® 2025 /Server® 2022 / Server® 2019 / Server® 2016
  Mac OS X version 10.15 & up
  Linux1
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  Scan:
  Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
  E-mail/I-Fax: SMTP (send), POP3 (receive)
  Pull Scan: TCP/IP

  Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security:
  TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
  Access Point Mode:
  WPA2-PSK(AES), WPA3-SAE (AES)
• Software and Printer Management
  MF Scan Utility,
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  Cooperating with External Security Audit System (Security Information and Event Management)
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Application Library

General Features

• Recommended Monthly Print Volume
  250 - 2,500 pages per month
• Duty Cycle
  Max. 30,000 pages per month2
• Processor Speed
  1200MHz
• Memory
  1GB
• Storage
  4GB
• Control Panel
  12.7 cm LCD Colour Touch Screen
• Dimensions with Trays (W x D x H)
  425 mm x 461 mm x 397 mm
• Installation Space (W x D x H)
  701 mm x 1,020 mm x 785 mm
• Weight
  Approx. 20.8 Kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)
• Power Source
  220-240V(±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 980 W
  Active printing: Approx. 580 W
  Standby: Approx. 12.0 W
  Sleep mode: Approx. 1.0 W
  Typical Electricity Consumption (TEC): 0.23 kWh/week3
  For detailed information relating to Lot26 regulation, please go to:
  https://www.canon-europe.com/business/lot26/
• Noise Levels
  Sound Pressure4:
  Active: Simplex 53 dB / Duplex 52 dB
  Standby: Inaudible

  Sound Power5:


  Active:	Simplex 67 dB or less (BW) / 66 dB or less (CL)
  	Duplex 66 dB or less

  Standby: Inaudible

Consumables

• Cartridges
  Cartridge 075 Black (1,400 pages6)
