Title: Deepcool Pl750d Power Supply

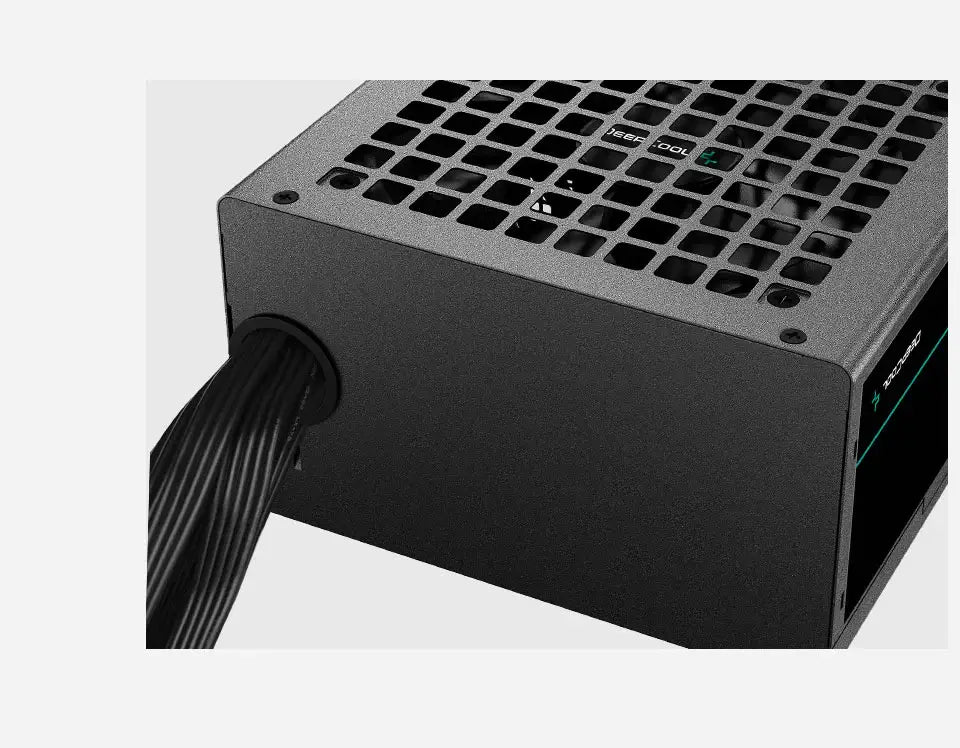

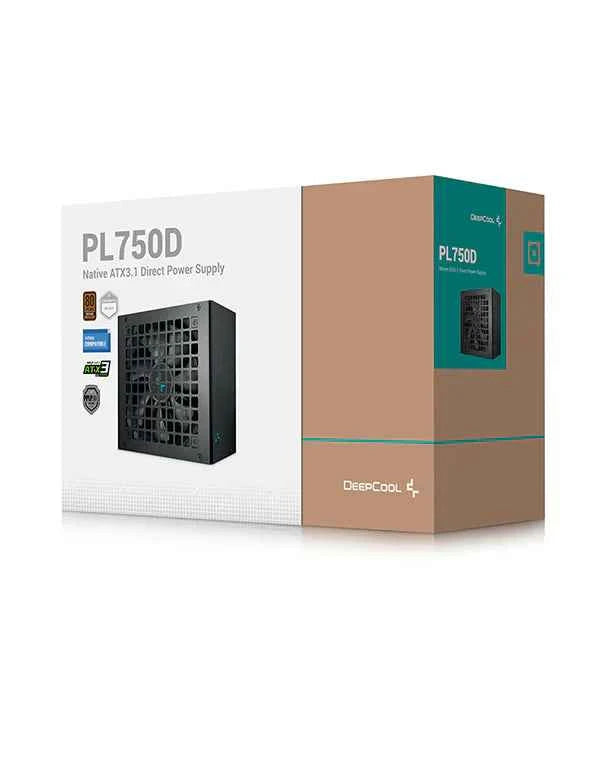

PL750D
Native ATX3.1 Power Supply
DeepCool PL750D Power Supply


NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 450 watts.

2X
ATX 3.1

1.0X
ATX 2.0
Total Power Excursion
DeepCool PL750D Power Supply
DeepCool PL750D Power Supply
DeepCool PL750D Power Supply

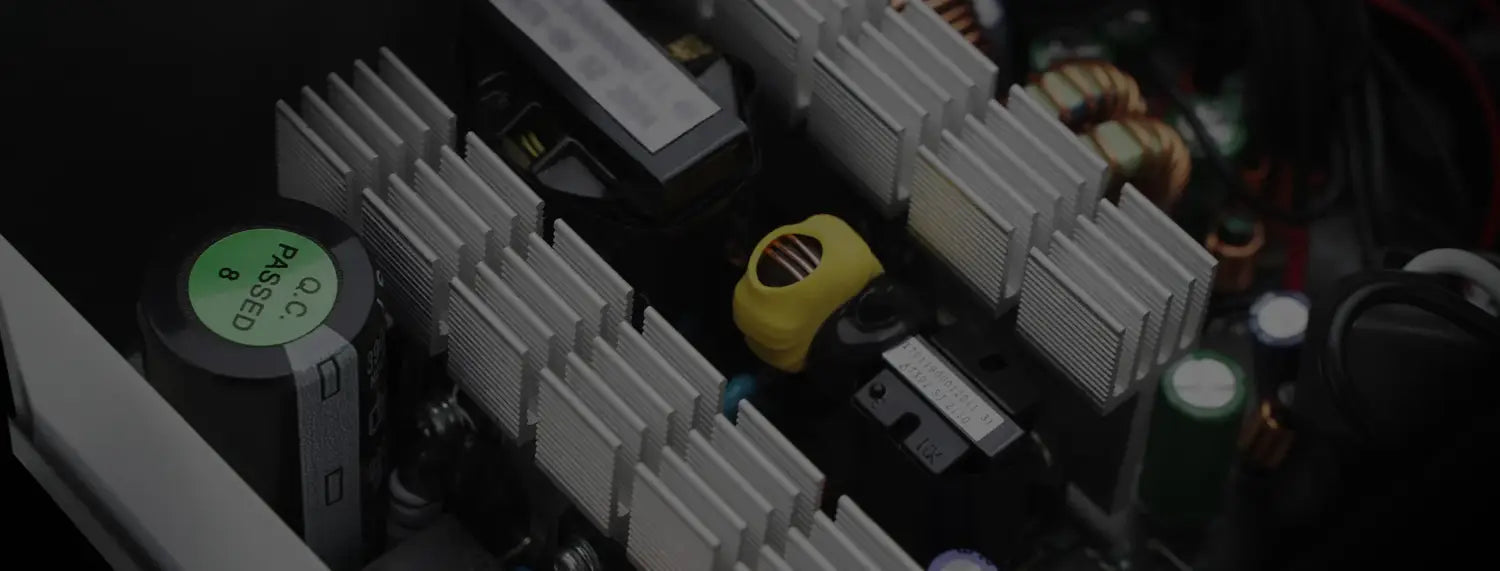

PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
DeepCool PL750D Power Supply
DeepCool PL750D Power Supply
DeepCool PL750D Power Supply
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
DeepCool PL750D Power Supply


DeepCool PL750D Power Supply
DeepCool PL750D Power Supply
12V-2x6
CABLE
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
DeepCool PL750D Power Supply

BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
DeepCool PL750D Power Supply
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
DeepCool PL750D Power SupplyOver Power Protection
DeepCool PL750D Power SupplyOver Voltage Protection
DeepCool PL750D Power SupplyShort Circuit Protection
DeepCool PL750D Power SupplyOver Temp Protection
DeepCool PL750D Power SupplyOver Current Protection
DeepCool PL750D Power SupplyUnder Voltage Protection
DeepCool PL750D Power SupplySurge & Inrush Protection
DeepCool PL750D Power SupplyNo Load Operation

DeepCool PL750D Power Supply
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
DeepCool PL750D Power Supply
Main Power Connector (20+4)Pin x 1
X1
DeepCool PL750D Power Supply
CPU(4+4)Pin x 1
X2
DeepCool PL750D Power Supply
PCI-E(6+2)Pin x 1
X1
DeepCool PL750D Power Supply
PCI-E(6+2)Pin x 2
X1
DeepCool PL750D Power Supply
12V-2x6(16Pin) x 1
X1
DeepCool PL750D Power Supply
SATA x 4 + 4Pin Peripheral x 1
X2



Technical Spec
Type ATX12V V3.1
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II 级

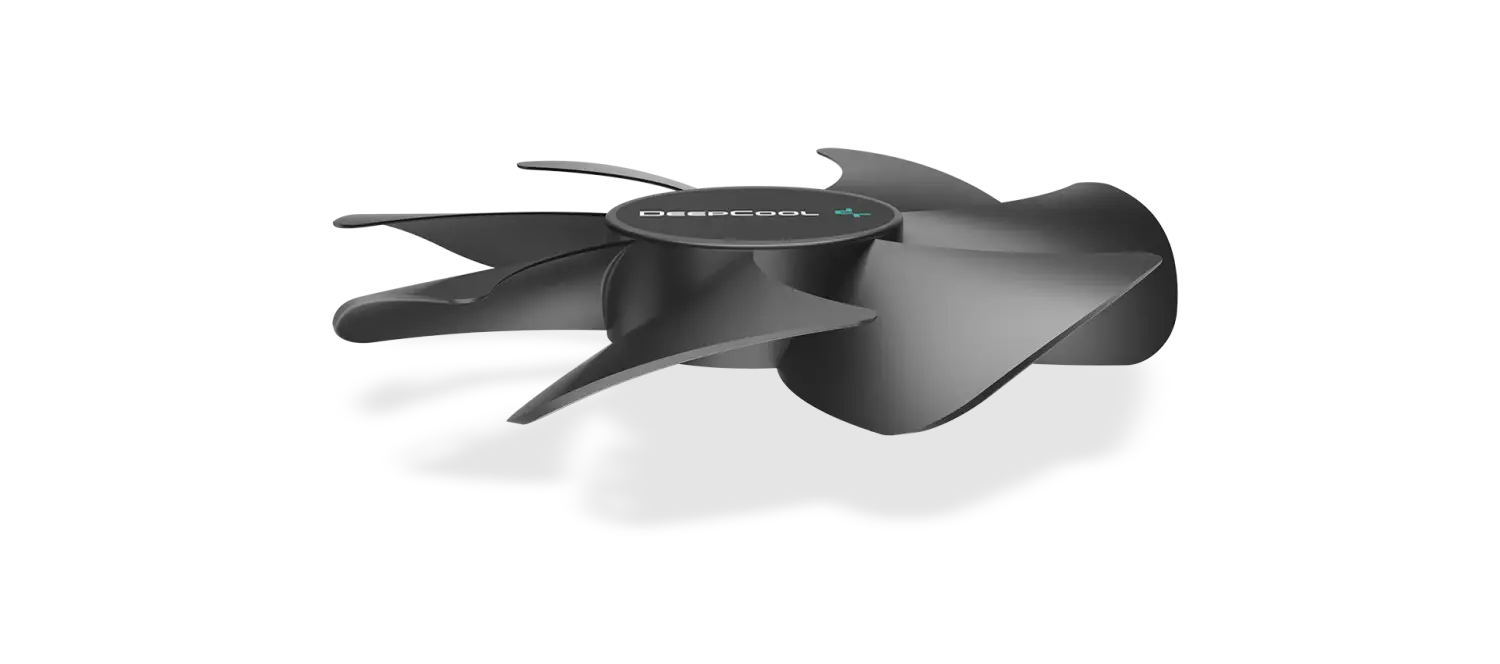

Fan Size 120mm

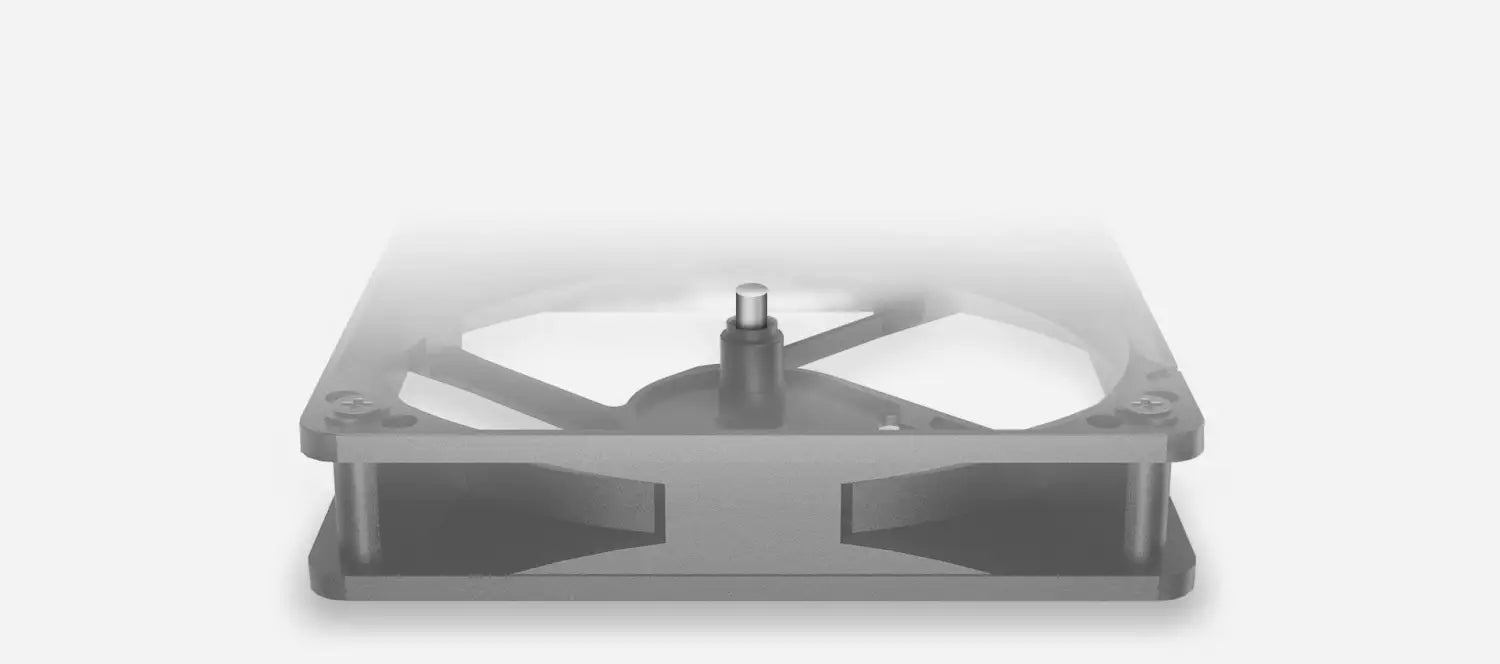

Fan Bearing HYB(Hydro Bearing)
Topology Active PFC+DC to DC
Capacitors Chinese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥85% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0 - 40℃
Regulatory CE/FCC/CCC/RCM/EAC/BIS/
CAN ICES-003(B)/NMB-003(B) /TUV-RH
Erp Regulation ErP 2014
Environment Protection WEEE/中国 RoHS/Triman/P65
MTBF
