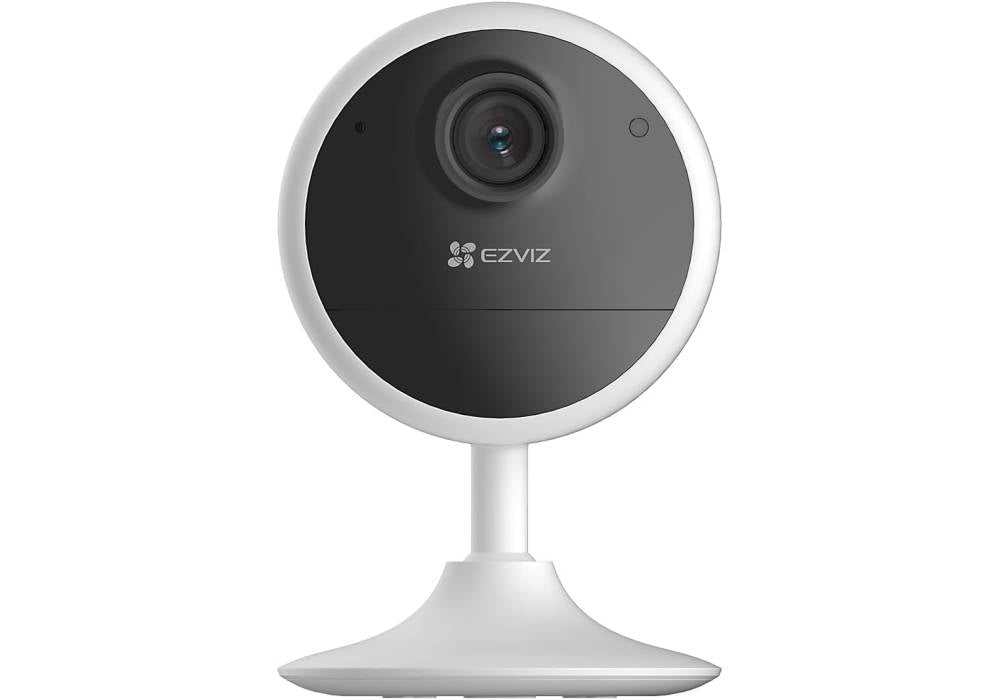

The EZVIZ CB1 (Model CS-CB1-R100-1K2WF) is an ultra-compact, wire-free indoor smart home security camera equipped with an integrated 1,600 mAh rechargeable battery. Powered by a 1/3" 2-Megapixel Progressive Scan CMOS sensor with a wide 2.8mm lens (113° diagonal field of view), it delivers crisp 1080p Full HD video stream capabilities without requiring permanent wall outlets or data wiring.
Designed for flexible home placement, the camera features a 360° adjustable magnetic base and metal mounting plate, making it simple to snap onto metallic surfaces, shelf stands, or ceilings. Intelligent human motion detection leverages a PIR sensor combined with shape recognition algorithms to deliver accurate mobile push notifications while reducing false alerts.
With up to 40 days of battery life on a single charge under standard operation, the CB1 supports two-way voice communication, automatic infrared night vision up to 5 meters (16 ft), modern H.265 video compression, and privacy sleep mode.
Key Features
Technical Specifications
EZVIZ CB1 100% Wirefree Indoor Battery Camera
Designed for flexible home placement, the camera features a 360° adjustable magnetic base and metal mounting plate, making it simple to snap onto metallic surfaces, shelf stands, or ceilings. Intelligent human motion detection leverages a PIR sensor combined with shape recognition algorithms to deliver accurate mobile push notifications while reducing false alerts.
With up to 40 days of battery life on a single charge under standard operation, the CB1 supports two-way voice communication, automatic infrared night vision up to 5 meters (16 ft), modern H.265 video compression, and privacy sleep mode.
Key Features
- 100% Wire-Free Operation:Powered by a built-in 1,600 mAh rechargeable lithium battery providing up to 40 days of continuous standby power.
- 1080p Full HD Video: Powered by a 1/3" 2MP CMOS sensor with a wide 2.8mm @ F2.2 lens for 113° diagonal viewing angles.
- Magnetic Base Mount: Features a 360° adjustable stand with a magnetic attachment point for easy placement on metal surfaces, walls, or tables.
- Smart PIR & Human Motion Detection: Integrates a physical PIR sensor with AI human shape detection to eliminate false triggers.
- H.265 Video Compression: Efficient video encoding reduces network bandwidth usage and cuts storage consumption in half compared to H.264.
- Two-Way Audio Talkback: Built-in microphone and speaker allow clear live bidirectional communication via the EZVIZ app.
- 5m Night Vision & Privacy Sleep Mode: Provides clear auto-switching IR night vision up to 5 meters (16 ft) and includes an instant app-activated privacy sleep mode.
- High-Capacity MicroSD Support: Integrated microSD card slot supports local video recording up to 512 GB.
Technical Specifications
Specification
Details
Model Name / Number
EZVIZ CB1 / CS-CB1-R100-1K2WF
Image Sensor
1/3" 2-Megapixel Progressive Scan CMOS Sensor
Maximum Resolution
1080p Full HD (1920 × 1080 @ 15 fps)
Lens Focal Length
2.8 mm @ F2.2 (FOV: 90° Horizontal, 50° Vertical, 113° Diagonal)
Minimum Illumination
0.1 Lux
Night Vision Range
Up to 5 meters / 16 ft (Auto IR-Cut Switch Filter)
Video Compression
H.265 / H.264 (Adaptive Bit Rate up to 1 Mbps)
Smart Analytics & Alerts
PIR Sensor + Smart Human Motion Detection, Customized Alert Area
Audio
Built-in Microphone & Speaker (Two-Way Talk Supported)
Battery Capacity & Power
Built-in 1,600 mAh Rechargeable Lithium Battery / Power Supply: DC 5V 1A (Sold Separately)
Wireless Network
Wi-Fi IEEE 802.11b/g/n (2.4 GHz ~ 2.4835 GHz)
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Wired Network
Not Supported
Local Storage Capacity
MicroSD Card Slot (Supports up to 512 GB)
Cloud Storage
EZVIZ CloudPlay Storage (Subscription required)
Operating Conditions
-10°C to 45°C (14°F to 113°F), Humidity 95% or less
Dimensions & Weight
67 × 63 × 105 mm (2.64 × 2.48 × 4.13 in) / Net Weight: 135 g (4.76 oz)
Package Contents
CB1 Camera, USB Power Cable, Foam Stickers, Mounting Metal Plate, Regulatory Information, Quick Start Guide
| Specification | Details |
| Model Name / Number | EZVIZ CB1 / CS-CB1-R100-1K2WF |
| Image Sensor | 1/3" 2-Megapixel Progressive Scan CMOS Sensor |
| Maximum Resolution | 1080p Full HD (1920 × 1080 @ 15 fps) |
| Lens Focal Length | 2.8 mm @ F2.2 (FOV: 90° Horizontal, 50° Vertical, 113° Diagonal) |
| Minimum Illumination | 0.1 Lux |
| Night Vision Range | Up to 5 meters / 16 ft (Auto IR-Cut Switch Filter) |
| Video Compression | H.265 / H.264 (Adaptive Bit Rate up to 1 Mbps) |
| Smart Analytics & Alerts | PIR Sensor + Smart Human Motion Detection, Customized Alert Area |
| Audio | Built-in Microphone & Speaker (Two-Way Talk Supported) |
| Battery Capacity & Power | Built-in 1,600 mAh Rechargeable Lithium Battery / Power Supply: DC 5V 1A (Sold Separately) |
| Wireless Network | Wi-Fi IEEE 802.11b/g/n (2.4 GHz ~ 2.4835 GHz) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wired Network | Not Supported |
| Local Storage Capacity | MicroSD Card Slot (Supports up to 512 GB) |
| Cloud Storage | EZVIZ CloudPlay Storage (Subscription required) |
| Operating Conditions | -10°C to 45°C (14°F to 113°F), Humidity 95% or less |
| Dimensions & Weight | 67 × 63 × 105 mm (2.64 × 2.48 × 4.13 in) / Net Weight: 135 g (4.76 oz) |
| Package Contents | CB1 Camera, USB Power Cable, Foam Stickers, Mounting Metal Plate, Regulatory Information, Quick Start Guide |
EZVIZ CB1 100% Wirefree Indoor Battery Camera
Magnetic Base
360° adjustable bracket for easy installation
With the magnetic base, you can mount this indoor camera anywhere. When mounted on the ceiling, the camera also supports image flipping.
