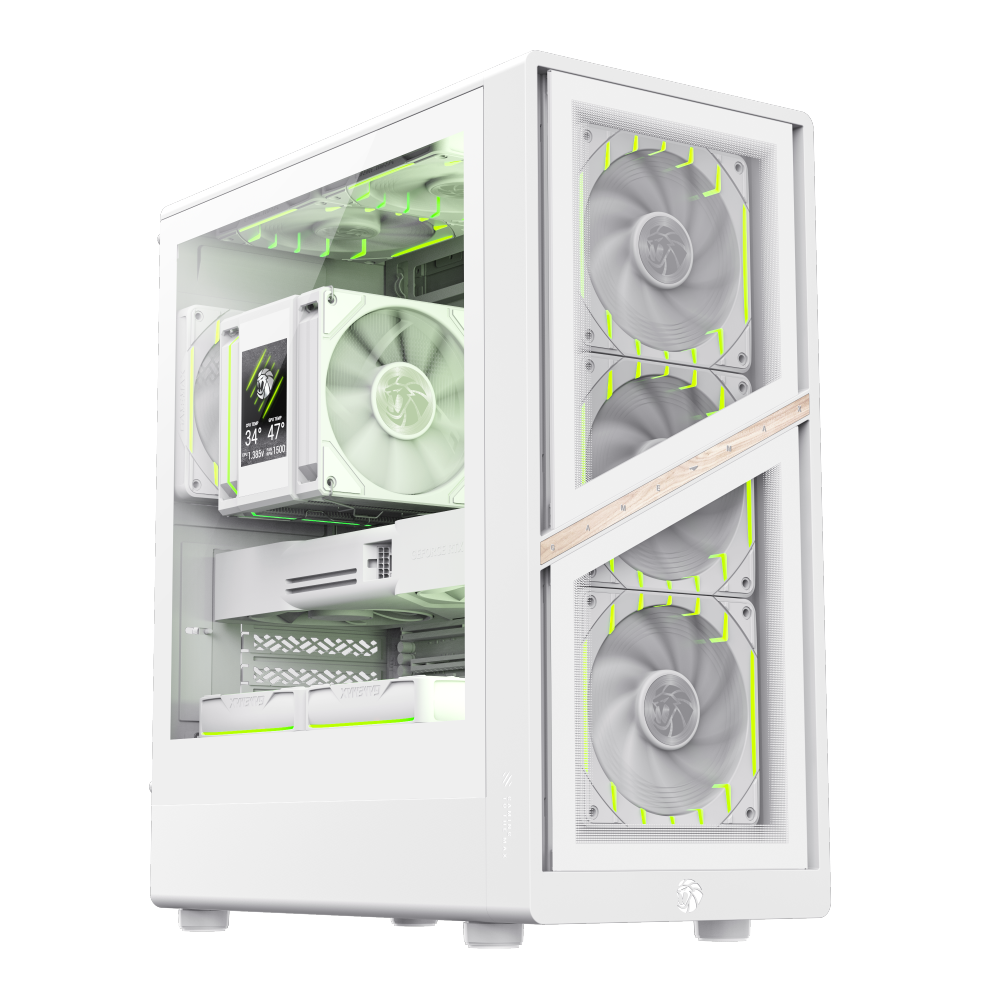

GAMEMAX AERIS 330 GW (WHITE) MATX GAMING CASE

Chassis:

SPCC :0.4mm

PSU Form Factor

Bottom/ATX

M/B Form Factor:

M-ATX、ITX

Front Panel:

Plastic + Mesh

Top Panel:

Metal

Side Panel:

Left:

Tempered Glass

Right:

Metal cover

External Drive Bay(s):

5.25”(ODD):

*0

3.5”:

*0

Internal Drive Bay(s):

3.5" (HDD):

1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 2*3.5HDD+4*2.5SSD or 3*3.5HDD+2*2.5SSD

2.5" (SSD):

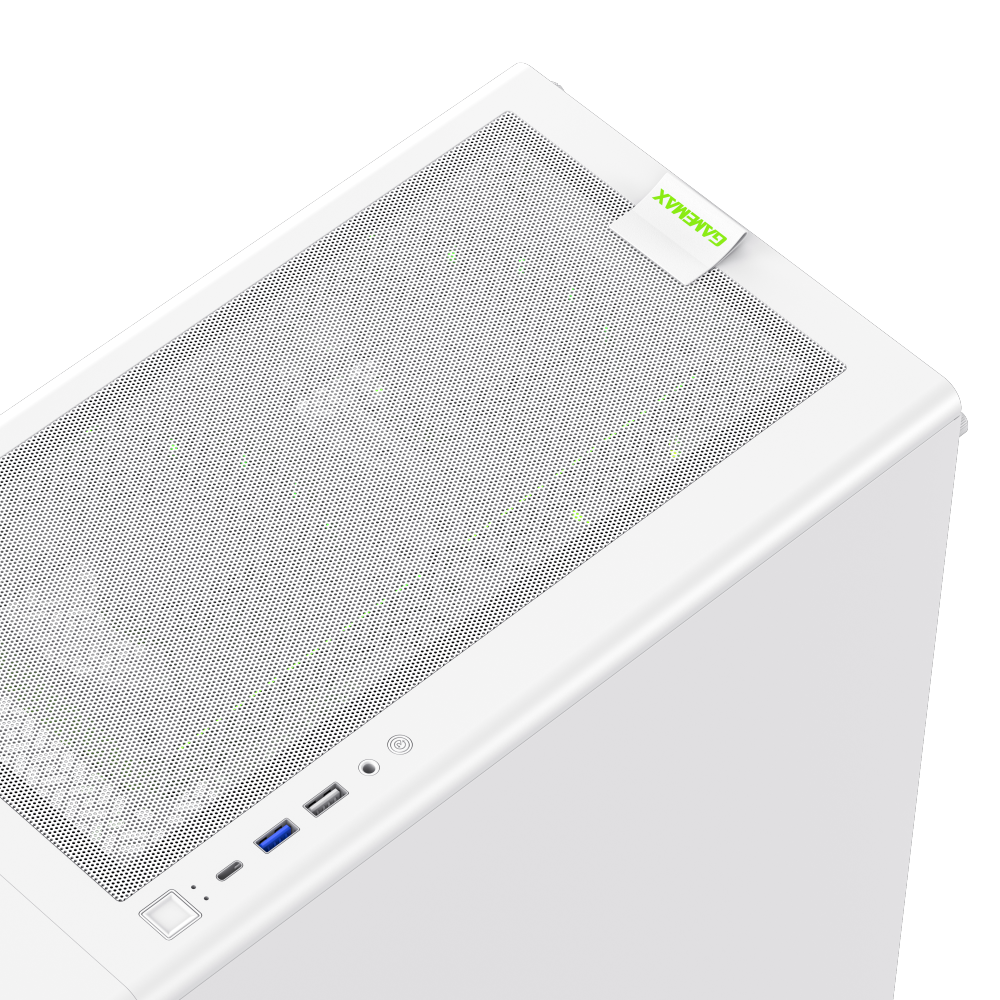

I/O:

Buttons:

*2

USB 2.0 Port(s):

*1

USB 3.0 Port(s):

*1

Type C Port(s):

*1(U3)

Audio Support:

*1(Combo AUDIO)

Card Reader (Support):

*0

P-Lock：

*0

RGB Controller：

*1(6Ports PWM ARGB HUB)

Controller Max Fans:

*6

RGB Controller max. LED strips：

*6

Remote (IR or RF)：

*0

Cooling Fan Support:

Front:

3x120mm (Tornado T12 ARGB)

Top:

3x120mm ,2x140mm (Fan optional)

Rear:

1x120mm (Tornado T12 ARGB)

Bottom:

*0

M/B Cover：

*0

PSU Cover：

*2x120mm (Fan optional)

Water Cooling Support

(Radiator Size):

Front:

120mm, 140mm,240mm,280mm,360mm

Top:

120mm, 140mm,240mm

Rear:

120mm

M/B Cover：

*0

Dust Cover:

Dust mesh on the top and bottom

Slots:

*5

Carton & Logo:

GAMEMAX

Dimensions:

Chassis:

(L)340*(W)200*(H)436mm

Full Case (Inc Fascia):

(L)386*(W)200*(H)449mm

Carton:

(L)486*(W)255*(H)433mm

Net Weight(kg):

6.3

Gross Weight(kg):

7.25

VGA Support:

up to 330mm

Vertical Graphics Support

No

CPU Cooler Height:

up to 155mm

SPS Length:

up to 160mm

Cable Management Depth:

19mm
