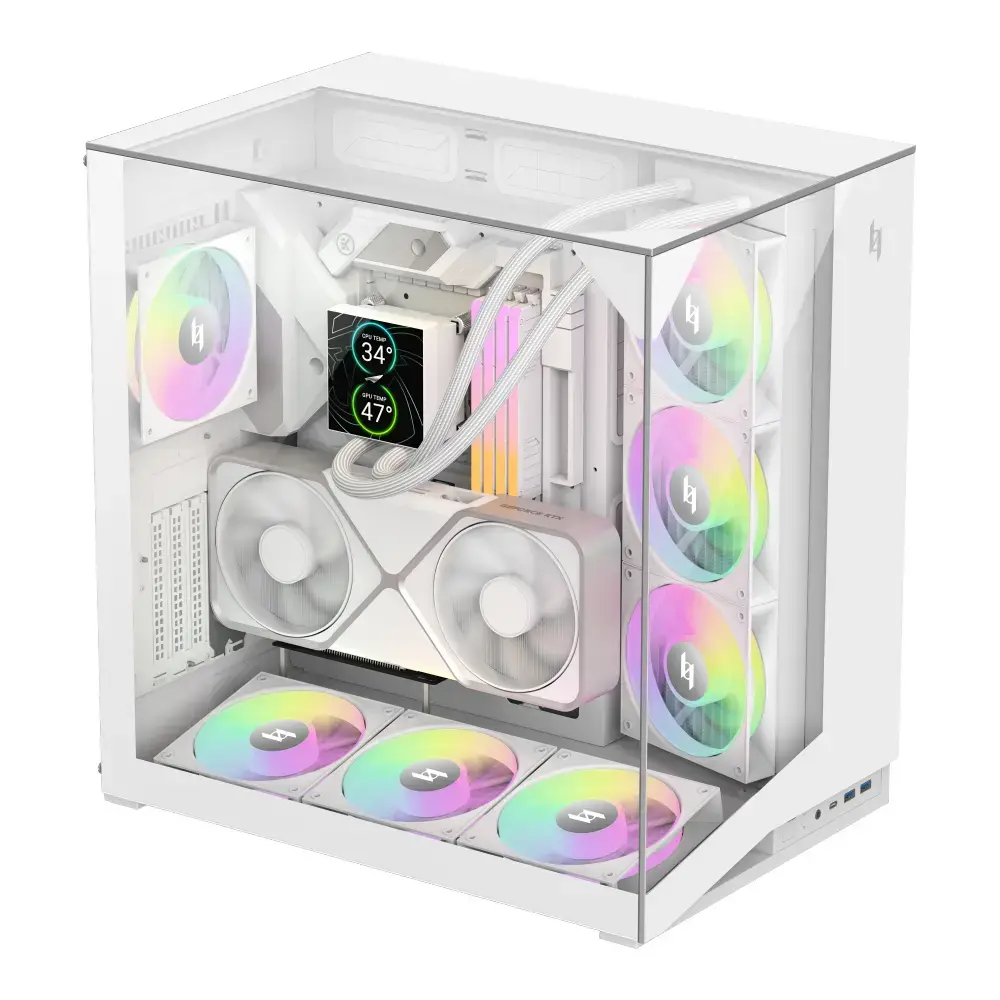

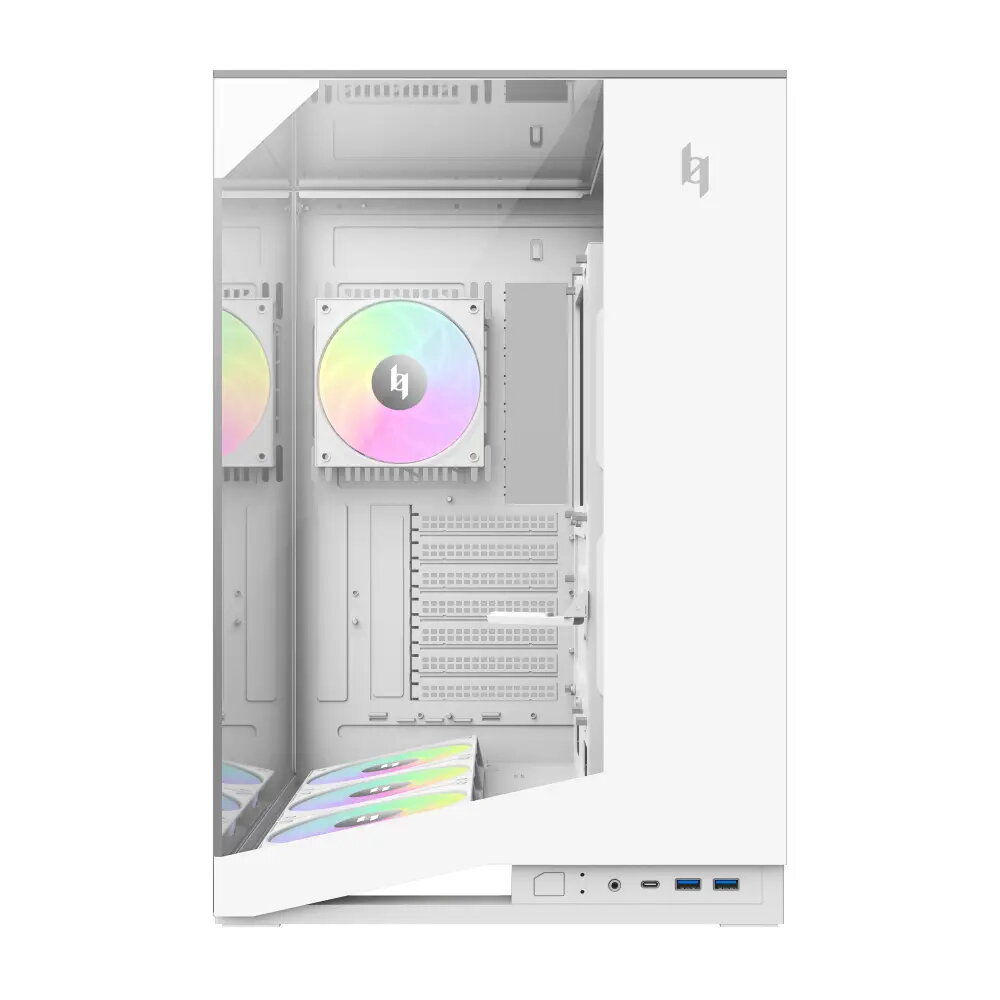

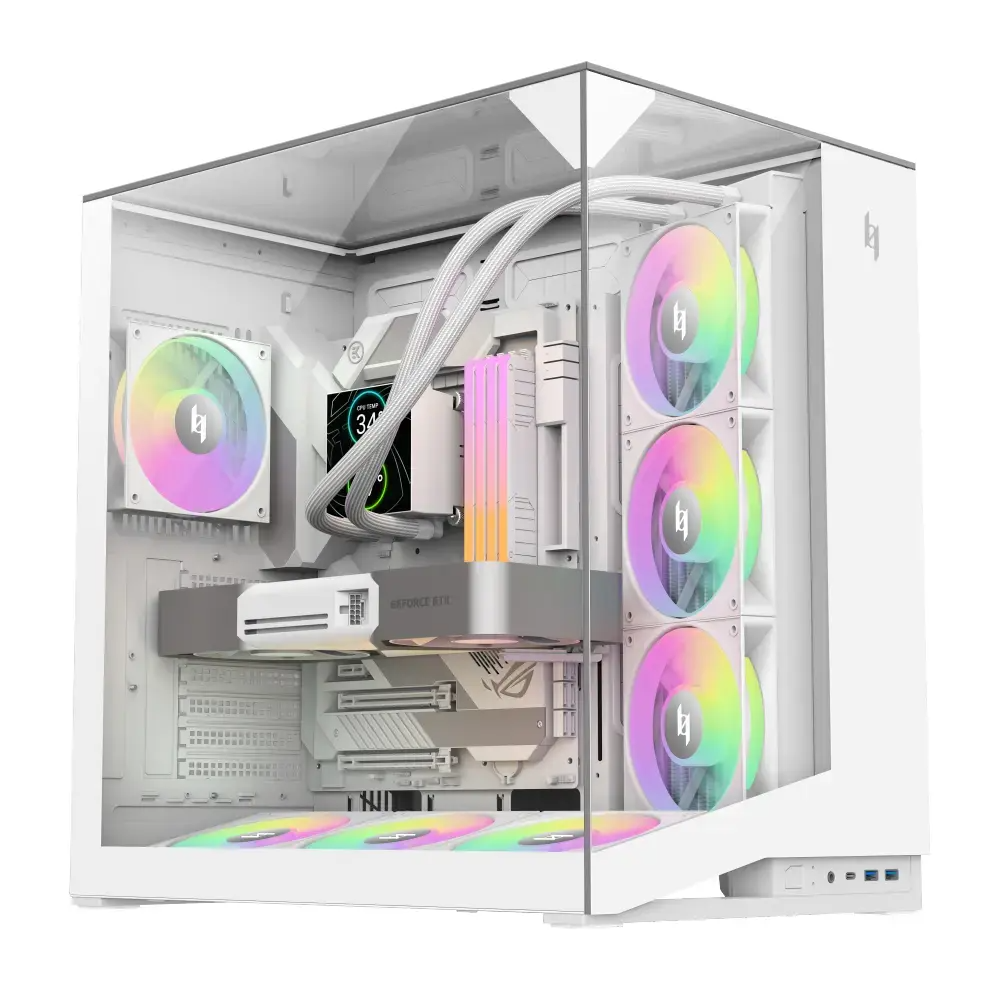

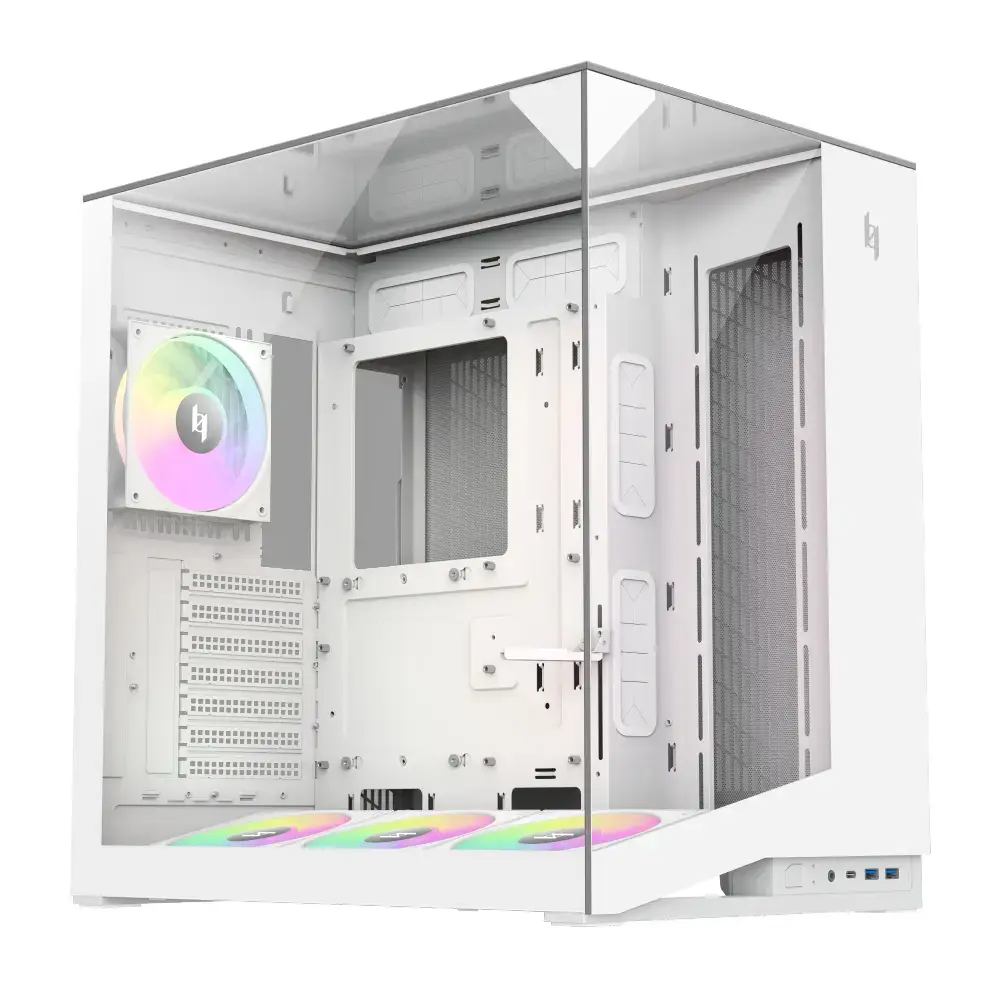

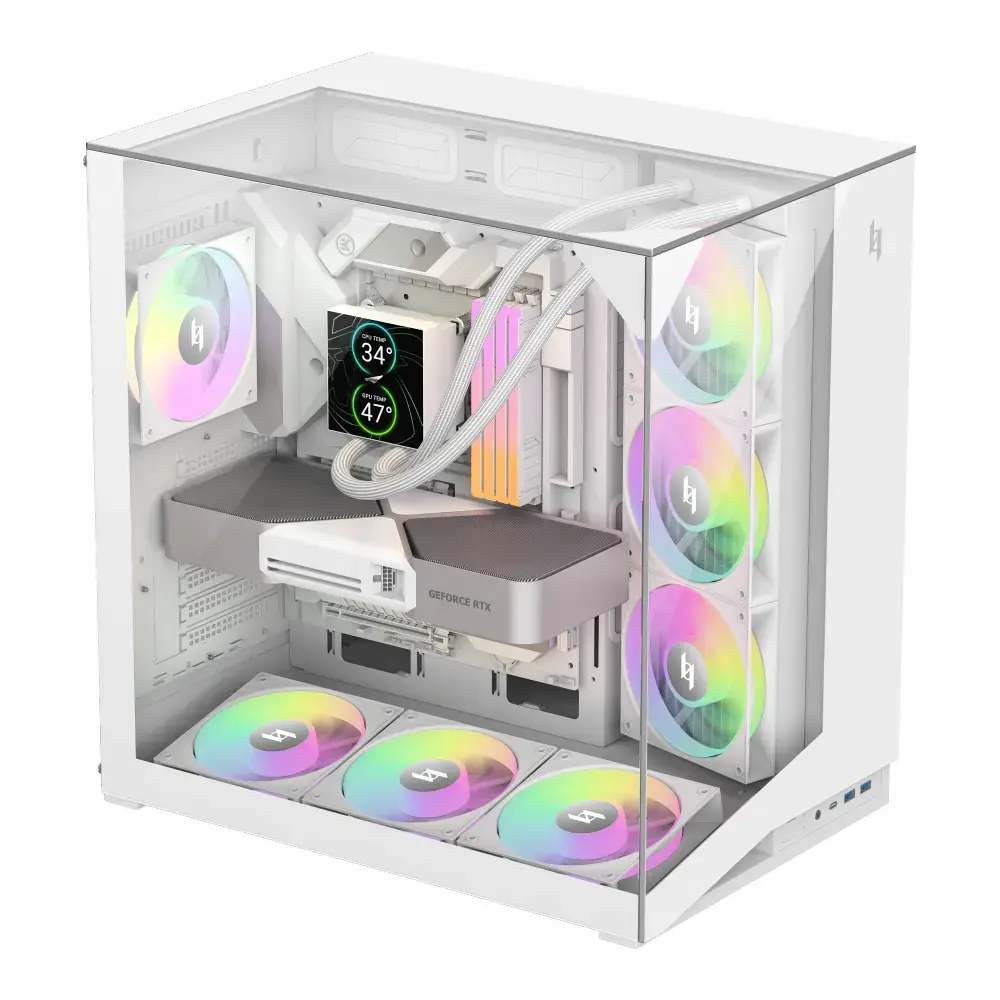

GAMEMAX C56 VC WHITE GAMING CASE

Form Factor:

Mid Tower

Chassis:

SPCC :0.6mm

PSU Form Factor

Bottom/ATX

M/B Form Factor:

ATX、M-ATX、ITX

Front Panel:

Tempered Glass

Top Panel:

Tempered Glass

Side Panel:

Left:

Tempered Glass

Right:

Metal cover

External Drive Bay(s):

5.25”(ODD):

*0

3.5”:

*0

Internal Drive Bay(s):

3.5" (HDD):

* 2

2.5" (SSD):

*2

2*3.5HDD+2*2.5SSD

I/O:

Buttons:

*1 (POWER)

USB 2.0 Port(s):

*0

USB3.2 Gen1 Type A  Port(s)

*2

USB3.2 Gen2 Type C  Port(s)

*1

Audio Support:

*1(Combo AUDIO)

Cooling Fan Support:

Front:

N/A

Top:

N/A

Rear:

1x120mm (NEX F120A)

Bottom:

3x120mm  (NEX F120RA )

M/B Cover：

*3x120mm （None）

Water Cooling Support

(Radiator Size):

Front:

N/A

Top:

N/A

Rear:

120mm

Bottom:

120mm, 240mm, 360mm

M/B Cover：

120mm, 240mm, 360mm

Dust Cover:

Dust mesh on the bottom/right side

Slots:

*7

Carton & Logo:

GAMEMAX

Dimensions:

Chassis:

(L)430*(W)300*(H)448mm

Full Case (Inc Fascia):

(L)446*(W)300*(H)448mm

Carton:

(L)504*(W)373*(H)527mm

Net Weight(kg):

Gross Weight(kg):

VGA Support:

up to 425mm

Vertical Graphics Support

Yes

CPU Cooler Height:

up to 182mm

SPS Length:

up to 220mm

Cable Management Depth:

95mm
