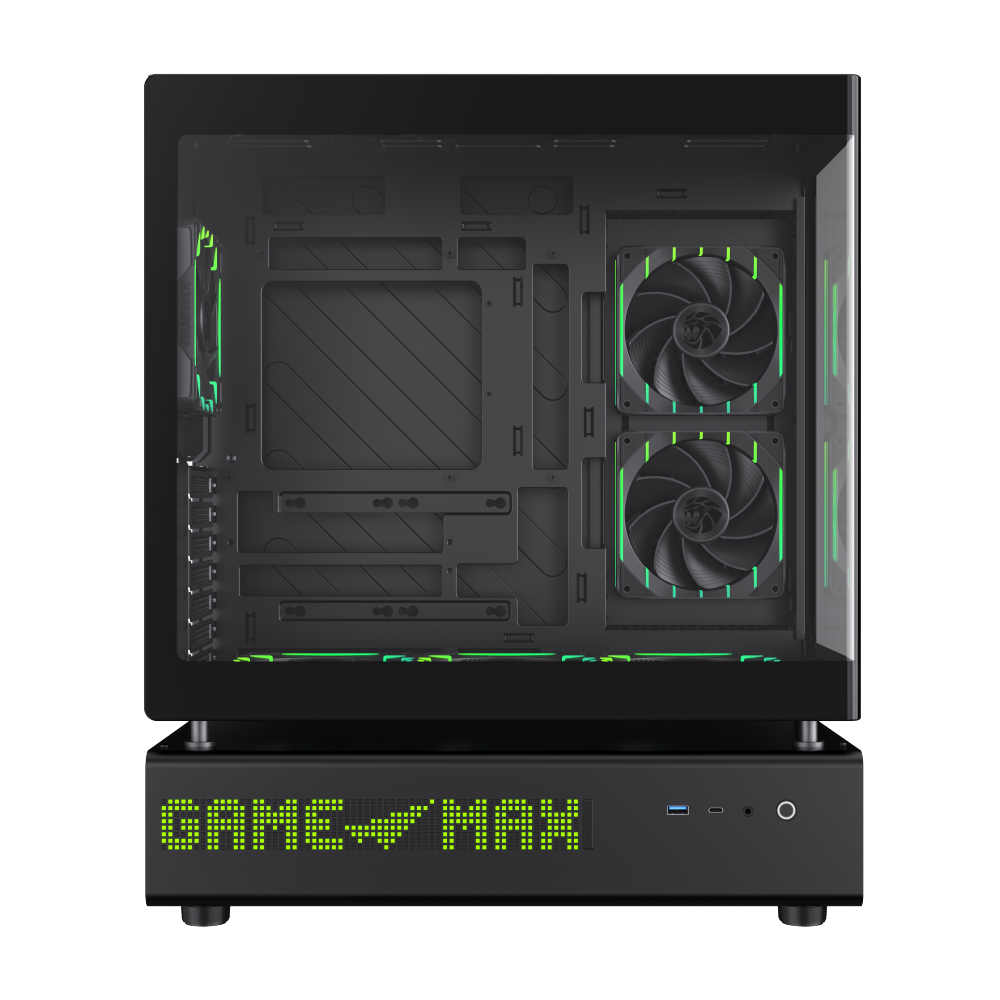

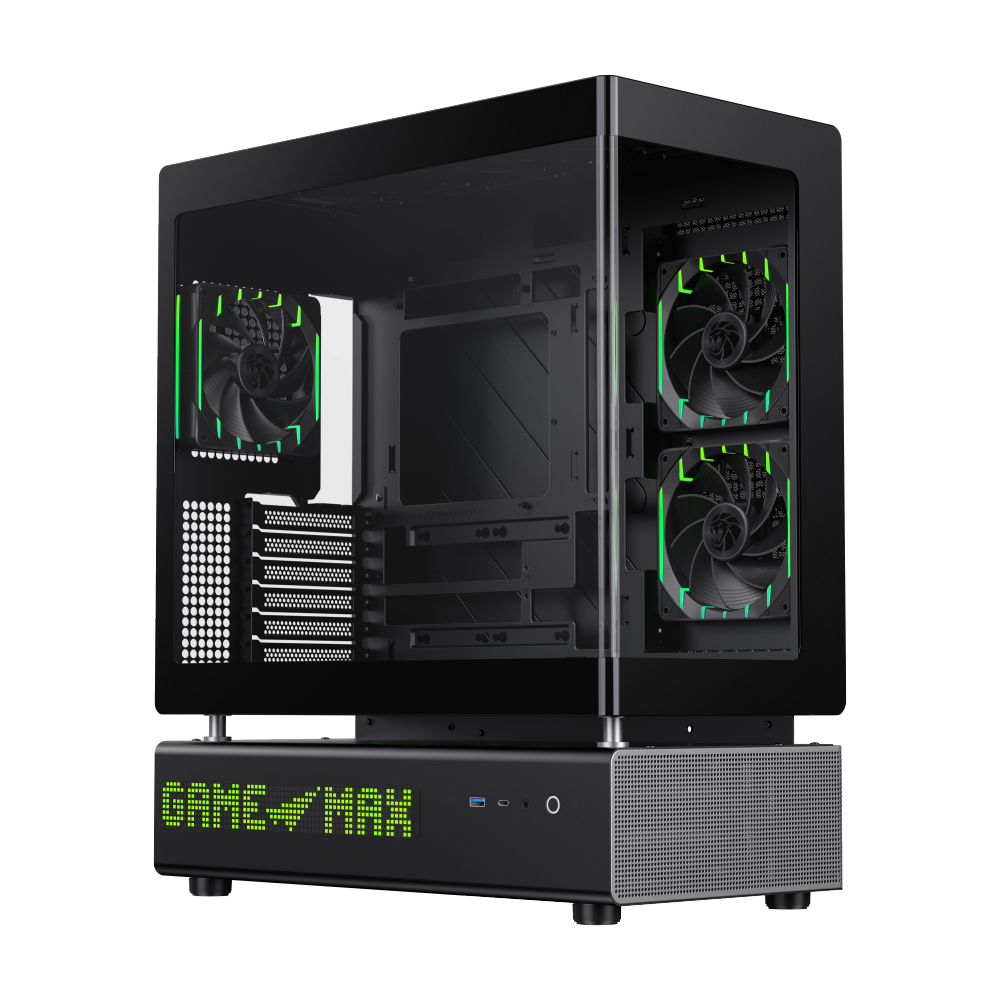

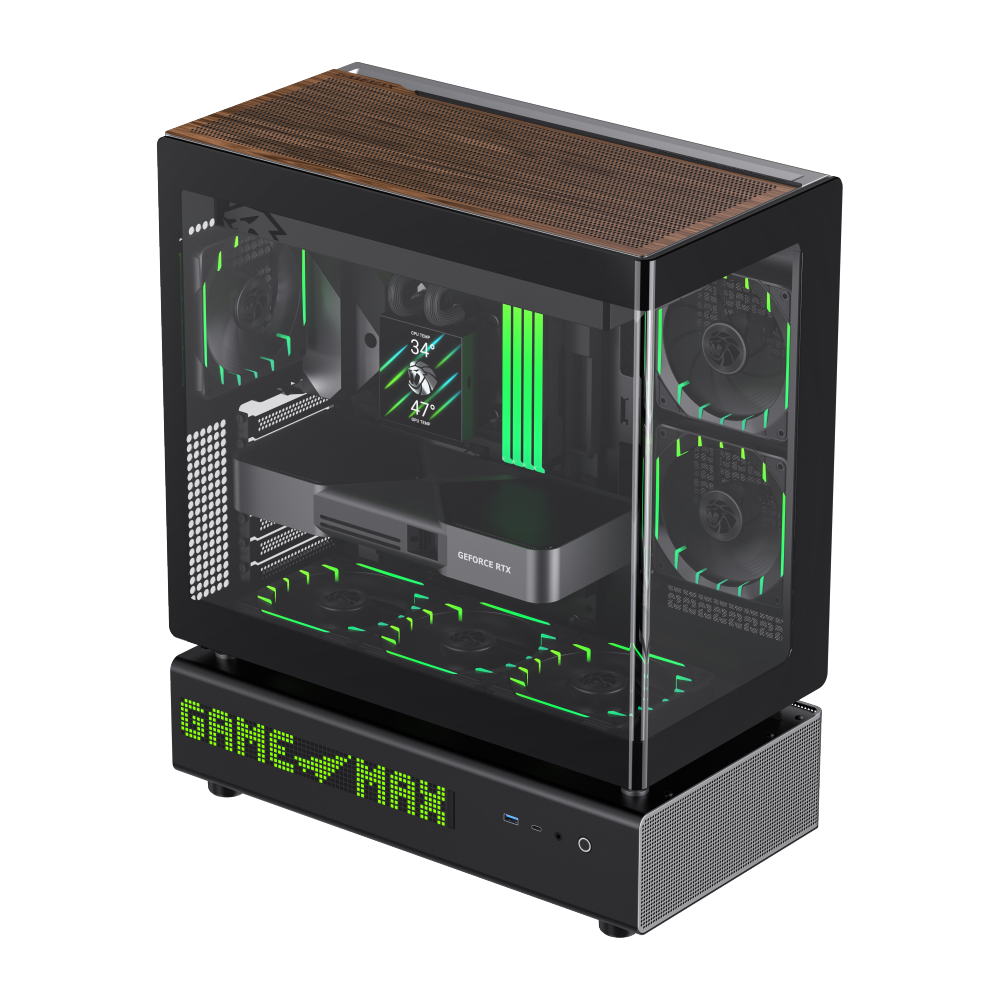

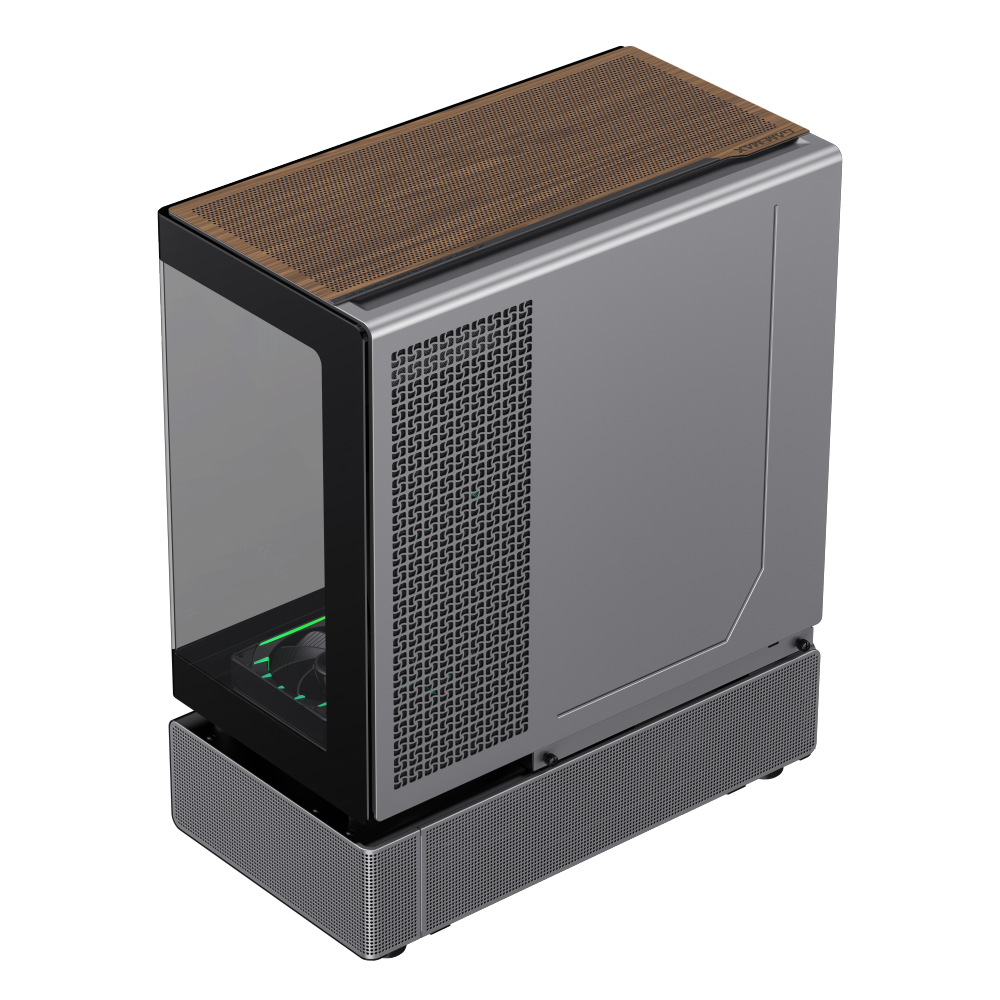

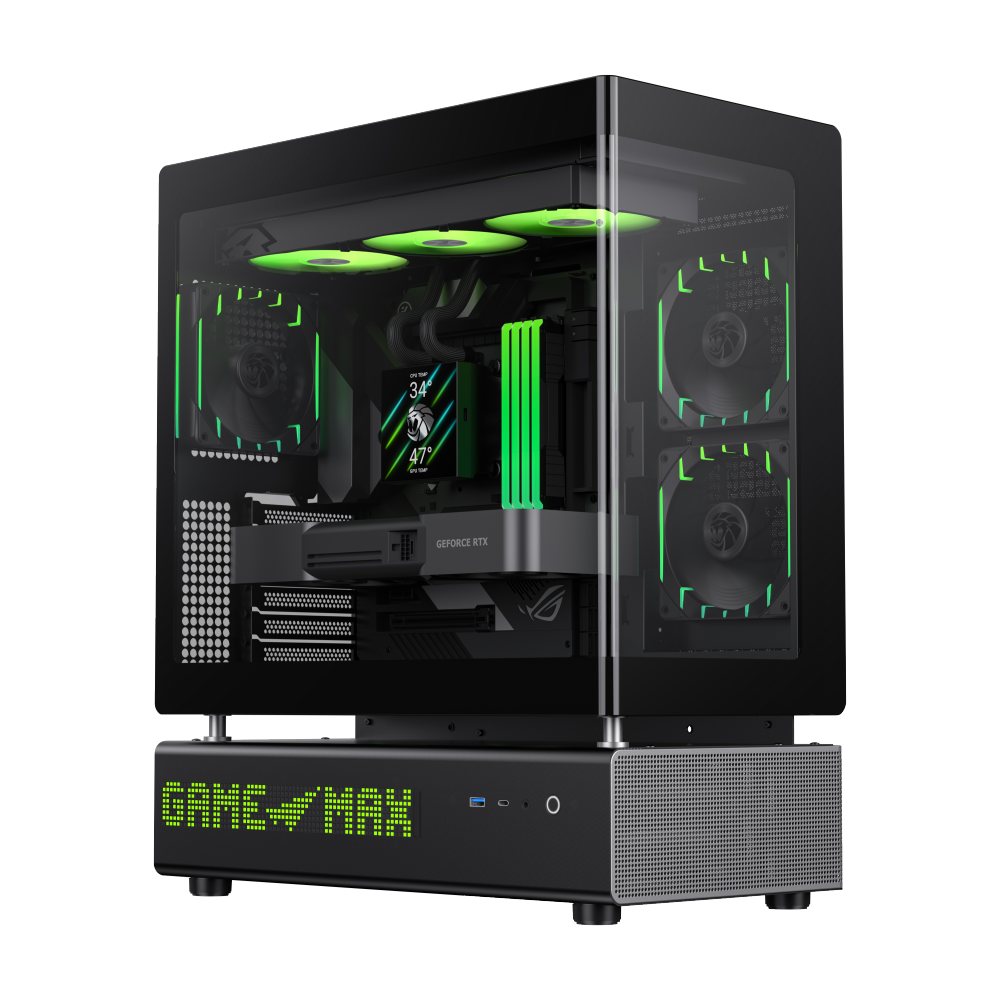

GAMEMAX N90 BG GAMING CASE BLACK

Chassis:

SPCC 0.8mm

PSU Form Factor:

Bottom/ATX

M/B Form Factor:

ATX、M-ATX、ITX (Support BTF)

Front Panel:

Curved Tempered Glass

Top Panel:

Mesh，wood grain decoration

Side Panel:

Left:

And the front panel curved tempered Glass

Right:

Metal

External Drive Bay(s):

5.25”(ODD):

*0

3.5”:

*0

Internal Drive Bay(s):

3.5" (HDD):

*2(Compatible 2.5SSD)

2.5" (SSD):

*2

I/O:

Buttons:

*1

USB 2.0 Port(s):

*0

USB 3.0 Port(s):

*1

Type C Port(s):

*1 (Gen2)

Audio Support:

*1 Combo Audio

RGB Controller:

*1 (V4.10-24AS CONTROLLER + Remote)

LED SW

*0

Controller Max Fans:

*10

Cooling Fan Support:

Front:

*0

Top:

3x120mm,2x140mm(Optional)

Rear:

1x120mm(Tornado T12 ARGB)

M/B:

2x120mm(Tornado T12 ARGB-R)

Bottom:

3x120mm(Tornado T12 ARGB-R)

Radiator Support:

Front:

N/A

Top:

120mm,140mm,240mm,280mm,360mm

M/B

120mm,240mm

Rear:

120mm

Dust Cover:

Bottom with dust filter, top mesh

Slots:

*7

Dimensions:

Chassis:

(L)439*(W)235*(H)511mm

Full Case (Inc Fascia):

(L)439*(W)240.5*(H)530mm

Carton:

(L)512*(W)310*(H)601mm

Net Weight(kg):

12.95

Gross Weight(kg):

14.55

VGA Support:

up to 415mm

CPU Cooler Height:

175mm

Cable Management Depth:

32mm

PSU:

Not included

Display screen

512 LEDs array
