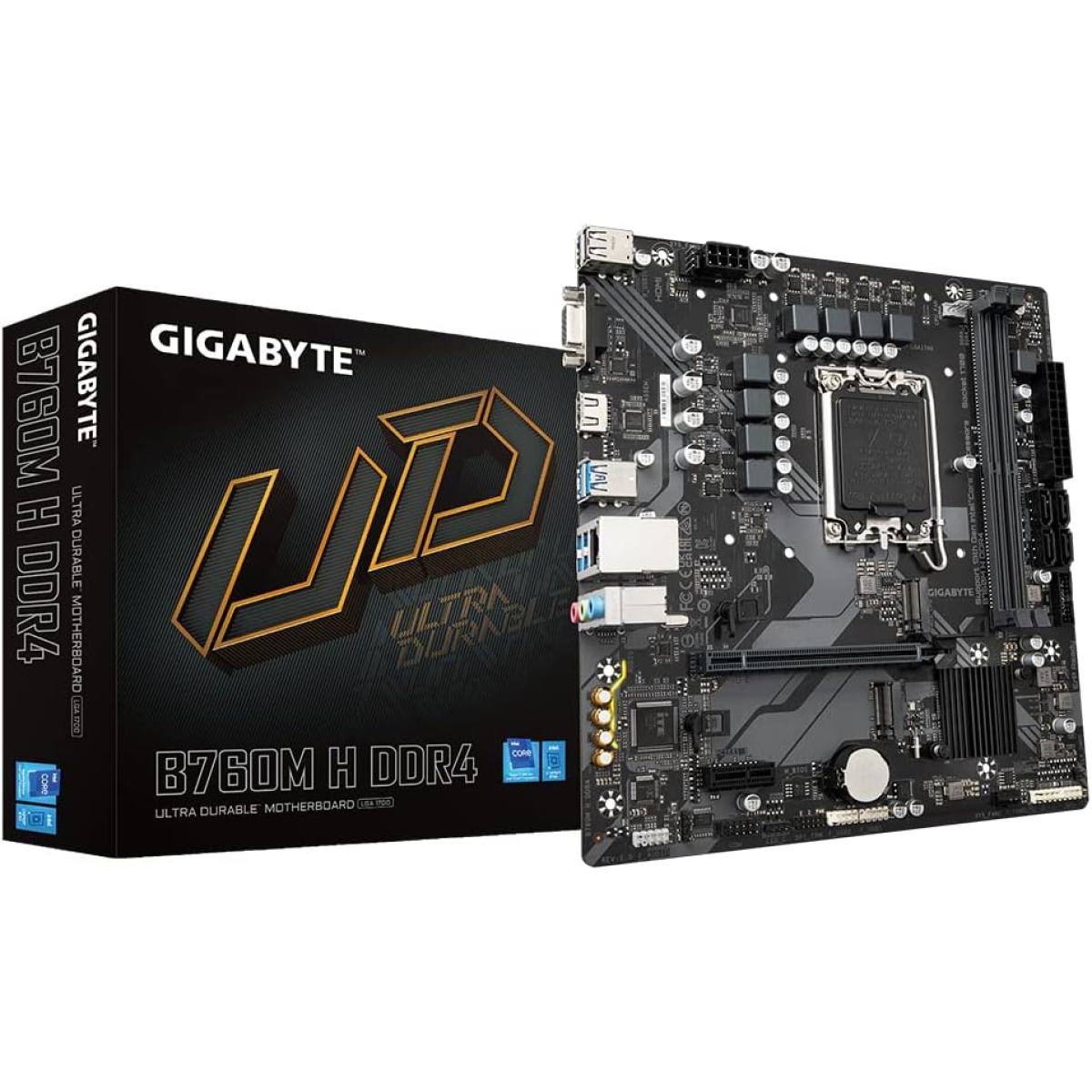

The GIGABYTE B760M H DDR4 Rev. 1.0 is a Micro ATX motherboard based on the Intel B760 Express chipset and LGA1700 socket. It supports 14th, 13th and 12th Generation Intel Core processors, along with compatible Pentium Gold and Celeron processors. Designed for DDR4-based Intel systems, the board provides two DDR4 DIMM slots, two PCIe 4.0 x4/x2 M.2 connectors, four SATA 6Gb/s connectors, a PCIe 4.0 x16 slot, Gigabit Ethernet and HDMI plus D-Sub display outputs. GIGABYTE also equips the board with a 6+1+1 phase Hybrid Digital VRM design, PCIe EZ-Latch and Smart Fan 6. Key Features Intel LGA1700 Platform: Supports 14th, 13th and 12th Generation Intel Core processors, plus compatible Pentium Gold and Celeron processors. DDR4 Memory: Two DIMM slots support dual-channel DDR4 memory up to 64 GB with XMP support. PCIe 4.0 Storage: Two M.2 connectors support PCIe 4.0 x4/x2 NVMe SSDs. PCIe 4.0 Expansion: One CPU-connected PCIe 4.0 x16 slot with GIGABYTE PCIe EZ-Latch. Gigabit Networking: Integrated Realtek GbE LAN supports 1 Gbps and 100 Mbps network connections. Smart Fan 6: Multiple temperature monitoring and fan-control features with PWM/DC fan support and Fan Stop functionality. Technical Specifications Component Specification GIGABYTE Model B760M H DDR4 (Rev. 1.0) Chipset Intel B760 Express Chipset CPU Socket LGA1700 CPU Support 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron processors Memory Type DDR4 Memory Slots 2 × DDR4 DIMM Maximum Memory 64 GB Memory Speeds DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s Memory Architecture Dual Channel XMP Support Yes Primary Expansion Slot 1 × PCIe 4.0 x16 Additional Expansion 1 × PCIe 3.0 x1 M.2 Storage 2 × M.2 Socket 3, M key, Type 2280, PCIe 4.0 x4/x2 SSD support SATA 4 × SATA 6Gb/s RAID RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices LAN Realtek GbE LAN, 1 Gbps / 100 Mbps Audio Realtek High Definition Audio, 2 / 4 / 5.1 / 7.1-channel Display Outputs 1 × HDMI, 1 × D-Sub HDMI Maximum Resolution 4096 × 2160 @ 60 Hz Rear USB 4 × USB 3.2 Gen 1, 2 × USB 2.0/1.1 Rear Network 1 × RJ-45 Rear Audio 3 × audio jacks Form Factor Micro ATX, 23.0 × 21.5 cm Compatibility & Important Information This is the DDR4 Rev. 1.0 version of the B760M H motherboard and uses DDR4 memory, not DDR5. The LGA1700 socket supports compatible 14th, 13th and 12th Generation Intel Core processors, as well as supported Pentium Gold and Celeron processors. Check GIGABYTE's CPU Support List for the specific processor before installation. The board has two DDR4 DIMM sockets with a maximum officially specified capacity of 64 GB, using up to 32 GB per DIMM. Both M.2 connectors support Type 2280 PCIe 4.0 x4/x2 SSDs. The PCIe x16 slot supports PCIe 4.0 at x16 and can support a graphics card or an NVMe SSD. HDMI and D-Sub onboard display functionality depends on the graphics capabilities of the installed processor. ECC unbuffered memory modules operate in non-ECC mode on this motherboard. Motherboard Specifications CPU Support 12 & 13th Generation Intel CPU CPU Socket Type LGA 1700 Chipset INTEL B760 Form Factor ATX Memory Type DDR4 Memory Speed 4800 MHz Maximum Memory 64 GB Memory Slots 2 Slots M.2 Slots Yes Wireless LAN Warranty Warranty 1 years Please to review Q: Which processors does the GIGABYTE B760M H DDR4 Rev. 1.0 support? A: It uses the LGA1700 socket and supports compatible 14th, 13th and 12th Generation Intel Core processors, as well as supported Pentium Gold and Celeron processors. The specific processor should be checked against GIGABYTE's CPU Support List. Q: Does the B760M H DDR4 Rev. 1.0 use DDR4 or DDR5 memory? A: This exa model uses DDR4 memory. It has two DDR4 DIMM sockets and supports up to 64 GB of system memory. Q: Does this motherboard support XMP memory? A: Yes. GIGABYTE officially lists support for Extreme Memory Profile (XMP) memory modules. Memory compatibility depends on the installed module and validated memory support. Q: How many M.2 SSDs can be installed? A: The motherboard provides two M.2 connectors for Type 2280 PCIe 4.0 x4/x2 SSDs. Q: Does it have a PCIe 4.0 x16 slot for a graphics card? A: Yes. It provides one CPU-connected PCIe x16 slot supporting PCIe 4.0 and operating at x16. Q: Does the motherboard include Wi-Fi? A: The official specification lists Realtek Gigabit Ethernet for network connectivity and does not list integrated wireless networking. Q: Can I use the motherboard's HDMI output? A: The motherboard provides HDMI and D-Sub display outputs. Their functionality and graphics specifications depend on the graphics support of the installed processor. Q: What size PC case does this motherboard require? A: It uses the Micro ATX form factor and measures 23.0 × 21.5 cm.
