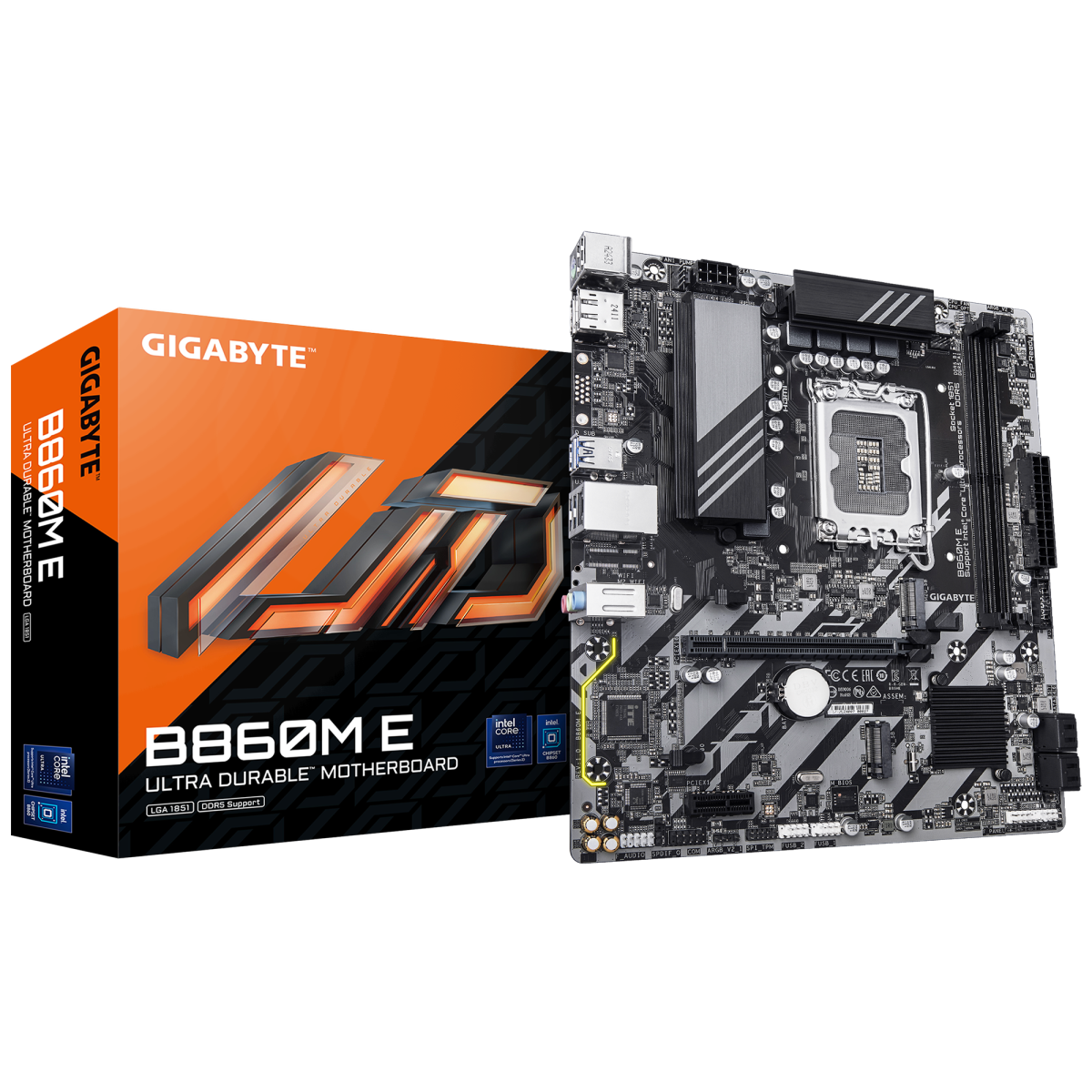

Gigabyte B860m E Lga 1851 M Atx Motherboard, Intel B860 Chipset, 2x Dimm Ddr5 Slots, Up To 128gb Max Memory, 1x Pcie 5.0 X16, 2x M.2 Slots

Gigabyte B860m E Micro Atx Motherboard ( Intel Lga1851 Socket, Support Intel Core Ultra Cpu, 2 X Ddr5 Ram Slots, Max 128 Gb Ram ) Cpu Lga1851 Socket: Support For Intel Core Ultra Processors (go To Gigabyte’s Website For The Latest Cpu Support List.) L3 Cache Varies With Cpu Chipset Intel B860 Express Chipset Memory Support For Ddr5 8800(o.c) / 8600(o.c) / 8400(o.c) / 8266(o.c) / 8200(o.c) / 8000(o.c) / 7950(o.c) / 7900(o.c) / 7800(o.c) / 7600(o.c.) / 7400(o.c.) / 7200(o.c.) / 7000(o.c.) / 6800(o.c.) / 6600(o.c.) /6400/5600 Mt/s Memory Modules 2 X Ddr5 Dimm Sockets Supporting Up To 128 Gb (64 Gb Single Dimm Capacity)of System Memory Dual Channel Memory Architeure Support For Ecc Un Buffered Dimm 1rx8/2rx8 Memory Modules (operate In Non Ecc Mode) Support For Non Ecc Un Buffered Dimm 1rx8/2rx8/1rx16 Memory Modules Support For Extreme Memory Profile (xmp) Memory Modules (the Cpu And Memory Configuration May Affe The Supported Memory Types, Datarate (speed), And Number Of Dram Modules, Please Refer To “memory Support List” On Gigabyte’s Website For More Information.) Onboard Graphics Integrated Graphics Processor Intel Hd Graphics Support: – 1 X Hdmi Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz * Support For Hdmi 2.1 Version And Hdcp 2.3. – 1 X Displayport, Supporting A Maximum Resolution Of 3840×2160@144 Hzj * Support For Displayport 2.1 Version. (graphics Specifications May Vary Depending On Cpu Support.) Audio Realtek Audio Codec High Definition Audio 2/4/5.1/7.1 Channel * You Can Change The Funionality Of An Audio Jack Using The Audio Software. To Configure 7.1 Channel Audio, Access The Audio Software For Audio Settings. Support For S/pdif Out Lan Realtek Gbe Lan Chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots Cpu: – 1 X Pci Express X16 Slot, Supporting Pcie 4.0 And Running At X16 (pciex16) * The Pciex16 Slot Can Only Support A Graphics Card Or An Nvme Ssd. Chipset: – 1 X Pci Express X1 Slot, Supporting Pcie 3.0 And Running At X1 (pciex1) Storage Interface Chipset: – 2 X M.2 Conneor (socket 3, M Key, Type 2280 Pcie 4.0 X4/x2 Ssd Support) – 4 X Sata 6gb/s Conneors Raid 0, Raid 1, Raid 5, And Raid 10 Support For Sata Storage Devices Usb Chipset: – 6 X Usb 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal Usb Header) – 2 X Usb 2.0/1.1 Ports On The Back Panel Chipset+usb 2.0 Hub: – 4 X Usb 2.0/1.1 Ports Available Through The Internal Usb Headers Internal I/o Conneors 1 X 24 Pin Atx Main Power Conneor 1 X 8 Pin Atx 12v Power Conneors 1 X Cpu Fan Header 1 X Cpu Fan/water Cooling Pump Header 1 X System Fan/water Cooling Pump Header 2 X Addressable Rgb Gen2 Led Strip Headers 2 X M.2 Socket 3 Conneors 4 X Sata 6gb/s Conneors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/pdif Out Header 1 X Usb 3.2 Gen 1 Header 2 X Usb 2.0/1.1 Headers 1 X Trusted Platform Module Header (for The Gc Tpm2.0 Spi V2 Module Only) 1 X Serial Port Header J 1 X Clear Cmos Jumper Back Panel Conneors 1 X Ps/2 Keyboard/mouse Port 1 X Hdmi Port* 1 X Displayport* 4 X Usb 3.2 Gen 1 Ports 2 X Usb 2.0/1.1 Ports 1 X Rj 45 Port 3 X Audio Jacks * Aual Support May Vary By Cpu. I/o Controller Ite I/o Controller Chip H/w Monitoring Voltage Deteion Temperature Deteion Fan Speed Deteion Water Cooling Flow Rate Deteion Fan Fail Warning Fan Speed Control * Whether The Fan (pump) Speed Control Funion Is Supported Will Depend On The Fan (pump) You Install. Bios 1 X 256 Mbit Flash Use Of Licensed Ami Uefi Bios Pnp 1.0a, Dmi 2.7, Wfm 2.0, Sm Bios 2.7, Acpi 5.0 Unique Features Support For Gigabyte Control Center (gcc) * Available Applications In Gcc May Vary By Motherboard Model. Supported Funions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q Flash Support For Smart Backup Bundled Software Norton Internet Security (oem Version) Lan Bandwidth Management Software Operating System Support For Windows 11 64 Bit Support For Windows 10 64 Bit * The Intel Npu Driver Is Only Supported On Windows 11. Form Faor Micro Atx Form Faor; 24.4cm X 21.5cm Motherboard Specifications Cpu Support Intel® Core™ Ultra Series 2 Cpu Cpu Socket Type Lga 1851 Chipset Intel B860 Form Faor Micro Atx Memory Type Ddr5 Memory Speed 9200 Mhz Maximum Memory 128 Gb Memory Slots 2 Slots M.2 Slots Yes Warranty Warranty 1 Years Your Name Your Review Note: Html Is Not Translated! Rating Bad Good Continue
