| Component | Specification Details | CPU-Dependent Limitations |
|---|---|---|

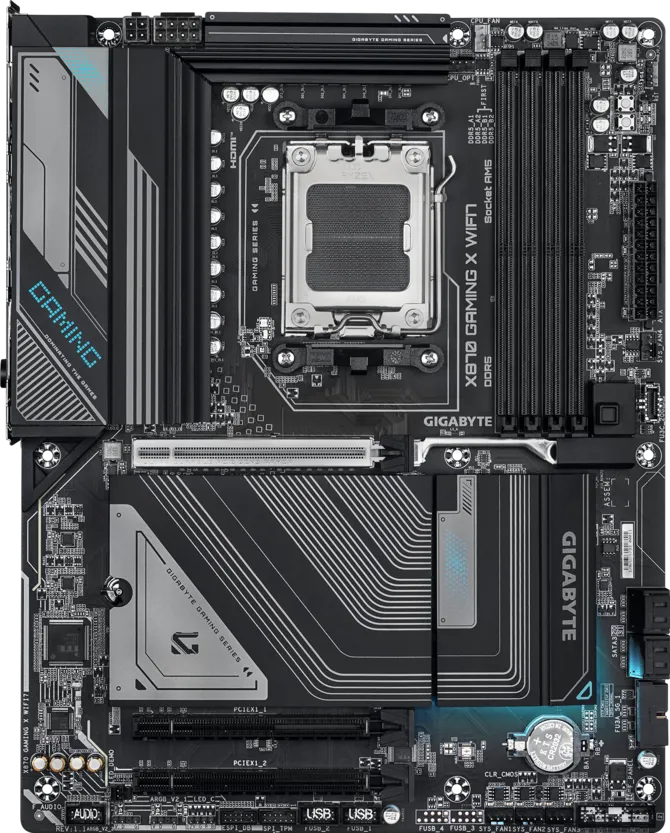

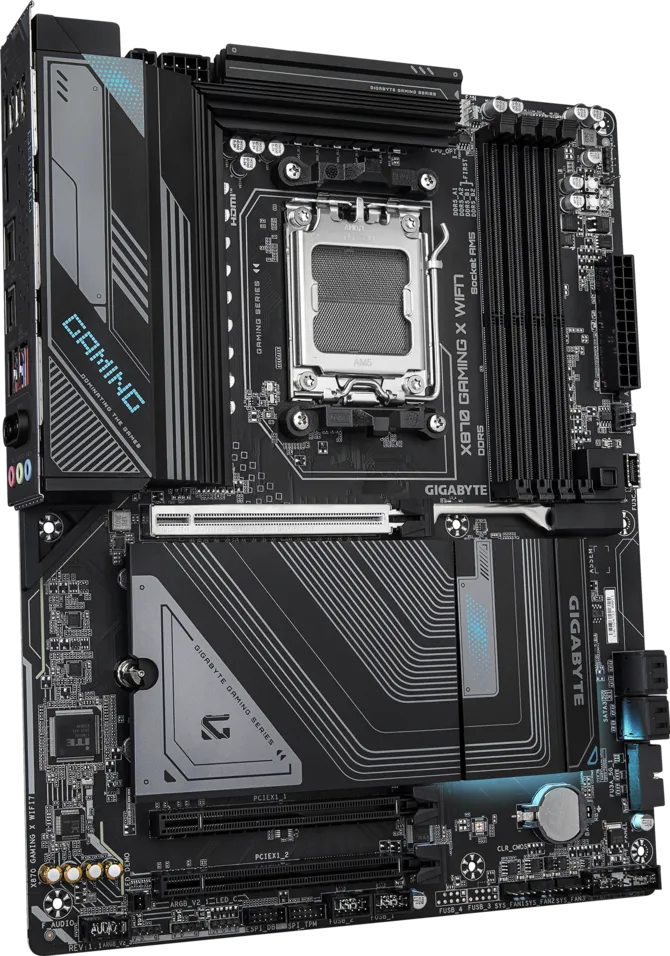

| CPU Socket | AMD Socket AM5 | Natively supports Ryzen 7000, 8000, and 9000 series. |
| Chipset | AMD X870 | Provides base system logic and high-speed PCIe lanes. |
| Graphics Slot | 1 x PCIe x16 slot |
Ryzen 9000/7000: Full PCIe 5.0 x16 speed. Ryzen 8000 (Phoenix 1): PCIe 4.0 x8 speed. Ryzen 8000 (Phoenix 2): PCIe 4.0 x4 speed. |
| Expansion Slots | 2 x PCIe 3.0 x1 slots | Driven by the chipset; no impact from CPU choice. |
| Component | Feature | Capacity / Speed / Rules |
|---|---|---|
| DDR5 RAM | Slots & Capacity | 4 x DIMM slots supporting up to256 GB(64 GB per slot). |
| Architecture | Dual-channel, non-ECC unbuffered modules. | |
| Speeds | Up to8200 MT/s (OC); native support down to 4400 MT/s. | |
| Profiles | Supports bothAMD EXPO™and Intel XMP overclocking. | |
| M.2 NVMe SSD | M2A_CPU (Slot 1) | Runs via CPU. PCIe 5.0 (Ryzen 9000/7000) or PCIe 4.0 (Ryzen 8000). |
| M2B_SB (Slot 2) | Runs via Chipset. PCIe 4.0 x4 speed (Drops to x2 if Slot 3 is filled). | |
| M2C_SB (Slot 3) | Runs via Chipset. PCIe 4.0 x2 speed. | |
| SATA & RAID | SATA Connectors | 4 x SATA 6Gb/s ports for traditional hard drives/SSDs. |
| RAID Support |
NVMe:RAID 0, 1, 5, 10 (RAID 5 requires Ryzen 9000). SATA:RAID 0, 1, 10. |
| Component | Type | Maximum Capabilities & Conditions |
|---|---|---|

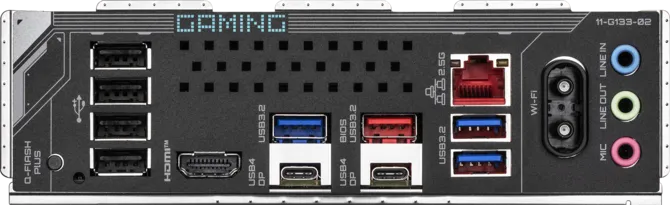

| USB4® Type-C | 2 x Rear Ports | Driven by ASMedia controller. 40Gbps, supports DisplayPort 4K @ 240Hz. |
| HDMI Port | 1 x Rear Port | Native HDMI 2.1 version; supports resolutions up to 4K @ 60Hz. |
| Wired LAN | 1 x RJ-45 Port | Realtek 2.5 Gbps High-Speed Ethernet. |
| Wireless | Wi-Fi 7 + BT 5.4 | MediaTek MT7925 or Realtek RTL8922AE (depends on board revision). |
| OS Note | Requires Windows 11.No drivers are provided for Windows 10. | |
| Audio | Realtek Codec | High Definition Audio (2/4/5.1/7.1-channel configurations). |
| Category | Component | Details |
|---|---|---|
| Power Inputs | Motherboard / CPU | 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V. |
| Cooling Headers | Fan & Pumps | 1 x CPU fan, 1 x CPU fan/water cooling pump, 4 x system fans. |
| RGB Lighting | LED Strip Headers | 3 x Addressable RGB Gen2 headers, 1 x Standard RGB header. |
| Front USB | Case Connections | 1 x USB Type-C (3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0 headers. |
| Onboard Tools | Physical Buttons | Built-inPowerandResetbuttons, Clear CMOS, and Reset jumpers. |
| Rear Button | BIOS Flash | Q-Flash Plusbutton (updates BIOS via USB without CPU/RAM). |
| Form Factor | Physical Size | Standard ATX Form Factor (30.5 cm x 24.4 cm). |
