| Component Category | Feature / Specification Detail |
|---|---|
| Processor Support | AMD Socket AM5 (Ryzen™ 9000, 8000, and 7000 Series Processors) |
| Core Chipset | AMD X870E |
| System Memory | 4 x DDR5 DIMM slots (Dual Channel, up to 256 GB max capacity) |
| Memory Speeds | Supports 4800 to 5200 MT/s natively; up to 8200 MT/s via AMD EXPO™ / XMP profiles |
| Primary PCIe Slot | 1 x PCIe x16 (Runs at 5.0 x16 with Ryzen 9000/7000; drops to 4.0 x8/x4 with Ryzen 8000) |
| Expansion PCIe Slots | 1 x PCIe 4.0 x4 (PCIEX4_1), 1 x PCIe 3.0 x4 (PCIEX4_2) via Chipset |
| M.2 NVMe Slots | 3 x PCIe 5.0 x4/x2 (CPU managed), 1 x PCIe 4.0 x4/x2 (Chipset managed) |
| SATA Ports & RAID | 4 x SATA 6Gb/s; NVMe RAID 0/1/5/10 (RAID 5 requires Ryzen 9000), SATA RAID 0/1/10 |
| Rear Video Ports | 2 x USB4® Type-C (Up to 3840x2160 @ 240Hz), 1 x HDMI 2.1 (Up to 4096x2160 @ 60Hz) |
| Internal Video Ports | 1 x Front Panel HDMI port (Up to 1920x1080 @ 30Hz, HDMI 1.4 version) |
| Audio Subsystem | Realtek® ALC1220 HD Codec (2/4/5.1/7.1-channel, S/PDIF Out, DSD back panel support) |
| Wired Network (LAN) | Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless & Bluetooth | Wi-Fi 7 (11be 160MHz) & Bluetooth 5.4 (MediaTek MT7925 or Realtek RTL8922AE depending on PCB) |

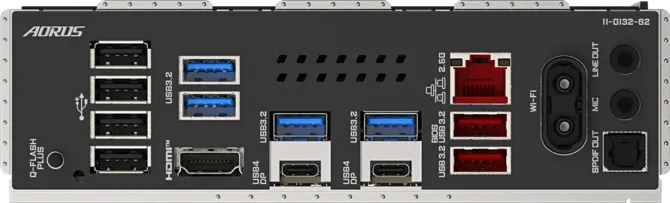

| Rear USB Ports | 2 x USB4® Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Internal USB Headers | 1 x USB Type-C (3.2 Gen 2x2), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Onboard Utilities | Physical Power & Reset buttons, Clear CMOS & Reset jumpers, Q-Flash Plus button |
| Cooling & Headers | 1 x CPU fan, 1 x CPU fan/pump, 3 x System fan, 1 x System fan/pump, 4 x RGB/ARGB LED headers |
| Form Factor & OS | ATX Form Factor (30.5cm x 24.4cm); Requires Windows 11 64-bit |
