| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socketIntel® Core™ Ultra ProcessorsL3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | 4 x DDR5 DIMM slots (Dual Channel)Up to 256 GB total system memory (64 GB max per DIMM)Speeds: 6400 down to 5600 MT/s (Native); up to 9200(O.C.) MT/sSupports XMP, CUDIMM, and non-ECC/ECC Un-buffered modules (ECC runs in non-ECC mode) |
| Onboard Graphics | 1 x Intel® Thunderbolt™ 4 / USB4® Type-C (Up to 5120x2880@60 Hz or 3840x2160@240 Hz)1 x DisplayPort 2.1 (Up to 4096x2304@60 Hz), HDCP 2.31 x Front HDMI 1.4 port (Up to 1920x1080@30 Hz)Supports up to triple-display setups concurrently |
| Audio | Realtek® ALC1220 CODEC (High Definition Audio)2 / 4 / 5.1 / 7.1-channel supportOptical S/PDIF Out and DSD audio support on back panel line out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless / Bluetooth | PCB rev. 1.0: MediaTek Wi-Fi 7 MT7925PCB rev. 1.1: Realtek Wi-Fi 7 RTL8922AESpecs: 2.4/5/6 GHz bands, 11be 160MHz standard, Bluetooth 5.4 |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (runs at x16)Chipset: 2 x PCIe 4.0 x16 slots (run at x4) |
| Storage Interface | CPU: 1 x M.2 (PCIe 5.0 x4/x2), 1 x M.2 (PCIe 4.0 x4/x2)Chipset: 1 x M.2 (PCIe 4.0 x4/x2), 1 x M.2 (SATA & PCIe 4.0 x4)4 x SATA 6Gb/s connectorsRAID 0, 1, 5, 10 supported for both NVMe and SATA drives |
| External USB (Back Panel) | 1 x Intel® Thunderbolt™ 4 (USB Type-C®)2 x USB 3.2 Gen 2 Type-A (Red)3 x USB 3.2 Gen 1 Type-A4 x USB 2.0/1.1 |
| Internal USB Headers | 1 x USB Type-C® (USB 3.2 Gen 2 support)1 x USB 3.2 Gen 1 header (Supports 2 ports)2 x USB 2.0/1.1 headers (Supports 4 ports) |
| Internal I/O Connectors | Power: 1 x 24-pin ATX, 2 x 8-pin ATX 12VCooling: 1 x CPU fan, 1 x CPU fan/pump, 3 x system fan, 1 x system fan/pump headersLighting: 3 x Addressable RGB Gen2 LED, 1 x RGB LED strip headersButtons: Power, Reset, Q-Flash PlusOther: Front panel audio, TPM header (GC-TPM2.0 SPI V2 only), 1 x Internal HDMI port |

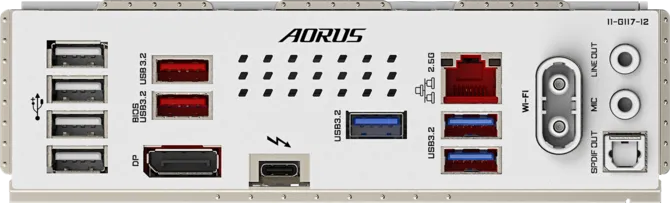

| Back Panel Connectors | 1 x Thunderbolt™ 4, 1 x DisplayPort, 1 x RJ-45 LAN, 1 x Optical S/PDIF Out2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.02 x Antenna connectors (2T2R), 2 x Audio jacks |
| Hardware Monitoring | Voltage, temperature, fan speed, and water cooling flow rate detectionFan fail warning and fan speed control |
| BIOS & Software | 256 Mbit flash, licensed AMI UEFI BIOSGIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart BackupBundled: Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit only(Wi-Fi 7 requires Windows 11 SV3; no Windows 10 drivers) |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
