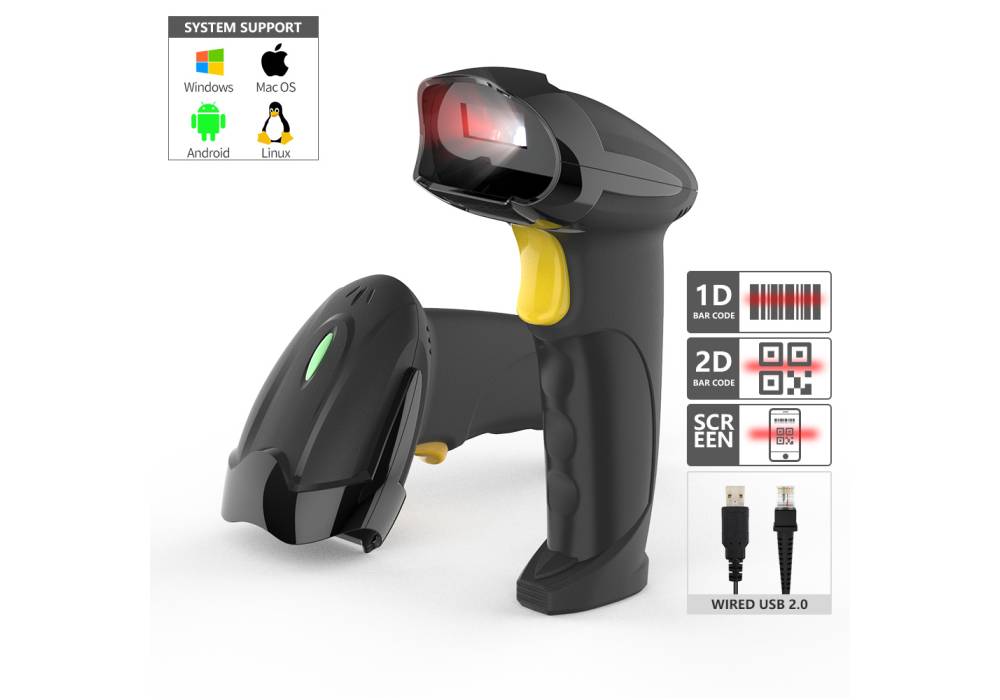

The GTCODESTAR X‑760H is a high‑performance wired barcode scanner designed for supermarkets, retail checkout, and payment systems. Equipped with a flat CMOS sensor (640×480), it supports 1D and 2D barcode decoding, including QR, Data Matrix, PDF417, Micro QR, and HanXin codes.
Its image‑based scanning mode with red LED aiming + white LED illumination ensures accurate reads even in challenging lighting conditions (0–100,000 LUX). With a motion tolerance of 20–25 cm/sec, the scanner delivers fast and reliable performance for dynamic scanning environments.
Built with ABS+PC+TPE materials, the X‑760H is lightweight (108g) yet durable, featuring IP52 protection, 1.5m drop resistance, and ESD protection up to 15KV. It supports USB and COM interfaces, is compatible with Windows, Linux, Android, and macOS, and offers multilingual support with virtual keyboard input.
| Specification | Details |
|---|---|
| Model | X‑760H |
| Type | Wired 2D Barcode Scanner |
| Sensor | CMOS, 640×480 |
| Interface | USB, COM (RS232 optional) |
| Supported OS | Windows XP/7/8/10, Linux, Android, macOS |
| Languages | American, Czech, French, German, Hungarian, Italian, Japanese, Spanish, Turkish (F/Q) |
| Light Source | Red LED aiming + White LED illumination |
| Resolution | ≥4mil |
| Motion Tolerance | Code128: 20 cm/sec; QR: 25 cm/sec |
| Reading Distance | 10–600 mm |
| Prompt Modes | Buzzer + LED indicator |
| Scanning Angles | Roll 360°, Pitch 45°, Yaw 45° |
| Decoding Capability | 1D & 2D barcodes (QR, Data Matrix, PDF417, Micro QR, HanXin) |
| Dimensions | 180.1 × 88.7 × 66.3 mm |
| Weight | 108g ±5g |
| Material | ABS+PC+TPE |
| Button Lifespan | >100,000 presses |
| Power Supply | DC 5V ±5% |
| Power Consumption | 0.85W working, 0.55W standby, 1.05W max |
| Current | 168mA working, 109mA standby, 200mA max |
| Environment | Operating: 0–50°C; Storage: 0–50°C |
| Humidity | 20–85% (non‑condensing) |
| Protection | IP52, 1.5m drop resistance, 15KV ESD |
| Certifications | EMC EN55032/55035, FCC Part 15 Class B, RoHS |
