Hikvision network cable for network connectivity
Hikvision network cable for network connectivity

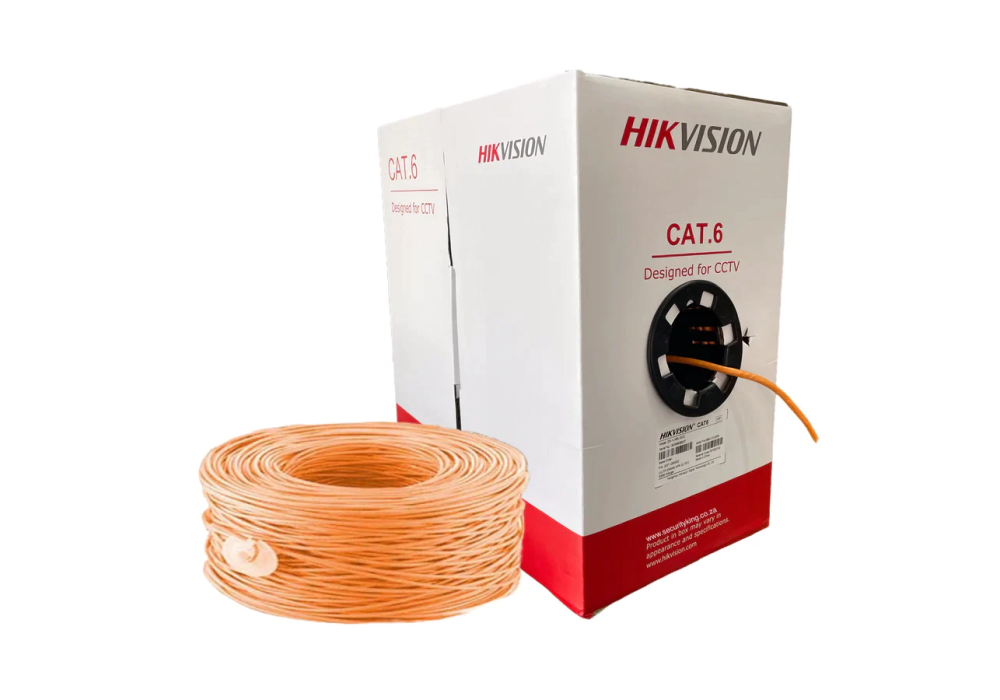

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

General Rip-cordYes CategoryCat.6 Sheath printingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS Reference standardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 Fire resistanceNo SeparatorYes Conductor MaterialSolid-Bare Copper (99.95%) Diameter0.55 ± 0.005 mm, 23...
SKU: DS-1LN6U-SC0
Availability: In Stock
Product Type: Networking
139.000 JOD
139.000 JOD
(-0%)

Delivery across Jordan

Delivery availability and timing depend on stock and destination. Final delivery options are confirmed with your order.

Returns, warranty & support

Need help after purchase? Contact CompuMe for return eligibility, warranty guidance and after-sales support.

Hikvision network cable for network connectivity

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

139.000 JD
Hikvision network cable for network connectivity

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

139.000 JD
Description
  • General
  • Rip-cordYes
  • CategoryCat.6
  • Sheath printingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
  • Reference standardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
  • Fire resistanceNo
  • SeparatorYes
  • Conductor
  • MaterialSolid-Bare Copper (99.95%)
  • Diameter0.55 ± 0.005 mm, 23 AWG
  • Insulation
  • MaterialHDPE
  • Diameter0.98 ± 0.05 mm
  • Sheath physical properties
  • Before aging

    Tensile strength ≥ 13.5 Mpa

    Elongation ≥ 150%
  • Aging period100°C × 24h × 10d
  • After aging

    Tensile strength ≥ 12.5 Mpa

    Elongation ≥ 125%
  • Cold bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
  • Electrical Characteristics(20℃)
  • 1.0-250.0 MHz impedance

    100 ± 15 Ω @ ≤ 100 MHz

    100 ± 25 Ω @100-250 MHz
  • 1.0-250.0 Mhz delay skew≤ 45 ns/100 m
  • DC resistance≤ 9.38 Ω/100 m
  • DC conductor resistance unbalance≤ 5.0%
  • Package dimension400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45")
  • 12.3 ± 0.5kg
  • Cable length(305 ± 1.5) m
  • Ambient temperature-20°C to 75°C (-4°F to 167°F)
  • Operating voltage60 V
  • Sheath
  • Thickness0.50 ± 0.10 mm
  • MaterialPVC
  • ColorOrange
  • Diameter6.00 ± 0.30 mm
