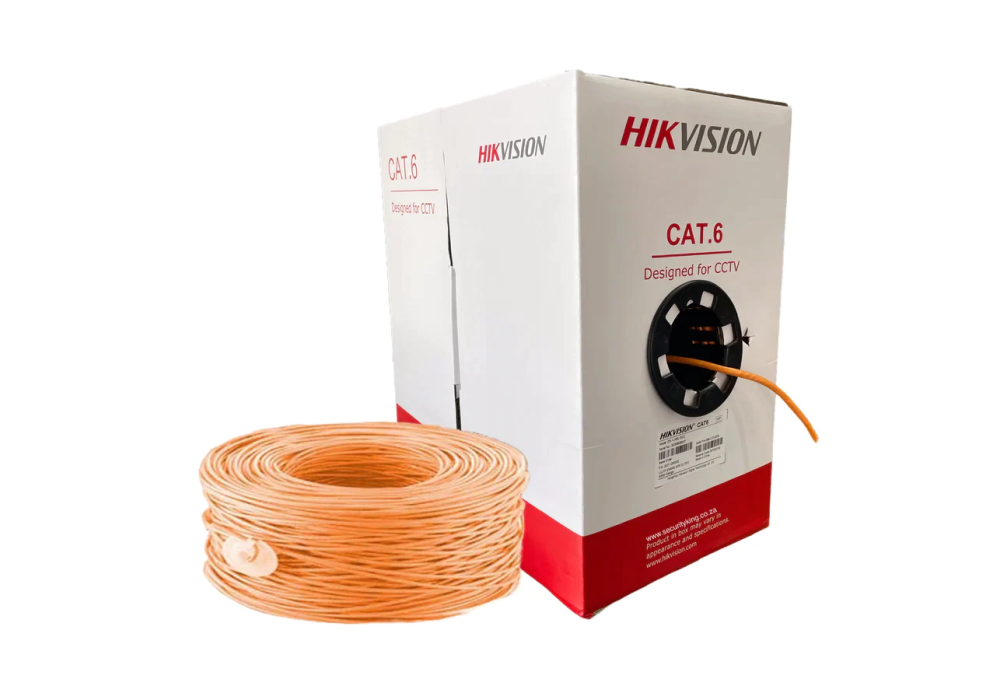

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

General Rip-cordYes CategoryCat.6 Sheath printingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing...
Vendor: GT
SKU: DS-1LN6U-SC0-2383dc10
Availability: In Stock
Product Type: Networking and UPS
125.000 JOD
140.000 JOD
125.000 JOD
Save 15.000 JD
(-11%)
Please hurry! Only 5 left in stock
Subtotal: 125.000 JD
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over JOD100

Estimated to be delivered on 24-48 Hours.

Free Returns

Learn More.

Built And Shipped Within 24 Hours

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

Vendor: GT

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

140.000 JD 125.000 JD

Vendor: GT

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm) - Orange

140.000 JD 125.000 JD
  • General
  • Rip-cordYes
  • CategoryCat.6
  • Sheath printingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
  • Reference standardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
  • Fire resistanceNo
  • SeparatorYes
  • Conductor
  • MaterialSolid-Bare Copper (99.95%)
  • Diameter0.55 ± 0.005 mm, 23 AWG
  • Insulation
  • MaterialHDPE
  • Diameter0.98 ± 0.05 mm
  • Sheath physical properties
  • Before aging

    Tensile strength ≥ 13.5 Mpa

    Elongation ≥ 150%

  • Aging period100°C × 24h × 10d
  • After aging

    Tensile strength ≥ 12.5 Mpa

    Elongation ≥ 125%

  • Cold bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
  • Electrical Characteristics(20℃)
  • 1.0-250.0 MHz impedance

    100 ± 15 Ω @ ≤ 100 MHz

    100 ± 25 Ω @100-250 MHz

  • 1.0-250.0 Mhz delay skew≤ 45 ns/100 m
  • DC resistance≤ 9.38 Ω/100 m
  • DC conductor resistance unbalance≤ 5.0%
  • Package dimension400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45")
  • 12.3 ± 0.5kg
  • Cable length(305 ± 1.5) m
  • Ambient temperature-20°C to 75°C (-4°F to 167°F)
  • Operating voltage60 V
  • Sheath
  • Thickness0.50 ± 0.10 mm
  • MaterialPVC
  • ColorOrange
  • Diameter6.00 ± 0.30 mm
