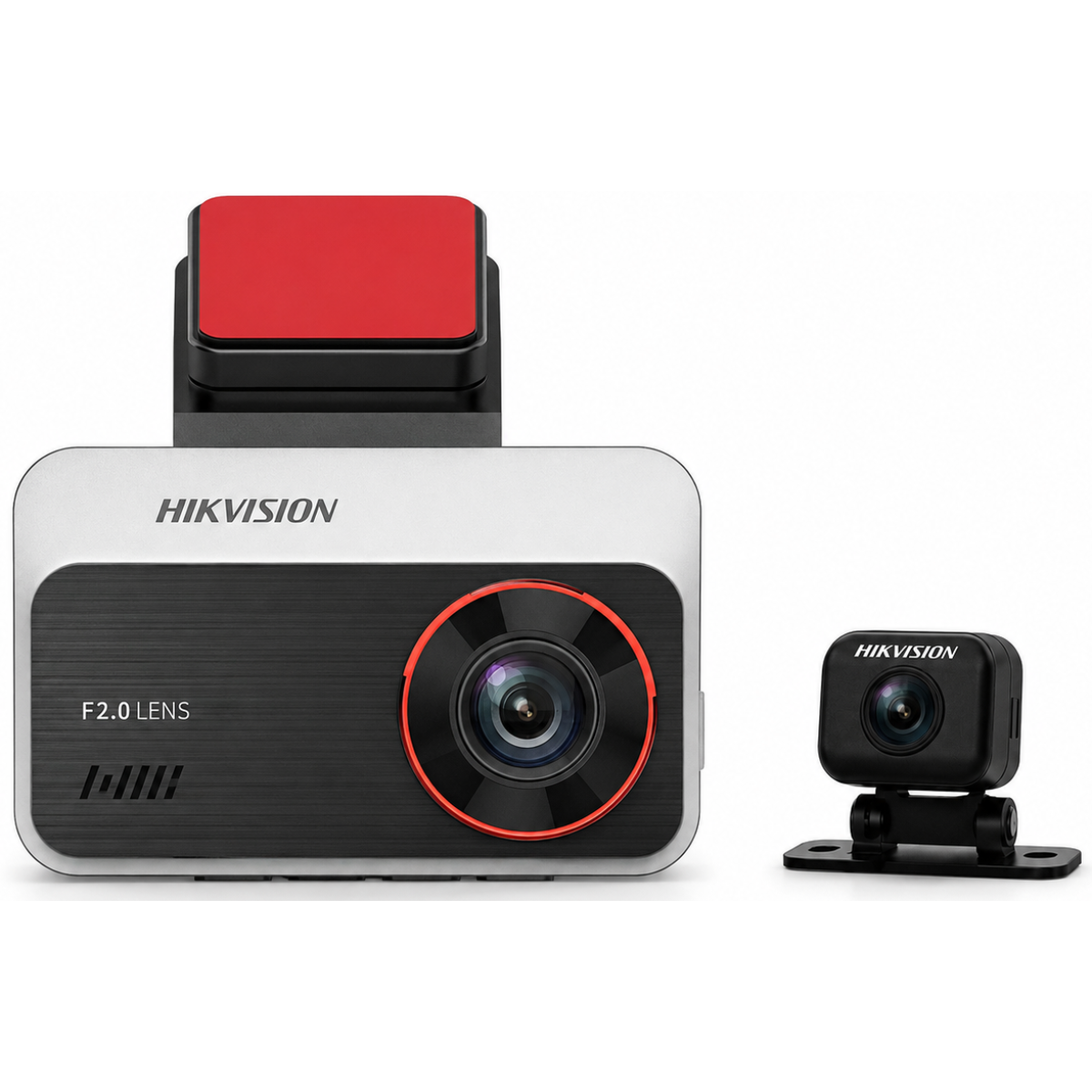

The Hikvision AE-DC2328-C200S(2CH) is a dual-channel vehicle dash camera designed to record both front and rear views. With the rear camera connected, it records the front view at 1080P at 30 fps and the rear view at 1080P at 25 fps for Full HD coverage of the road ahead and behind. A 3-inch IPS screen provides dire operation, while built-in Wi-Fi connects the camera to the HikDashcam mobile app for live view, recording playback and parameter configuration. The camera also features H.264 video compression, a built-in G-sensor, audio recording and TF / microSD card storage from 16 GB to 256 GB. Key Features Dual-Channel Full HD Recording: Front 1080P at 30 fps plus rear 1080P at 25 fps. 3-inch IPS Screen: Built-in 360 x 640 display for dire camera operation. Wi-Fi & HikDashcam: Supports mobile live view, recording playback and parameter configuration. Built-in G-Sensor: Supports collision or strong-vibration triggered recording and recording lock. 16 GB to 256 GB Storage: Records to a compatible TF / microSD memory card with overwrite support. F2.0 Lens: Front camera uses an F2.0 aperture for vehicle recording. Technical Specifications Component Specification Hikvision Model AE-DC2328-C200S(2CH) Produ Type Dual-Channel Dash Camera Image Sensor CMOS Front Recording 1080P at 30 fps Rear Recording 1080P at 25 fps Maximum Front Resolution 1920 x 1080 at 30 fps Aperture F2.0 Display 3-inch IPS Screen Display Resolution 360 x 640 Video Compression H.264 Image Format JPG Storage TF / microSD Card, 16 GB to 256 GB Overwrite Recording Supported Wi-Fi Built-in, Wi-Fi AP Supported Mobile App HikDashcam G-Sensor Built-in GPS Audio Input Audio Output Built-in Speaker Power Interface USB Type-C Power Supply 5 V DC, 2 A Dimensions 85 x 82 x 65 mm Operating Temperature -20 °C to 65 °C Operating Humidity 0% to 95% Compatibility & Important Information This listing is specifically for the AE-DC2328-C200S(2CH) configuration identified in Hikvision's official firmware support. With the rear camera connected, the front channel records at 1080P at 30 fps and the rear channel records at 1080P at 25 fps. The AE-DC2328-C200S does not include GPS functionality. The camera supports TF / microSD cards from 16 GB to 256 GB. Hikvision recommends a Class 10 or higher card for stable data transmission. The rear-camera installation instructions include connecting the rear-camera red cable to the vehicle reversing-light power cable. The USB Type-C connection is used for power. Hikvision specifies that the supplied power cable does not support data transmission. Please to review Q: Is this the AE-DC2328-C200S 2-channel version? A: Yes. This listing is specifically for the AE-DC2328-C200S(2CH) configuration identified by Hikvision. Q: What resolution does it record with both cameras connected? A: The front camera records at 1080P at 30 fps and the rear camera records at 1080P at 25 fps. Q: Does the AE-DC2328-C200S have GPS? A: No. Hikvision's official specification lists GPS as not supported. Q: Does it have a built-in screen? A: Yes. It has a 3-inch IPS screen with 360 x 640 resolution. A: Yes. Built-in Wi-Fi connects the dash camera to the HikDashcam app for supported live view, recording playback and parameter configuration. Q: What memory card capacity does it support? A: Hikvision specifies TF / microSD cards from 16 GB to 256 GB and recommends Class 10 or higher for stable data transmission. Q: Does it support collision-triggered recording? A: Yes. The built-in G-sensor supports recording linkage when a collision or strong vibration is detected, and the event recording can be protected from overwrite. Q: What power connection does it use? A: It uses a USB Type-C power interface and requires 5 V DC, 2 A.
