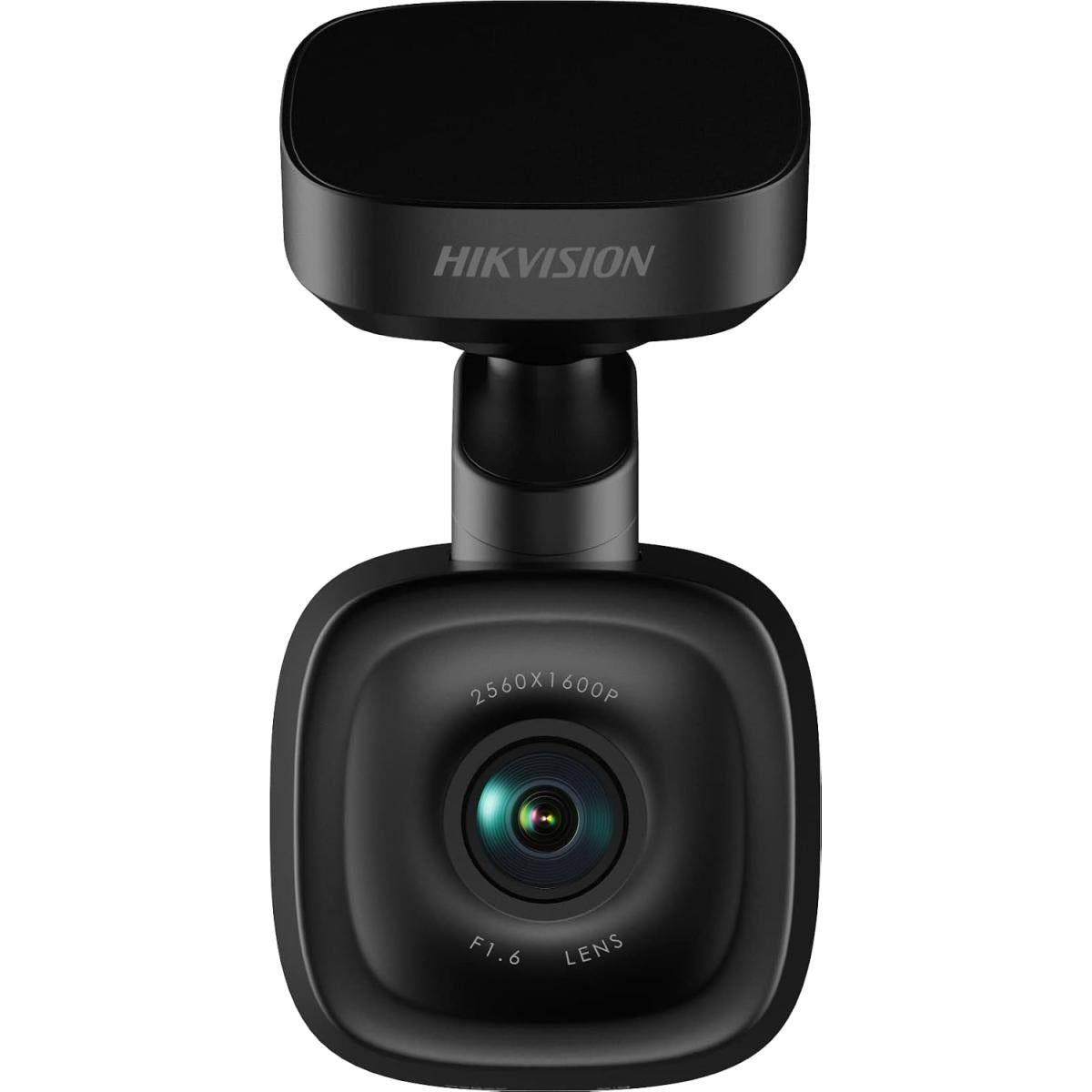

The Hikvision AE-DC5013-F6 is a compa 5 MP dash camera designed for front-road recording at up to 1600P at 30 fps. Its F1.6 aperture and wide 130° diagonal field of view provide broad coverage for everyday vehicle recording. Key Features 5 MP 1600P Recording: Records video at up to 1600P at 30 fps. Wide F1.6 Lens: Provides a 130° diagonal and 109° horizontal field of view. Built-in Wi-Fi: G-Sensor Protection: Supports recording linkage during collisions or strong vibration, with event recordings configurable against overwrite. Voice Recognition: Supports Snapshot, Recording On and Recording Off voice commands. ADAS Functions: Supports traffic-light-green alert, speed-limit recognition and front-car-start reminder. Technical Specifications Component Specification Hikvision Model AE-DC5013-F6 Produ Type Dash Camera Image Sensor CMOS Camera Resolution 5 MP Video Resolution 1600P at 30 fps, 1440P at 30 fps, 1080P at 30 fps Aperture F1.6 Field of View 130° diagonal, 109° horizontal Screen None Video Compression H.265 Image Format JPEG Storage Type TF / microSD Card Wi-Fi Built-in, Wi-Fi AP Supported Mobile App HikDashcam G-Sensor Built-in Bluetooth Audio Input Audio Output Built-in Loudspeaker Voice Recognition Snapshot, Recording On, Recording Off ADAS Traffic Light Turn Green, Speed Limit Recognition, Front Car Start Reminder Power Interface USB 2.0 Power Supply 5 V DC, 2 A Dimensions Without Bracket 52 × 50.4 × 51.9 mm Operating Temperature -20 °C to 70 °C Operating Humidity Up to 95% Compatibility & Important Information This listing is specifically for the Hikvision AE-DC5013-F6 and should not be confused with the separately supported AE-DC5013-F6PRO. The standard AE-DC5013-F6 has no built-in display; operation and supported settings are handled through the dash camera controls and HikDashcam mobile app. GPS functionality is assigned by Hikvision to the AE-DC5013-F6PRO rather than the standard AE-DC5013-F6. A compatible TF / microSD card is required for local recording. Hikvision recommends Class 10 or higher for stable data transmission. Wi-Fi supports connection to HikDashcam for live view, recording playback and parameter configuration. The camera requires a 5 V DC, 2 A power supply. Package Contents Dashcam × 1 Car Charger × 1 Tape × 1 Power Cord × 1 Electrostatic Film × 1 User Manual × 1 Please to review Q: What is the maximum recording resolution of the AE-DC5013-F6? A: Hikvision specifies recording up to 1600P at 30 fps. Q: Does the AE-DC5013-F6 have a built-in screen? A: No. Hikvision specifies that the standard AE-DC5013-F6 does not have an onboard screen. Q: Does it have built-in GPS? A: GPS is associated with the separately identified AE-DC5013-F6PRO version in Hikvision's official documentation, not the standard AE-DC5013-F6. A: Yes. Built-in Wi-Fi connects the dash camera to the HikDashcam app for live view, recording playback and parameter configuration. Q: Does the camera support collision-triggered recording? A: Yes. Its built-in G-sensor can trigger recording during a collision or strong vibration, and the linked video can be configured against overwrite. Q: What voice commands are supported? A: Hikvision lists Snapshot, Recording On and Recording Off voice commands. Q: Which ADAS functions are supported? A: Hikvision lists Traffic Light Turn Green, Speed Limit Recognition and Front Car Start Reminder. Q: What power supply does the camera require? A: Hikvision specifies 5 V DC, 2 A.
