DS-3E0508D-E

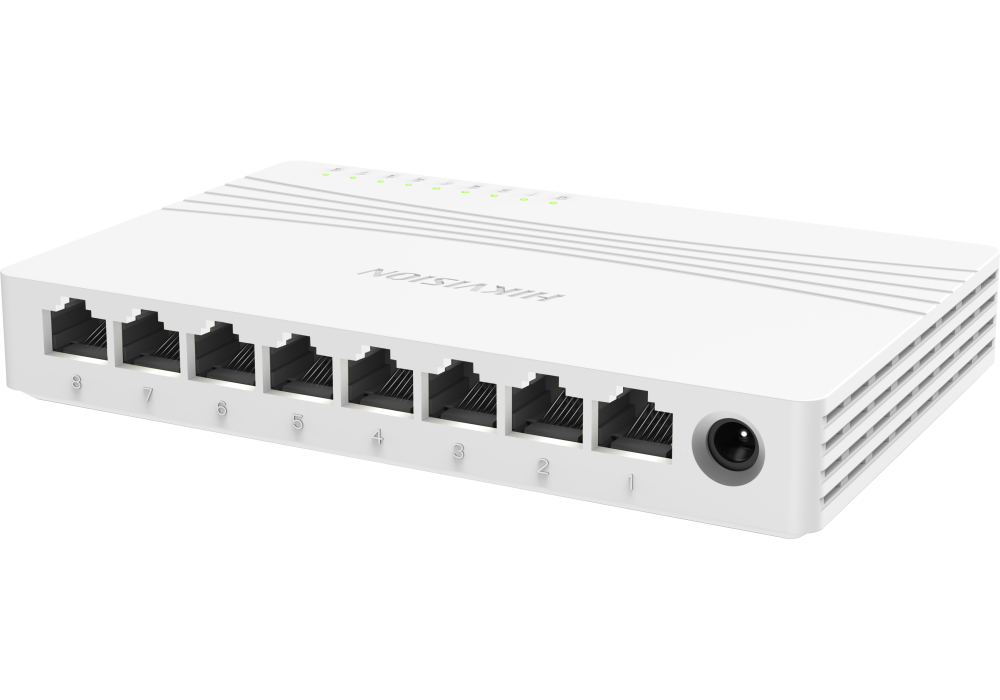

The EOL 8 Port Gigabit Unmanaged Desktop Switch is an efficient and reliable solution for expanding network capacity in small office and home office settings. Its high-speed Ethernet ports ensure that multiple devices can be connected and communicate efficiently, making it suitable for tasks such as data transfer, online gaming, and streaming high-definition video.
Specifications
| General | |
| Dimensions (W × H × D) | 142.00 mm × 90.00 mm × 23.00 mm (5.60'' × 3.54'' × 0.91'') |
| Shell | ABS |
| Net Weight | 0.07 kg (0.15 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%~90% RH non-condensing |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Storage Humidity | 5%~90% RH non-condensing |
| Power Supply | 9 V DC, 0.6 A |
| Network Parameters | |
| Ports | 8 |
| Port Type | 10/100/1000 Mbps RJ45 ports |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Forwarding Mode | Store-and-forward switching |
| MAC Address Table | 4 K |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.904 Mpps |
