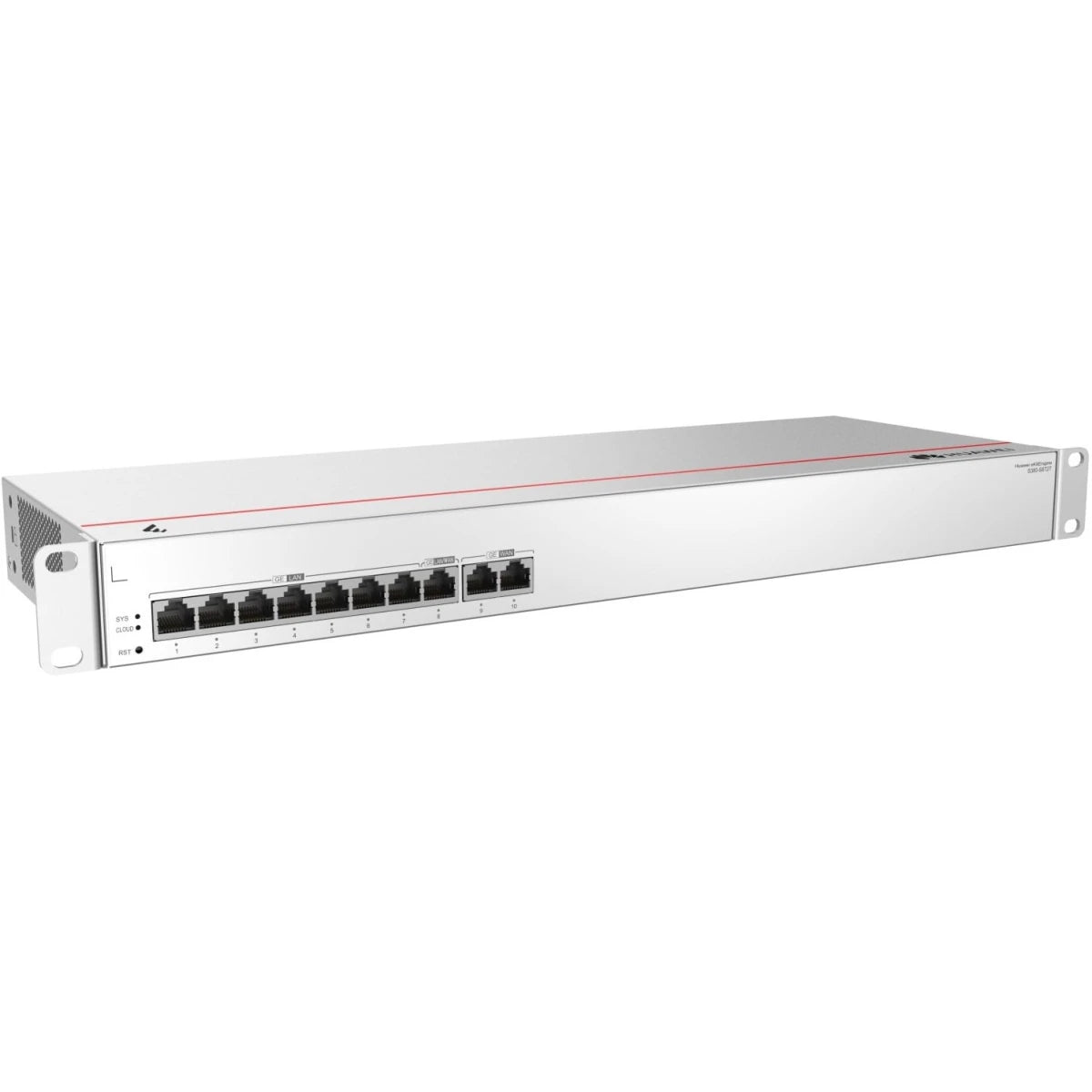

The Huawei S380-S8T2T is a gateway in the eKitEngine series. It combines the functions of a router and a Layer 3 managed switch and is equipped with two WAN ports (Gigabit Ethernet) and eight LAN ports (Gigabit Ethernet). The maximum switching throughput is 16 Gbps, and the throughput is 2 Gbps. The S380-S8T2T can support up to 300 users and includes DHCP server/client, DNS client, PPPoE client, ACLs, and NAT. Management is performed via a web interface, application, or SSH. The device supports WAN bandwidth balancing (load balancing) based on IP address and connection type. All WAN ports can be used simultaneously. The enclosure is designed for installation in a 19" rack cabinet and uses passive cooling. The gateway has a built-in AC power supply, with a maximum power consumption of only 10.55 W. The S380-S8T2T is ideal for small networks, where it can function simultaneously as a router and main switch. This allows you to reduce the costs associated with building an entire network without sacrificing manageability. 10 Gigabit Ethernet ports The device is equipped with 10 Gigabit Ethernet ports (10/100/1000 Mbps), including 2 WAN ports and 8 LAN ports. The switching bandwidth is 16 Gbps, and the packet forwarding speed is 500 Kbps upload and 420 Kbps download. The S380-S8T2T functions, among other things, as an efficient switch. Built-in controller The S380-S8T2T can be used as a network access controller (WAC) for eKitEngine series access points. It can conne up to 64 access points and up to 300 users to the device simultaneously. Therefore, its capabilities are more than sufficient for small and medium-sized networks. Router functionality The produ also functions as a router and supports NAT and DHCP servers. An additional advantage is its load balancing feature: it can utilize multiple WAN ports simultaneously. This protects your network from any service provider outages. Management is performed through a web interface, application, or via SSH. The software allows you to monitor the network status and diagnose problems that may occur during operation. 3-in-1 Device The Huawei S380-S8T2T combines the functionality of a switch, router, and access point controller. This versatility allows it to work in a variety of situations and lets you limit the number of devices used. In terms of performance, the S380-S8T2T is best suited for small to medium-sized networks that require ample room for future expansion. It can easily serve a guesthouse or a large restaurant. Specification Huawei S380-S8T2T Maximum number of users 300 Bandwidth change 16 Gb/s Packet forwarding speed Shipping: 500 Kp/s Download: 420 Kp/s Egress bandwidth 2 Gb/s WAN ports 2x gigabit Ethernet 10/100/1000 Mb/s LAN ports 8x gigabit Ethernet 10/100/1000 Mb/s Maximum number of MAC addresses Dimensions 43.6 x 442 x 160 mm Height Weight 1.6 kg Power supply method Built-in AC power supply Nominal input voltage 100 - 240 V AC, 50/60 Hz Input voltage range 90 - 264 V AC, 45 - 65 Hz Maximum energy consumption 10.55 W Permissible operating temperature From 0 to 40 C Permissible storage temperature From -40 to 70 C Permissible air humidity 5%-95% non-condensing Cooling Passive Software properties Basic interface functions VLAN Marcos Jumbo Port activation/deactivation detection Automatic negotiation VLANIF interface Ethernet 16 VLANs Port types: access, trunk, hybrid Port-based VLAN assignment Automatic storage of MAC addresses Automatic MAC address aging, static MAC entries MAC filtering IPv4 unicast routing Static WAN Optimization Bandwidth balancing based on IP address and connection type User access DHCP client/server, DNS client, PPPoE client, ACL, NAT Management Web graphical interface Application SSH Network maintenance Ping Tracer Diagnosis Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
