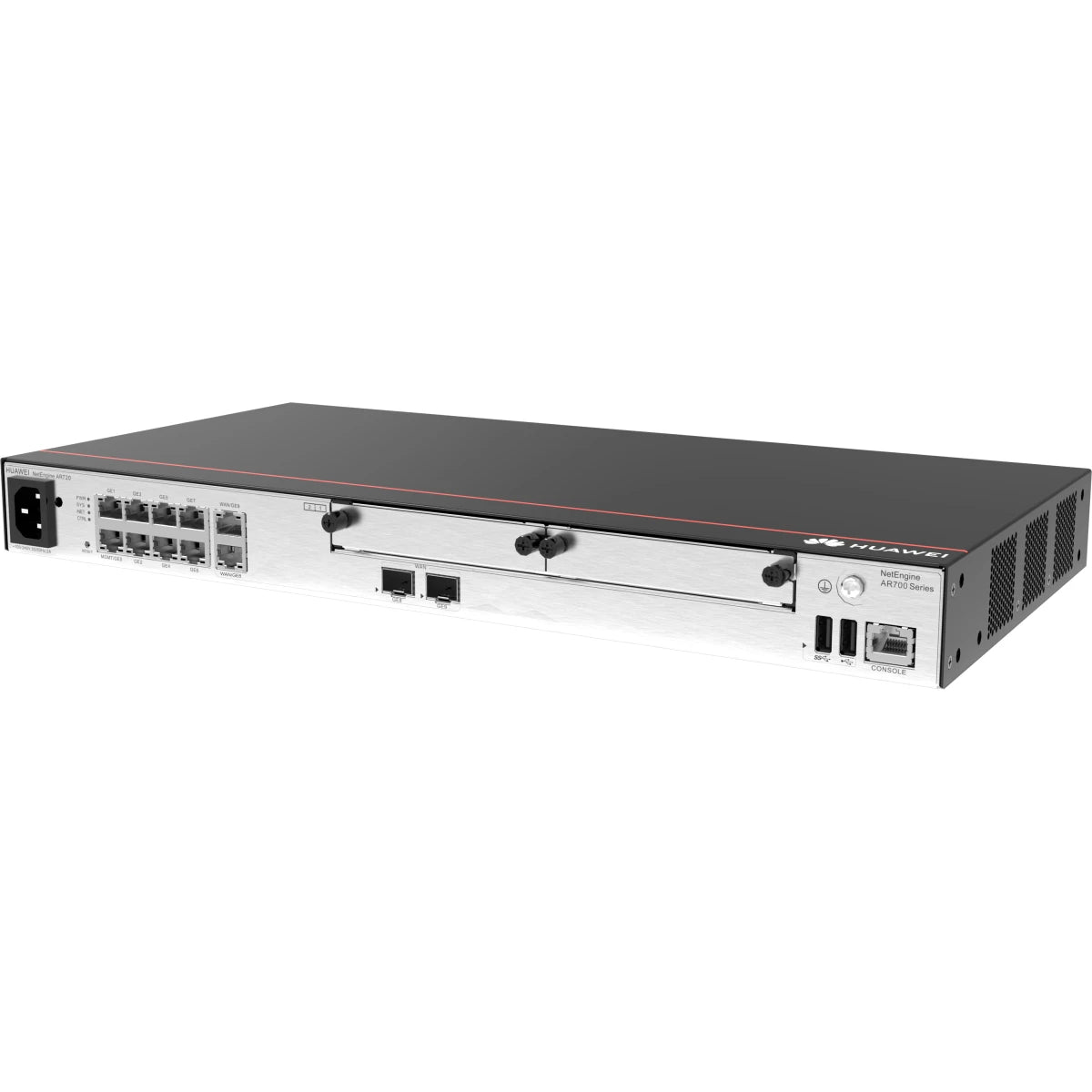

The Huawei NetEngine AR720 is an efficient router equipped with a quad-core ARM processor. Its packet forwarding speed ranges from 9 to 25 Mbps, and its throughput is 4 Gbps. The device features two combo ports (Gigabit Ethernet/SFP) for WAN use and eight Gigabit Ethernet ports that can function as either LAN or WAN. The AR720 is notable for its efficiency and stability. Advanced software allows for early detection of various types of errors, ensuring uninterrupted operation. It supports WAC (WLAN Access Control) and can function as an access point controller in both eKitEngine and AirEngine networks. It provides robust network security thanks to an integrated firewall, IPS, URL filtering, and multiple VPN technologies. The device is designed for 19" rack mounting and has a built-in AC power supply with a maximum power consumption of 33W. Active cooling is used, with airflow directed from left to right. 2 Combo ports (GE/SFP), 8 Gigabit Ethernet ports The device is equipped with two Combo ports (Gigabit Ethernet/SFP), which can only be used as WAN, and eight Gigabit Ethernet ports (10/100/1000 Mb/s) configured as LAN by default, with the option to switch to WAN. In addition, there are two management ports: one RJ45 console port and two USB ports. The router has a built-in AC power supply; the maximum power consumption is only 33W. It uses integrated active cooling with left-to-right airflow. High efficiency The AR720 features an efficient quad-core ARM processor and 4GB of RAM. It supports a bandwidth of 4Gb/s and a packet forwarding rate of 9 to 25Mb/s. The device delivers very high efficiency, especially compared to competing solutions. The router supports bandwidth balancing (load balancing), allowing it to utilize signals from multiple internet providers. Selective receive and multi-feed technologies are employed, ensuring optimized WAN connectivity and minimizing packet loss and latency. Controller, switch and router in one, 2 SIC slots The produ offered combines the functionality of an efficient router, switch, and access point controller (WAC). It supports advanced IPv4 and IPv6 routing features, including RIP/RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6, and BGP/BGP4+. It can manage access points and supports the CAPWAP protocol. The AR720 uses a non-blocking architecture, so it can fully utilize port bandwidth when operating as a switch, without worrying about any component creating a bottleneck. Additionally, the router has two SIC slots where you can use compatible cards. These are hot-swappable ports, allowing you to replace them at any time during operation. Cards with additional WAN, LAN, or LTE interfaces can be used in these slots. Advanced security The Huawei AR720 stands out for its advanced security, making it perfe for networks where high data security is required. The device has a built-in firewall and supports IPS and URL filtering. Your network is protected against various types of attacks that could potentially be used. You can use 802.1X, MAC address, or portal authorization for user authentication. The AR720 supports multiple VPN standards: IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, and L2TPv3 VPN. This is very important in networks where external access is needed, for example, for mobile workers. Use The produ offered will perform well in large corporate networks that require high performance and the highest level of security. You can also use the AR720 in very large distributed networks, where it will function as the primary device at one of the sites. If you are planning a network made up of many access points and prepared to support numerous users at the same time, the AR720 is the solution you need. Specification Huawei NetEngine AR720 Processor ARM64 4 cores Packet forwarding speed 9 - 25 MP/s Number of connected terminals 700 Output bandwidth 4 Gb/s WAN ports 2 Combo ports (Gigabit Ethernet / SFP) LAN ports 8 Gigabit Ethernet ports (can function as WAN) SIC slots WSIC slots (default / max.) 0/1 Ports to manage 1 RJ45 console port USB ports 2x USB Memory 4GB Flash Memory 1 GB Hot swapping Supported Dimensions without elements protruding from the casing 44.4 mm x 442.0 mm x 220.4 mm Dimensions with elements protruding from the casing 44.4 mm x 442.0 mm x 225.2 mm Packaging dimensions 90 mm x 570 mm x 390 mm Weight 3.2 kg Rack IEC Height Input voltage range V AC Input frequency 50 / 60 Hz Maximum input voltage range V AC Maximum input current 2 A Maximum output power 70 W Maximum energy consumption 33 W Fans Permanently built-in fans Air circulation From left to right Volume 52.3 dB Permissible operating temperature From 0 to 45 C Permissible air humidity 5%-95% non-condensing Permissible storage temperature From -40 to 70 C Software properties Basic functions Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
