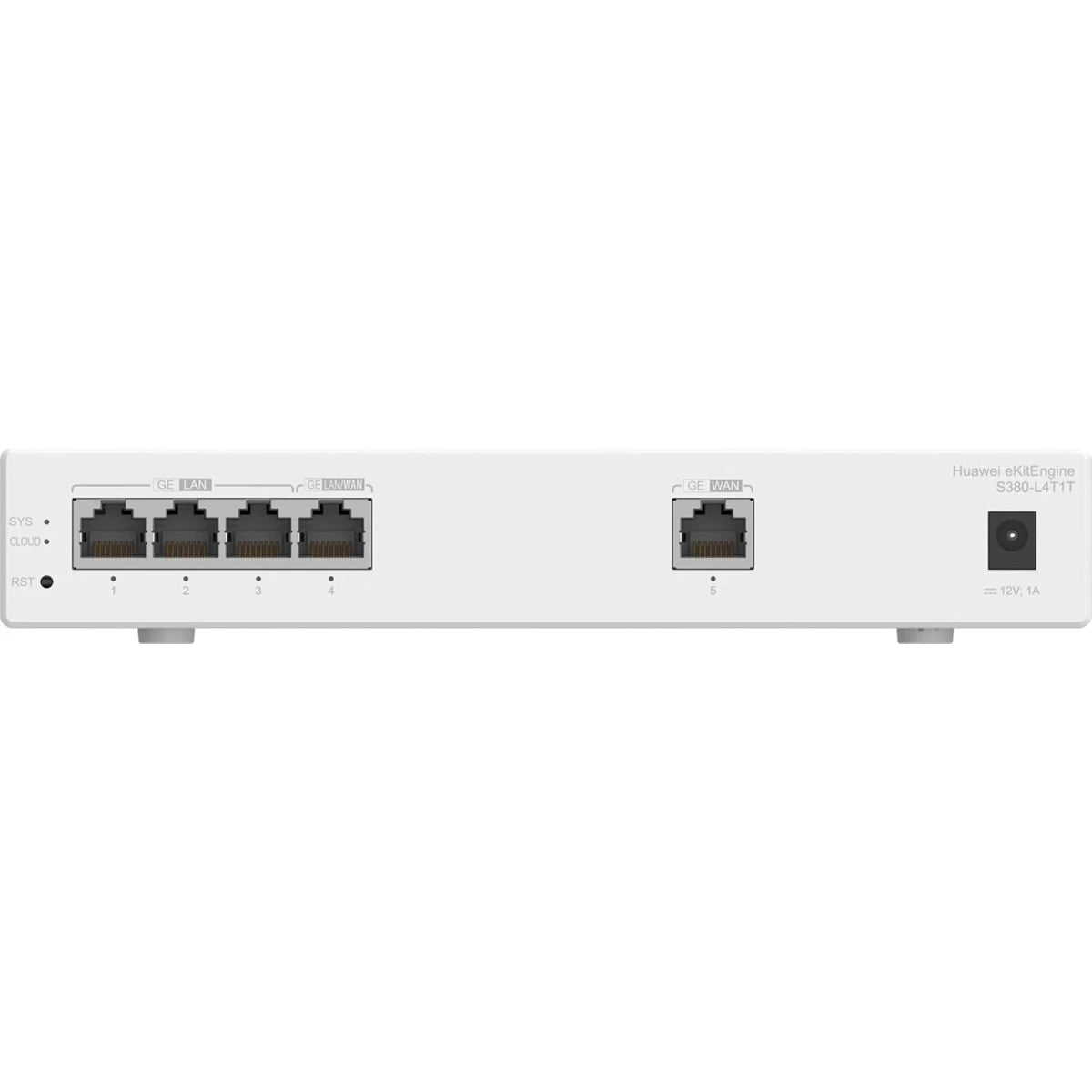

The Huawei S380-L4T1T is an eKitEngine series gateway. It combines the functions of a router and a Layer 3 managed switch and is equipped with five Gigabit Ethernet ports, including one WAN port and four LAN ports. The maximum switching throughput is 8 Gbps, and the throughput is 2 Gbps. The S380-L4T1T can support up to 200 users and includes DHCP server/client, DNS client, PPPoE client, ACLs, and NAT. Management is performed via a web interface, application, or SSH. It features a desktop enclosure and passive cooling. The gateway has a DC input and is compatible with an external 12V/1A power supply, with a maximum power consumption of only 6.11W. The S380-L4T1T is an entry-level gateway for use in eKitEngine-based networks. It offers high efficiency while maintaining an attractive price and low power consumption. 5 Gigabit Ethernet ports The device is equipped with five Gigabit Ethernet ports (10/100/1000 Mbps), including one WAN port and four LAN ports. The switching bandwidth is 8 Gbps, and the packet forwarding speed is 300 Kbps upload and 420 Kbps download. Built-in controller The S380-L4T1T can be used as a web-based access control (WAC) for eKitEngine series access points. It can conne up to 32 access points and up to 200 users to the device simultaneously. This produ is ideal for offices and even large homes where multiple access points are planned. Router functionality The produ also functions as a router and supports NAT and DHCP servers. Management is performed via a web interface, application, or SSH. The software allows you to monitor network status and diagnose any problems that may occur during operation. 3-in-1 Device The Huawei S380-L4T1T combines the functionality of a switch, router, and access point controller. It's ideal for office networks with up to 200 client devices. Simply conne a PoE-powered access switch to the S380-L4T1T; no additional controller or router is required. This configuration reduces costs and simplifies network management. Specification Huawei S380-L4T1T Maximum number of users 200 Bandwidth change 8 Gb/s Packet forwarding speed Shipping: 300 Kp/s Download: 420 Kp/s Egress bandwidth 1 Gb/s WAN ports 1x gigabit Ethernet 10/100/1000 Mb/s LAN ports 4x gigabit Ethernet 10/100/1000 Mb/s Maximum number of MAC addresses Dimensions 35 x 210 x 130 mm Height Weight 0.7 kg Power supply mode External power supply Nominal input voltage of the power supply 100 - 240 V AC, 50/60 Hz Power supply input voltage range 90 - 264 V AC, 45 - 65 Hz Maximum energy consumption 6.11 W Permissible operating temperature From 0 to 40 C Permissible storage temperature From -40 to 70 C Permissible air humidity 5%-95% non-condensing Cooling Passive Software properties Basic interface functions VLAN Marcos Jumbo Port activation/deactivation detection Automatic negotiation VLANIF interface Ethernet 16 VLANów Port types: access, trunk, hybrid Port-based VLAN assignment Automatic storage of MAC addresses Automatic MAC address aging, static MAC entries MAC filtering IPv4 unicast routing Static WAN Optimization Bandwidth balancing based on IP address and connection type User access DHCP client/server, DNS client, PPPoE client, ACL, NAT Management Web graphical interface Application SSH Network maintenance Ping Tracer Diagnosis Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
