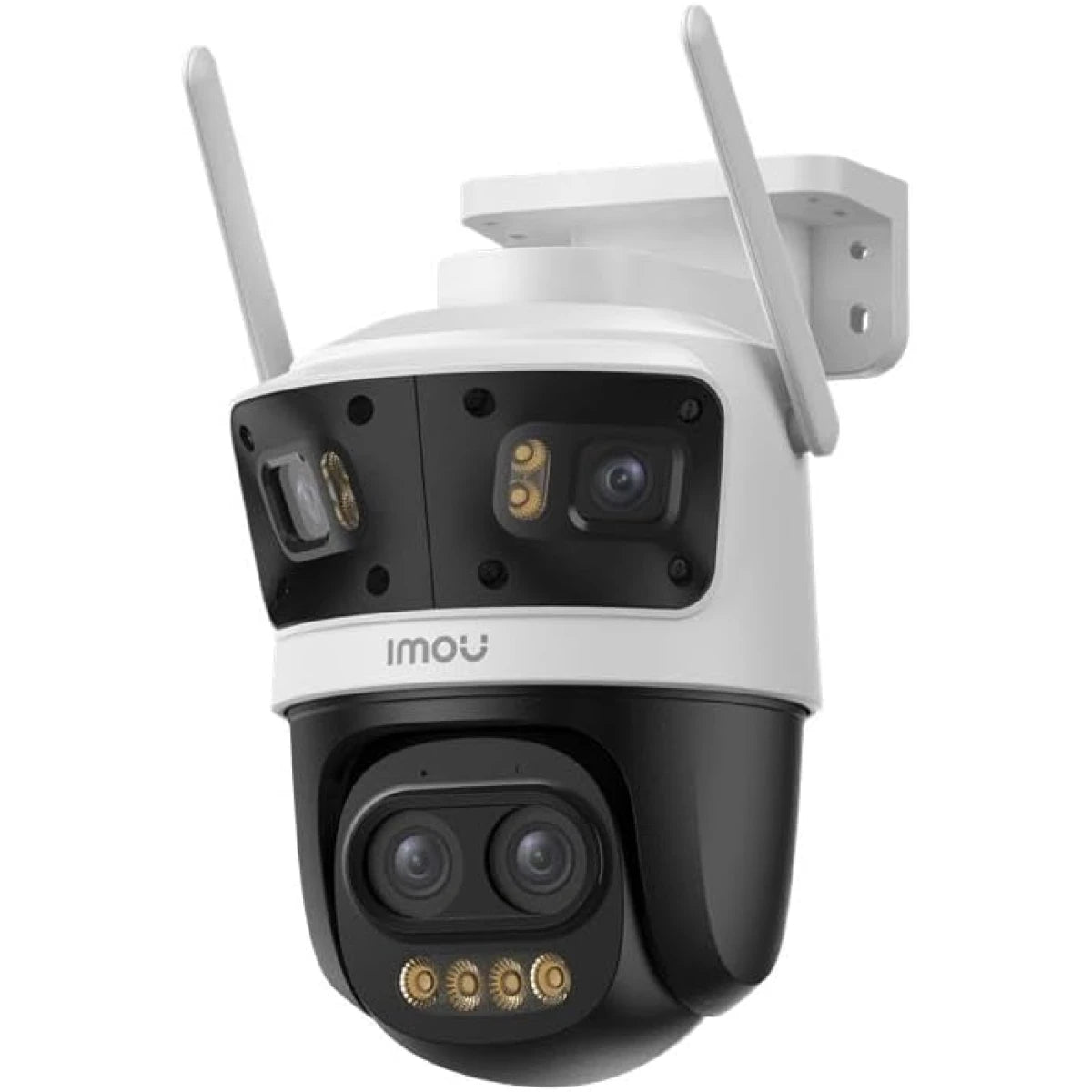

The IMOU Cruiser Pano Z is a 13 MP multi-view outdoor security camera combining two 4 MP fixed views with a 5 MP Pan & Tilt view. The fixed camera system provides a wide 158° horizontal spliced field of view, while the Pan & Tilt system adds 12× mixed zoom for closer monitoring and automatic target tracking. Dual-band Wi-Fi 6 and PoE support provide flexible network installation options, while Human and Vehicle Detection, smart linkage tracking, warning lights and a high-volume siren support active security monitoring. Full-duplex two-way talk, up to 1024 GB MicroSD storage and ONVIF compatibility complete the system for home and property surveillance. Key Features 13 MP Multi-View System: Combines two 4 MP fixed views with a 5 MP Pan & Tilt view for wide-area monitoring and detailed target viewing. 12× Mixed Zoom: Pan & Tilt optical system provides mixed zoom for closer observation of detected subjects. Smart Linkage Tracking: When a target enters the fixed-view area, the Pan & Tilt camera can automatically focus on and track the subje. Human & Vehicle Detection: Smart detection distinguishes human and vehicle targets to reduce irrelevant alerts. Dual-Band Wi-Fi 6 & PoE: Supports 2.4 GHz / 5 GHz Wi-Fi 6, 100 Mbps Ethernet and PoE 802.3at. Active Defense: Warning lights and a configurable siren provide sound-and-light deterrence, with siren output reaching up to 120 dB. Technical Specifications Component Specification IMOU Model Cruiser Pano Z IPC-S76DP-13M0N Produ Type Multi-View Outdoor Security Camera Total Camera Resolution 13 MP Combined: 4 MP + 4 MP Fixed Views + 5 MP Pan & Tilt View Fixed Camera Sensor 1/3-inch Progressive CMOS Fixed View Resolution 4 MP + 4 MP (2560 × 1440) Fixed Lens 3.6 mm, F1.6 Fixed Spliced Field of View 158° Horizontal, 47° Vertical, 165° Diagonal Fixed Night Vision Warm Light: 30 m; IR: 30 m Pan & Tilt Sensor 1/3-inch Progressive CMOS Pan & Tilt Resolution 5 MP (2880 × 1620) Pan & Tilt Lens 2.8 mm + 12 mm, F1.6 Pan & Tilt Max. Field of View 94° Horizontal, 52° Vertical, 111° Diagonal Pan & Tilt Night Vision Warm Light: Up to 56 m; IR: Up to 56 m Zoom 12× Mixed Zoom Video Compression H.265 / H.264 Frame Rate Up to 15 fps Smart Detection Motion, Human, Vehicle Tracking Smart Linkage Tracking Night Vision Modes Full-Color, Smart, IR, Off Audio Full-Duplex Two-Way Talk Built-In Active Defense Warning Lights and Siren Siren Output Up to 120 dB Wi-Fi Dual-Band Wi-Fi 6 2.4 GHz Wi-Fi IEEE 802.11b/g/n/ax 5 GHz Wi-Fi IEEE 802.11a/n/ac/ax Ethernet 1 × 100 Mbps Ethernet Port PoE 802.3at ONVIF Supported Local Storage MicroSD Card up to 1024 GB Privacy Mode One-Tap Privacy Mode Voice Assistant Google Assistant, Amazon Alexa Mobile App Imou App for iOS and Android Power Supply DC 12 V / 1.5 A or PoE 802.3at Power Consumption <18 W Operating Temperature -30°C to +50°C Operating Humidity Less Than 95% RH Material Plastic Dimensions 126.18 × 161.39 × 202.4 mm Weight 698 g Certification Compatibility & Important Information The Cruiser Pano Z supports both 2.4 GHz and 5 GHz Wi-Fi 6 networks. Wired installation is available through the 100 Mbps Ethernet port, with PoE 802.3at support for compatible PoE equipment. Local recording supports a compatible MicroSD card with capacity up to 1024 GB. ONVIF support enables integration with compatible ONVIF recorders and surveillance systems. Smart linkage tracking uses the wide fixed-camera view to locate a target and dire the Pan & Tilt view toward it for continued tracking. Google Assistant and Amazon Alexa compatibility requires supported devices and services. Package Contents IMOU Cruiser Pano Z Camera × 1 Power Adapter × 1 Screw Package × 1 Quick Start Guide × 1 Waterproof Connector × 1 Installation Position Map × 1 Legal and Regulatory Information × 1 Please to review Q: What is the total resolution of the IMOU Cruiser Pano Z? A: The camera combines two 4 MP fixed views with one 5 MP Pan & Tilt view, providing a 13 MP multi-view configuration. Q: Does the Cruiser Pano Z support optical zoom? A: IMOU specifies 12× Mixed Zoom for the Pan & Tilt camera system. Q: How does Smart Linkage Tracking work? A: When a target enters the fixed-camera monitoring area, the Pan & Tilt view can automatically move toward the target and continue tracking it. Q: Does it dete both people and vehicles? A: Yes. IMOU officially lists Motion, Human and Vehicle Detection. Q: Does the camera support both 2.4 GHz and 5 GHz Wi-Fi? A: Yes. It supports dual-band Wi-Fi 6 on both 2.4 GHz and 5 GHz networks. Q: Can the Cruiser Pano Z be powered by PoE? A: Yes. It supports PoE 802.3at as well as a DC 12 V / 1.5 A power supply. Q: What is the maximum supported MicroSD capacity? A: Local storage supports MicroSD cards with capacities up to 1024 GB. Q: Does it support two-way voice communication?
