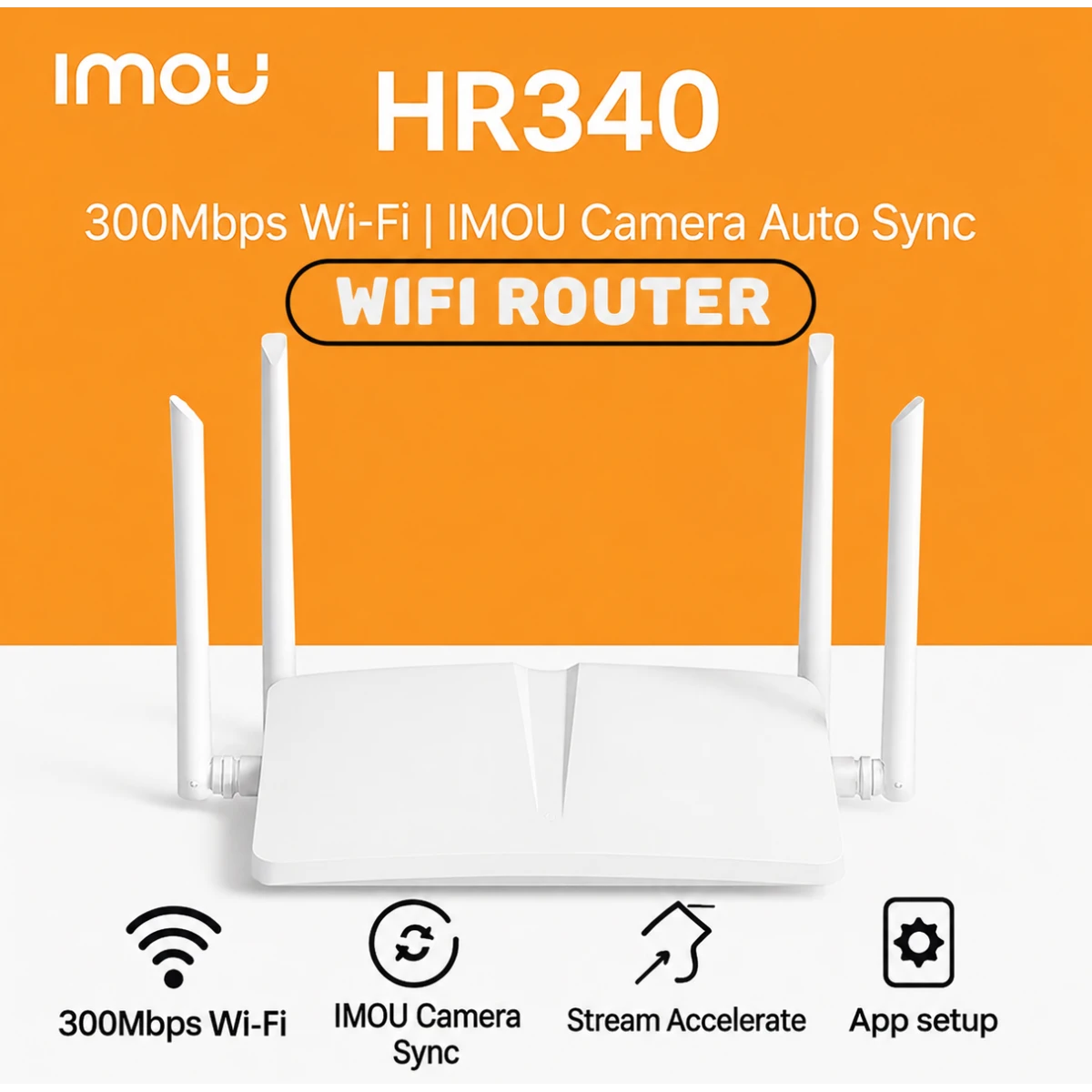

The IMOU HR340 is a 300 Mbps 2.4 GHz Wi-Fi router designed for everyday home networking and IMOU camera installations. Four external 5 dBi antennas provide the router's wireless connection, while one 100 Mbps WAN port and three 100 Mbps LAN ports support wired network devices. For IMOU camera environments, the HR340 supports Wi-Fi Auto-sync for automatic camera discovery and connection, together with IMOU camera stream acceleration. Parental Control, Guest Network, IPv6, Wi-Fi scheduling and Imou Life App management provide additional control over the home network. Key Features 300 Mbps Wi-Fi: 2.4 GHz wireless networking based on IEEE 802.11b/g/n. 4 External Antennas: Four 5 dBi external antennas provide the router's wireless connection. IMOU Camera Wi-Fi Auto-sync: Automatically discovers nearby compatible IMOU cameras and connects them to the router. IMOU Camera Stream Acceleration: Supports dedicated acceleration for IMOU camera streaming traffic. Wired Networking: Includes one 100 Mbps WAN port and three 100 Mbps LAN ports. Network Management: Supports Parental Control, Guest Network, IPv6, Wi-Fi scheduling and Imou Life App management. Technical Specifications Component Specification IMOU Model HR340 Produ Type Wi-Fi Router Color White Wi-Fi Band 2.4 GHz Wireless Standard IEEE 802.11b/g/n Wi-Fi Speed 300 Mbps Antennas 4 × External 5 dBi Antennas WAN Port 1 × 100 Mbps LAN Ports 3 × 100 Mbps WAN Connection Types PPPoE, Dynamic IP, Static IP IP Protocol IPv4 / IPv6 Wireless Security WPA-PSK / WPA2-PSK Hidden SSID Supported Wi-Fi Schedule Supported IMOU Camera Wi-Fi Auto-sync Supported IMOU Camera Stream Acceleration Supported Parental Control Supported Guest Network Supported QoS Supported Network Features DDNS, DMZ, Port Forwarding, UPnP Management PC Web Configuration, Mobile Web Configuration, App Buttons 1 × WPS, 1 × Reset LED Indicator Two-Color Light: Red / Green App Imou Life App Power Adapter DC 12 V / 0.5 A Compatibility & Important Information The HR340 operates on the 2.4 GHz Wi-Fi band and supports IEEE 802.11b/g/n. All wired Ethernet interfaces are specified at 100 Mbps: one WAN port and three LAN ports. IMOU Camera Wi-Fi Auto-sync can automatically discover and conne nearby compatible IMOU cameras. If the router's Wi-Fi name or password is changed, IMOU states that the Auto-sync function can refresh the connection information and reconne compatible IMOU cameras automatically. The HR340 supports WPA-PSK / WPA2-PSK wireless security, Hidden SSID and Wi-Fi scheduling. Router management is available through PC web configuration, mobile web configuration and the supported app. Please to review Q: What Wi-Fi speed does the IMOU HR340 support? A: The HR340 provides up to 300 Mbps wireless speed on the 2.4 GHz band. Q: Does the HR340 support 5 GHz Wi-Fi? A: The official specification lists 2.4 GHz Wi-Fi with IEEE 802.11b/g/n. Q: How many Ethernet ports does the router have? A: It has one 100 Mbps WAN port and three 100 Mbps LAN ports. Q: What is IMOU Camera Wi-Fi Auto-sync? A: It automatically discovers nearby compatible IMOU cameras and connects them to the router. IMOU also states that compatible cameras can refresh and reconne if the Wi-Fi name or password is changed. Q: Does the HR340 support a Guest Network? A: Yes. Guest Network support is included in the official feature list. Q: Does the router support IPv6? A: Yes. Both IPv4 and IPv6 are officially supported. Q: What wireless security does the HR340 support? A: The official specification lists WPA-PSK and WPA2-PSK encryption. Q: Can the HR340 be managed from an app? A: Yes. IMOU lists app management as well as PC and mobile web configuration.
