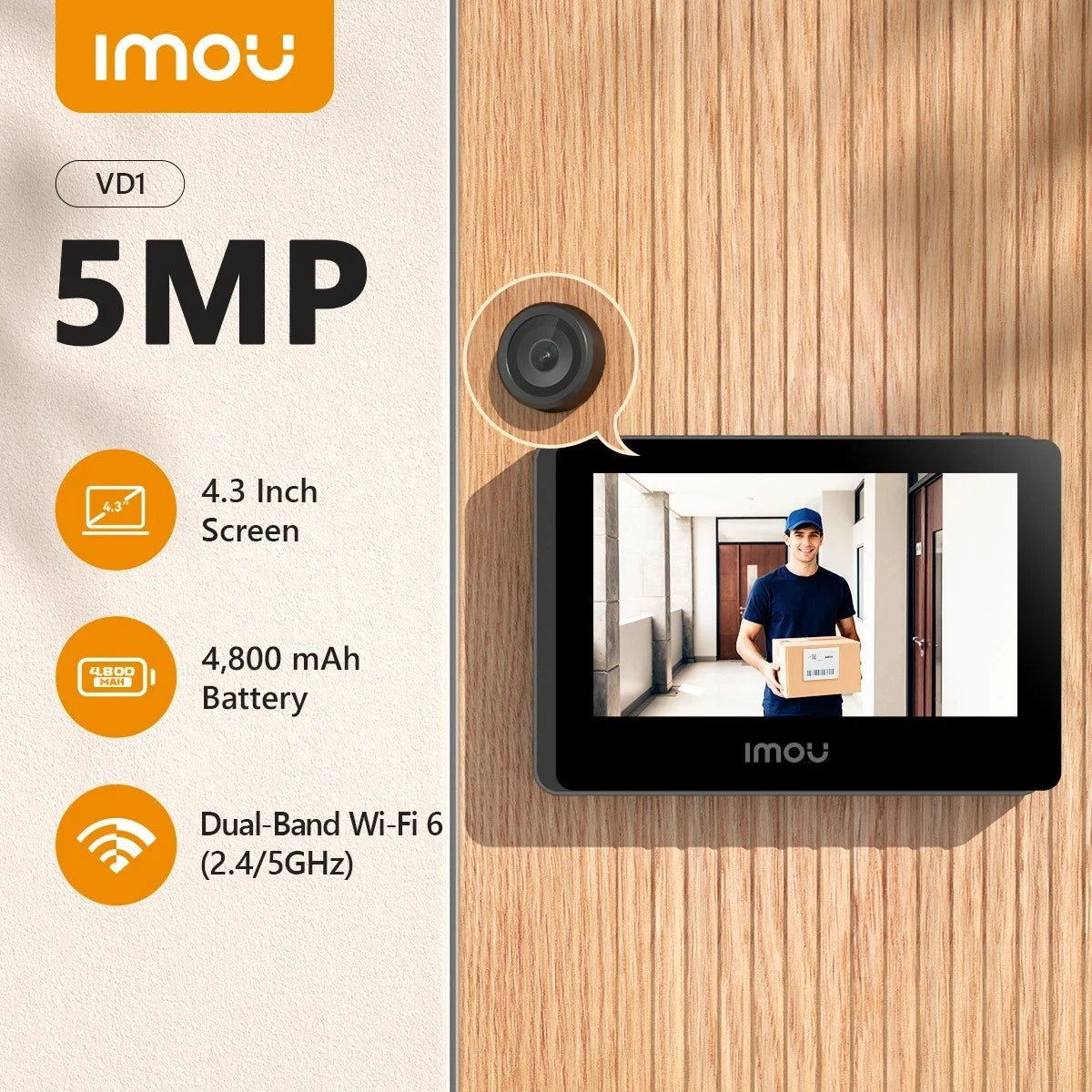

The IMOU VD1 is a smart digital door viewer that upgrades a traditional peephole with a 5MP camera and a 4.3-inch indoor color screen. Its 2880 × 1620 resolution and 149° diagonal field of view provide a wide view of the area outside the door while retaining a discreet exterior appearance. VD1 combines dual-band Wi-Fi connectivity, AOV human detection, configurable privacy zones, local microSD recording, and a 4800 mAh rechargeable battery. It is designed for compatible doors from 35 to 102 mm thick with peephole openings from 14 to 26 mm. Key Features 5MP Door Camera: Captures video at up to 2880 × 1620 resolution through a 2.3 mm wide-angle lens. 4.3-inch Indoor Screen: 149° Wide View: Offers a broad diagonal field of view for monitoring the area outside the door. AOV Human Detection: Always-on Video mode enables human and loitering detection with automatic recording. Dual-Band Wi-Fi: Supports 2.4 GHz and 5 GHz wireless connectivity for use with the IMOU app. Up to 512 GB Local Storage: Supports microSD cards for local snapshots and recordings. Technical Specifications Component Specification IMOU Model VD1 Produ Type Smart Door Viewer / Digital Peephole Camera Image Sensor 1/3-inch Progressive CMOS Resolution 5MP (2880 × 1620) Lens 2.3 mm Field of View 125° horizontal / 71° vertical / 149° diagonal Indoor Screen 4.3-inch non-touch color screen Battery 4800 mAh rechargeable battery Wireless Connectivity Dual-band Wi-Fi, 2.4 GHz & 5 GHz Mobile App IMOU App for iOS and Android Video Compression H.265 / H.264 Frame Rate Up to 15 fps Digital Zoom Detection Human / Loitering Detection in AOV Mode Privacy Zones Up to 4 configurable privacy zones Storage microSD card up to 512 GB Controls Power button, Record & Capture button Power DC 5 V, 2 A Power Consumption < 2 W Operating Temperature -20°C to +50°C Camera Dimensions Ø33 × 44 mm Screen Dimensions 115 × 80.4 × 18.4 mm Produ Weight 276 g Compatibility & Important Information Door Compatibility: Designed for doors 35 to 102 mm thick with peephole openings from 14 to 26 mm. Human Detection: Human detection requires AOV Mode to be enabled. Without AOV Mode, the device does not actively perform image detection, snapshots, or storage. AOV Operation: When AOV Mode is enabled, the device performs human detection and stores video automatically; manual snapshot and recording functions are unavailable in this mode. Battery Operation: IMOU specifies up to 14 days with AOV Mode enabled and up to 150 days in Manual Snapshot mode under its stated operating conditions. Local Storage: Supports microSD cards up to 512 GB. The memory card is not included. Package Contents 1× Camera 1× 4.3-inch LCD Screen 1× Installation Rack 2× Color Rings 1× Screw Package 1× USB-C Cable 1× Sticker 1× Regulatory Information 1× Quick Start Guide Please to review Q: What resolution does the IMOU VD1 provide? A: The VD1 uses a 5MP camera with a maximum resolution of 2880 × 1620. Q: Does the VD1 include an indoor display? A: Yes. It includes a 4.3-inch non-touch color LCD screen for viewing the area outside the door. Q: What doors are compatible with the IMOU VD1? A: IMOU specifies doors from 35 to 102 mm thick with peephole openings from 14 to 26 mm. Q: Does the VD1 support human detection? A: Yes. Human and loitering detection are available when AOV Mode is enabled. Q: Does it support both 2.4 GHz and 5 GHz Wi-Fi? A: Yes. IMOU specifies dual-band 2.4 GHz and 5 GHz wireless connectivity. Q: What is the maximum supported microSD card capacity? A: The VD1 supports microSD cards up to 512 GB. A memory card is not included. Q: How large is the built-in battery? A: The VD1 has a 4800 mAh rechargeable battery. IMOU specifies different operating times depending on whether AOV Mode is enabled. Q: What comes in the box? A: The package includes the camera, 4.3-inch LCD screen, installation rack, two color rings, screw package, USB-C cable, sticker, regulatory information, and Quick Start Guide.
