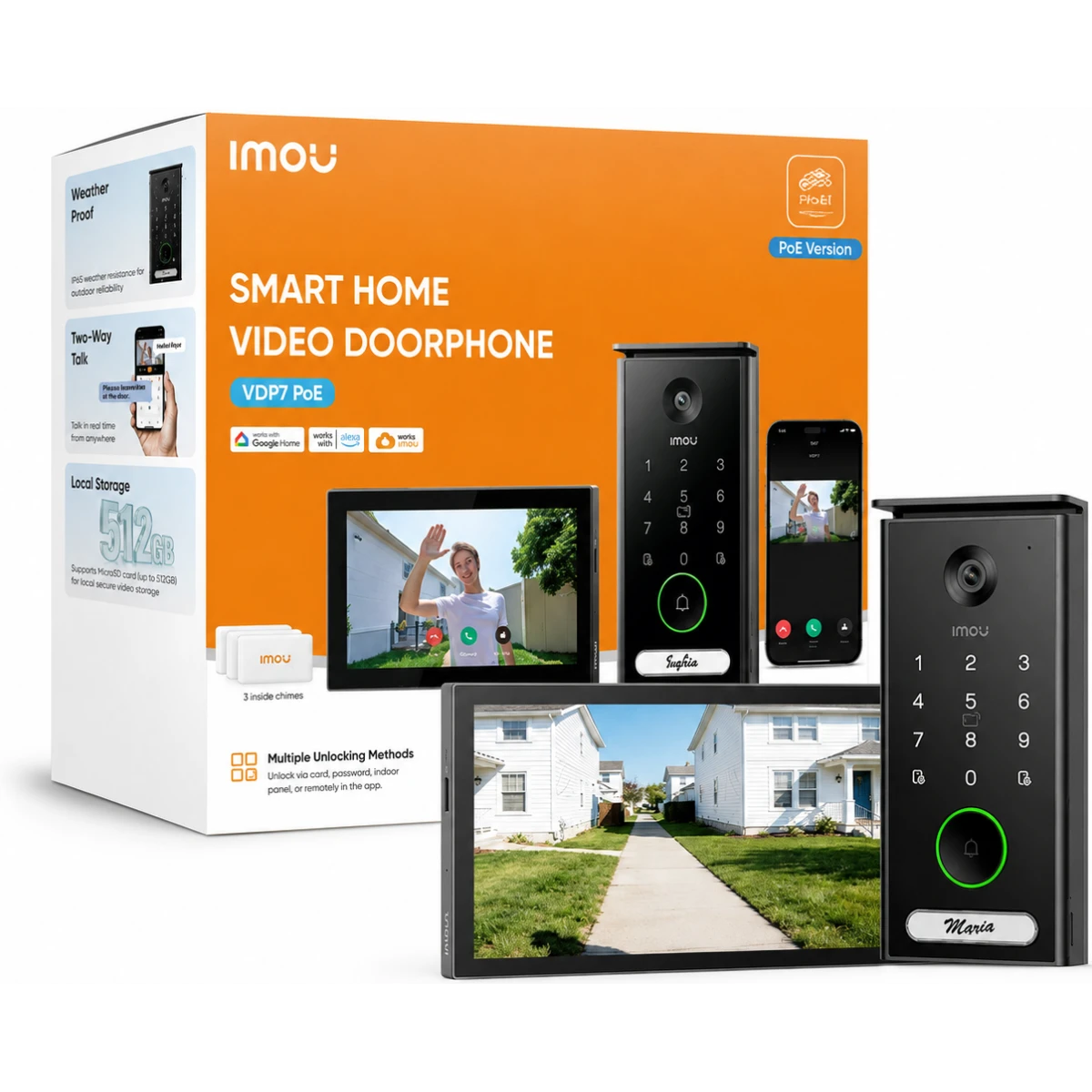

PoE connectivity carries power and network data through the Ethernet connection for a streamlined installation. Multiple unlocking methods, two-way audio, Human, Vehicle and Loitering Detection, two independent lock-control channels and MicroSD storage up to 512 GB provide practical access control and visitor management for compatible installations. Key Features 5 MP Door Station: Captures video at up to 2880 x 1620 resolution with a 2.3 mm lens and 149° diagonal field of view. 7-inch Touch Screen: Indoor monitor provides a 1024 x 600 touchscreen for visitor viewing, communication and access control. PoE Connectivity: IEEE 802.3af/at support carries power and network connectivity through the PoE connection. Multiple Unlocking Methods: Supports card, password, indoor-unit and remote app unlocking. Smart Entrance Detection: Human, Vehicle and Loitering Detection help provide more relevant entrance alerts. Two-Way Audio: Technical Specifications Component Specification IMOU Model VDP7 PoE Door Station Code VO1-5M0A Indoor Monitor Code VH1-7A0A Produ Type Image Sensor 1/3-inch Progressive CMOS Maximum Resolution 5 MP (2880 x 1620) Focal Length 2.3 mm Field of View 125° Horizontal, 71° Vertical, 149° Diagonal Night Vision Distance Up to 15 m / 49 ft Indoor Screen 7-inch Touch Screen Screen Resolution 1024 x 600 PoE Standard IEEE 802.3af / 802.3at Power Supply 48 V DC IEEE 802.3af/at Unlocking Methods Card, Password, Indoor Unit, App Lock Control 2 Channels Exit Button 2 Channels Doorbell Button Tamper Alarm Supported Video Compression H.265 / H.264 Frame Rate Up to 15 fps Audio Two-Way Audio Human Detection Supported Vehicle Detection Supported Loitering Detection Supported Do Not Disturb Mode Supported Privacy Masking Custom Privacy Masking Area Local Storage MicroSD Card up to 512 GB Mobile App IMOU App for iOS and Android VTO Operating Temperature -20°C to +50°C VTH Operating Temperature -10°C to +45°C Door Station Dimensions 181 x 83.5 x 29 mm Indoor Monitor Dimensions 184 x 113 x 23.5 mm Door Station Weight 474 g Indoor Monitor Weight 359 g Certification Compatibility & Important Information The VDP7 PoE uses IEEE 802.3af/at PoE for network connectivity and power delivery. The system provides two lock-control channels and two exit-button channels for compatible entrance-control installations. Local recording requires a compatible MicroSD card with capacity up to 512 GB. Remote live viewing, two-way communication and app-based unlocking are supported through the IMOU App on compatible iOS and Android devices. The outdoor door station and indoor monitor have different specified operating temperature ranges: -20°C to +50°C for the VTO and -10°C to +45°C for the VTH. Package Contents Door Station (VTO) x 1 Wall Mounting Bracket for VTO, Pre-Installed x 1 Drilling Template for Door Station x 1 Indoor Monitor (VTH) x 1 Wall Mounting Bracket for Monitor x 1 Drilling Template for Monitor x 1 Female Wire Harness x 1 Screw Pack x 2 Wires and Connectors Pack x 1 L-Shaped Wrench x 1 Name Tag x 2 Card x 3 Quick Start Card x 1 Regulatory Information x 1 Please to review Q: What resolution does the IMOU VDP7 PoE door station provide? A: The door station provides a maximum resolution of 5 MP at 2880 x 1620. Q: What size is the indoor monitor? A: The indoor monitor has a 7-inch touchscreen with a resolution of 1024 x 600. Q: Which PoE standards does the VDP7 PoE support? A: IMOU specifies IEEE 802.3af and IEEE 802.3at PoE support. Q: How can the door be unlocked? A: The system supports unlocking by card, password, the indoor unit and remotely through the IMOU App. Q: Can the system control two entrance locks? A: The VDP7 PoE provides two lock-control channels and two exit-button channels for compatible access-control installations. Q: What smart detection functions are supported? A: IMOU specifies Human Detection, Vehicle Detection and Loitering Detection. Q: Does the VDP7 PoE support two-way audio? A: Yes. Two-way audio is officially supported for live communication with visitors. Q: What is the maximum supported MicroSD capacity? A: Local storage supports MicroSD cards with capacities up to 512 GB.
