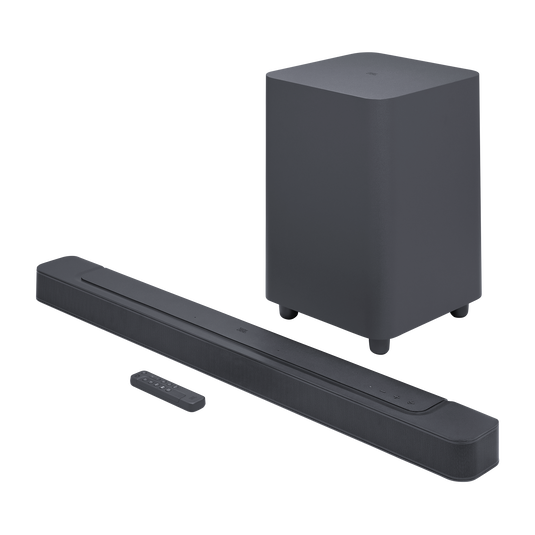

JBL Bar 500: 5.1-Channel soundbar with MultiBeam and Dolby Atmos - Black

General Specifications

Power supply

100 - 240V AC, ~ 50/60Hz

Networked standby power

< 2.0 W

Operating temperature

0°C - 45 °C

Audio Specifications

Total speaker power output (Max @THD 1%)

590W

Soundbar output power (Max @THD 1%)

290W

Subwoofer output power (Max. @THD 1%)

300 W

Soundbar transducer

4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters

Subwoofer transducer

10” (260mm)

Frequency response

35Hz - 20kHz (-6dB)

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D)

1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’

Subwoofer dimensions (W x H x D)

305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight

2.8kg/ 6.2 lbs

Subwoofer weight

10 kg / 22 lbs

Packaging dimensions (W x H x D)

1105 x 370 x 475 mm/ 43.5" x 14.6" x 18.7"

Packaging Weight

16.2 kg / 35.6 lbs

Control and Connection Specifications

USB port

Type A

USB rating

5V DC, 0.5A

Supporting file format

MP3

MP3 codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 - 48 kHz

MP3 bitrate

80 - 320 kpbs

Bluetooth version

5.0

Bluetooth profile

A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range

2400 MHz – 2483.5 MHz

Bluetooth transmitter power

<15 dBm (EIRP)

Wi-Fi network

IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range

2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power

< 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range

5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power

5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range

2406 - 2474MH

2.4G wireless transmitter power

＜10dBm (EIRP）

Video Specifications

HDMI video input

1

HDMI video output (with Enhanced Audio Return Channel, eARC)

1

HDMI HDCP version

2.3

HDR pass through

HDR10, Dolby Vision

Features

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

590W output power

With 590 watts of total system output power, the JBL Bar 500 transforms your movies, music and games into immersive sound experiences.
