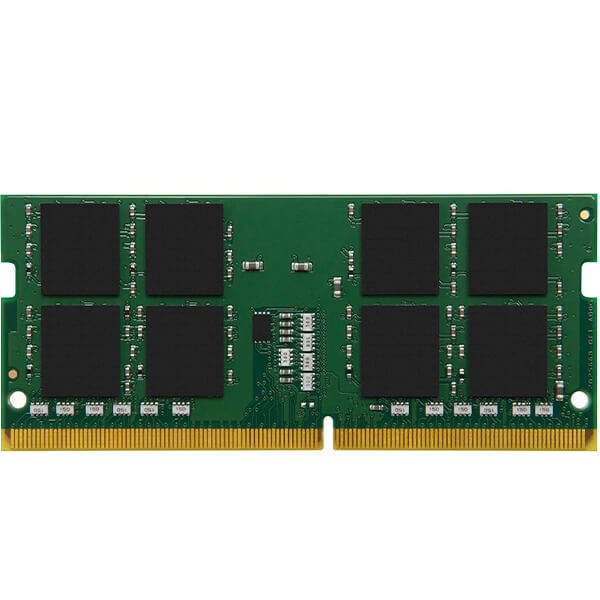

Kingston 16GB DDR4 3200MHz Notebook RAM Nominal and dynamic on-die termination (ODT) for Data, Strobe, And Mask Signals Low-power auto self-refresh (LPASR Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single rank On-board I2 serial presence-detect (SPD) EEPROM Power Supply: VDD = 1.2V Typical Capacities Single 16GB Frequencies 3200MHz Latencies Cl22 Voltage 1.2V Operating temperature 0°C to 85°C Cl(idd 22 Cycles For More Information Click Here Kingston 16GB DDR4 3200MHz Notebook RAM This document describes ValueRAM's KVR32S22S6/8 as a 1Gx 64-bit (16GB) DDR4-3200 CL22 SDRAM (SynchronousDRAM), 1Rx16, memory module, based on four 1G x 16-bitFBGA components. The SPD is programmed to JEDECstandard latency DDR4-3200 timing of 22-22-22 at 1.2V. This260-pin SODIMM uses gold contact fingers The electrical andmechanical specifications are as follows On-board I2 serial presence-detect (SPD) EEPROM 8 Internal Banks; 2 Groups Of 4 Banks Each Fixed burst chop (BC) of 4 and burst length (BL) of 8 Selectable BC4 or BL8 on-the-fly (OTF Fly-by topology Terminated control command and address bus PCB: Height 1.18” (30.00mm RoHS Compliant and Halogen-Free For More Kingston Products Click Here Memory Specification Ram Capacity 16GB Ram Type DDR4 Clock Speed 3200 MHz Latency Cl22 Voltage 1.2V RGB Kingston Warranty Warranty 1-Year Add a review
Specifications
| General Feature |
Frequencies 3200MHz |
