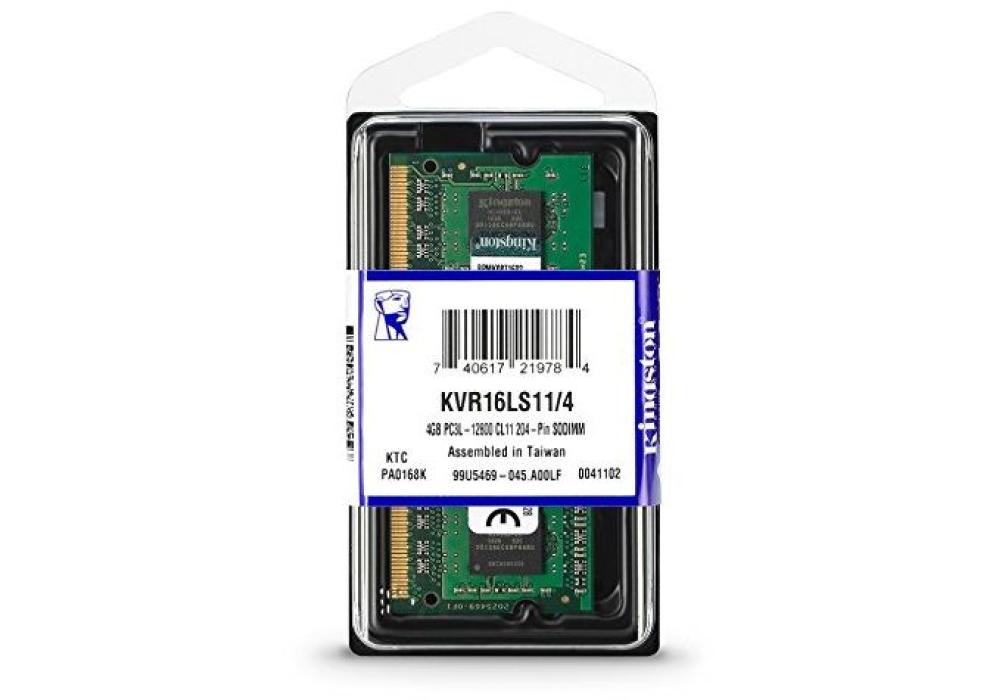

Kingston Ram for Laptop 4GB DDR3L 1600 /12800

This document describes ValueRAM's 512M x 64-bit (4GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low voltage, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

● JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply

● VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)

● 800MHz fCK for 1600Mb/sec/pin

● 8 independent internal bank

● Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5

● Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

● 8-bit pre-fetch

● Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]

● Bi-directional Differential Data Strobe

● Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)

● On Die Termination using ODT pin

● Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE ≤ 95°C

● Asynchronous Reset

● PCB: Height1.18” (30mm), double sided component

● Lead Free RoHS Compliant
