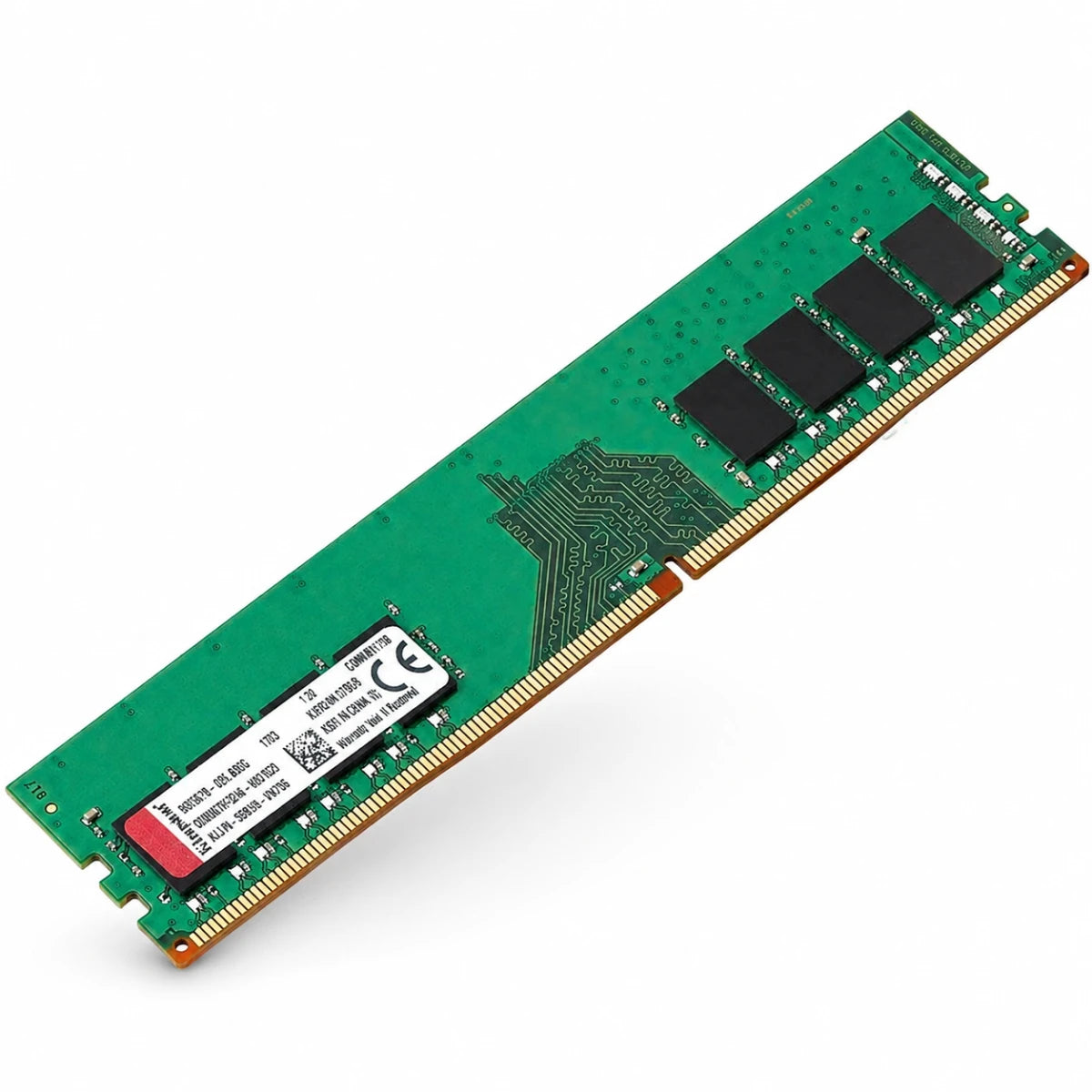

Kingston ValueRAM KVR32N22S8/16 16GB DDR4-3200 CL22 288-Pin DIMM

Kingston ValueRAM KVR32N22S8/16 is a 16 GB DDR4-3200 SDRAM memory module with a 1Rx8 single-rank configuration and 288-pin DIMM form factor. It is a non-ECC, unbuffered module designed with a 2G x 64-bit organization for compatible desktop systems. The module is based on eight 2G x 8-bit FBGA components and its SPD is programmed to JEDEC DDR4-3200 timing of at 1.2 V. Gold conta fingers and Kingston ValueRAM specifications provide a standard DDR4 memory option for compatible systems. Key Features 16 GB Capacity: 2G x 64-bit DDR4 SDRAM memory organization. DDR4-3200: JEDEC-programmed DDR4 memory operating at 3200 MT/s. CL22 Timing: Programmed to timing at 1.2 V. Single-Rank 1Rx8: Built with eight 2G x 8-bit FBGA components. Non-ECC Unbuffered: Standard 288-pin DIMM configuration for compatible systems. Compliance: RoHS compliant and halogen-free. Technical Specifications Component Specification Kingston Series ValueRAM Model KVR32N22S8/16 Capacity 16 GB Memory Type DDR4 SDRAM Memory Speed DDR4-3200 / 3200 MT/s PC Rating PC4-3200 CAS Latency CL22 JEDEC Timing at 1.2 V Organization 2G x 64-bit Rank 1Rx8, Single-Rank DRAM Density 16 Gbit Components Eight 2G x 8-bit FBGA components ECC Non-ECC Buffering Unbuffered Form Factor 288-pin DIMM Voltage 1.2 V Typical Contacts Gold conta fingers PCB Height 31.25 mm Operating Temperature 0°C to +85°C Storage Temperature -55°C to +100°C Compliance RoHS Compliant, Halogen-Free Compatibility & Important Information This module uses a 288-pin DDR4 DIMM form factor and is non-ECC and unbuffered. The module is configured as 1Rx8 single-rank with 16 Gbit DRAM density. Its SPD is programmed to JEDEC DDR4-3200 timing of at 1.2 V. Confirm that the target system supports DDR4 288-pin non-ECC unbuffered DIMMs and the required memory capacity before purchase. Produ Specifications Manufacturers Link https://www.kingston.com/en/memory/search?partid=KVR32N22S8/8 Memory Specifications Type DDR4 Capacity 16 GB Cas Latency Speed 3200 MHZ Timing Voltage 1.2V Heat Spreader RGB Lighting Please to review Q: What capacity is the Kingston KVR32N22S8/16? A: It is a 16 GB DDR4 SDRAM memory module. Q: What memory speed does this module support? A: Kingston specifies the module for DDR4-3200 operation at 3200 MT/s. Q: Is KVR32N22S8/16 ECC memory? A: No. Kingston specifies this model as Non-ECC and Unbuffered. Q: What is the latency of this memory module? A: It is CL22, with the SPD programmed to JEDEC DDR4-3200 timing of at 1.2 V. Q: Is this a single-rank or dual-rank module? A: KVR32N22S8/16 is a 1Rx8 single-rank module. Q: What form factor does this memory use? A: It uses a 288-pin DDR4 DIMM form factor. Q: What operating voltage does it use? A: The module is specified for 1.2 V typical operation. Q: What should I check before installing this memory? A: Confirm that the system supports 288-pin DDR4 Non-ECC Unbuffered DIMM memory and supports a 16 GB module with the required memory specifications.
