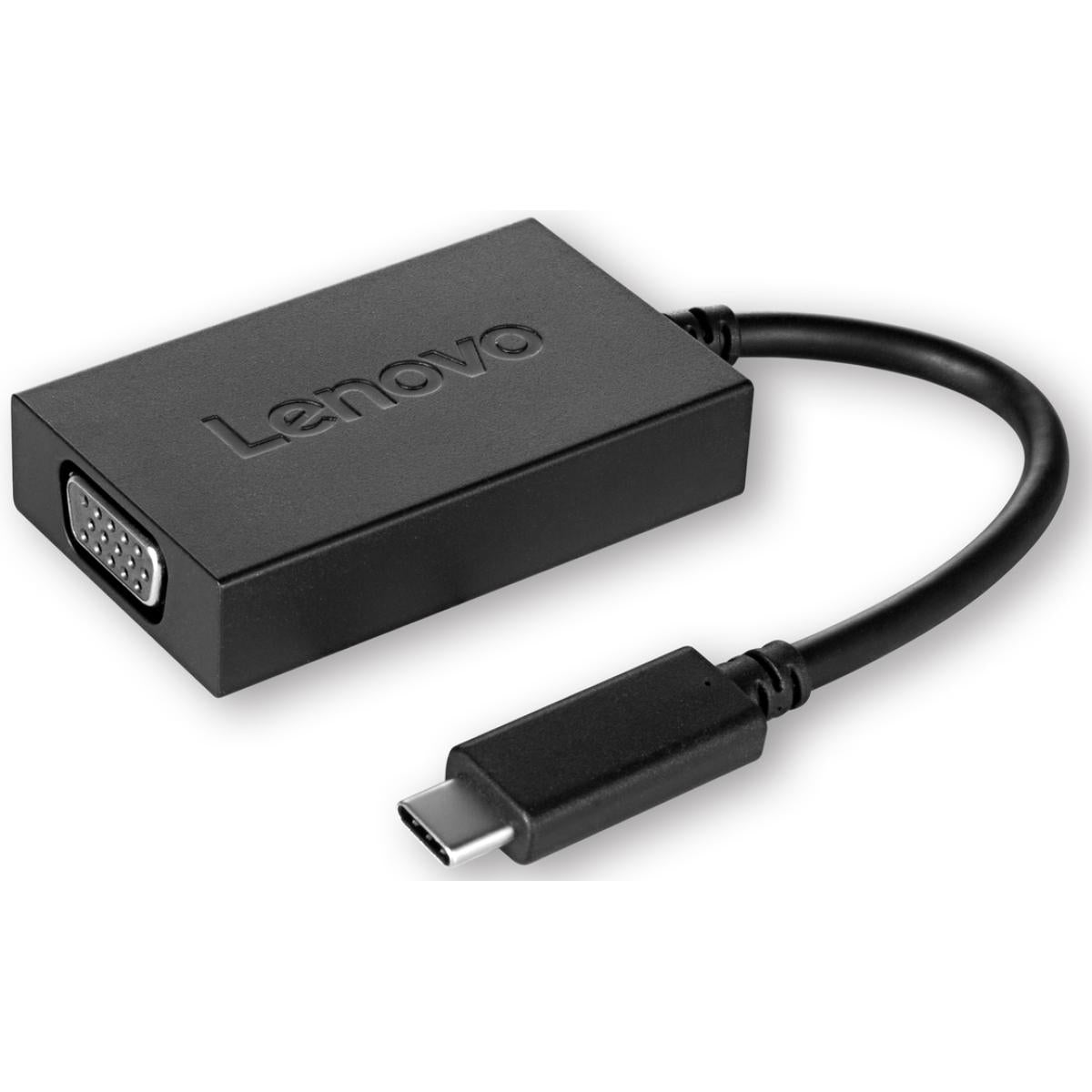

Technical Information Electrical Specifications The USB-C to VGA Adapter has a built-in DP to VGA converter by which 2 lanes DP signals are transferred to VGA signal. Max power consumption: 5V +/- 5%, 1.5A Over voltage protection: 5.8V Have a VGA video output, the display supports extend, mirror mode. The Maximum bandwidth supported by VGA port up to 5.4G bit/s Wide set of display resolutions is supported: WUXGA: 1920*1200, 60 Hz, 18 bpp, 193 MHz pixel clock rate WUXGA: 1920*1200, 60 Hz (reduced blanking), 24 bpp, 154 MHz pixel clock rate UXGA: 1600*1200, 60 Hz, 162 MHz pixel clock rate SXGA: 1280*1024, 60 Hz, 108 MHz pixel clock rate XGA: 1024*768, 60 Hz, 65 MHz pixel clock rate SVGA: 800*600, 60 Hz, 40 MHz pixel clock rate VGA: 640*480, 60 Hz, 25 MHz pixel clock rate Detail resolutions supporting depends on each monitor’s EDID information. EDID management follows VESA spec. Hot plug: support HPD VGA fully meet VESA 1.1 Physical Specifications Use both metric systems Net Dimensions & Weight: 222*27*12mm & 44g Include length of the cable (keyboards, audio etc.): 222+/-10mm Gross Dimensions & Weight: 148*104*24mm & 144g Please to review
