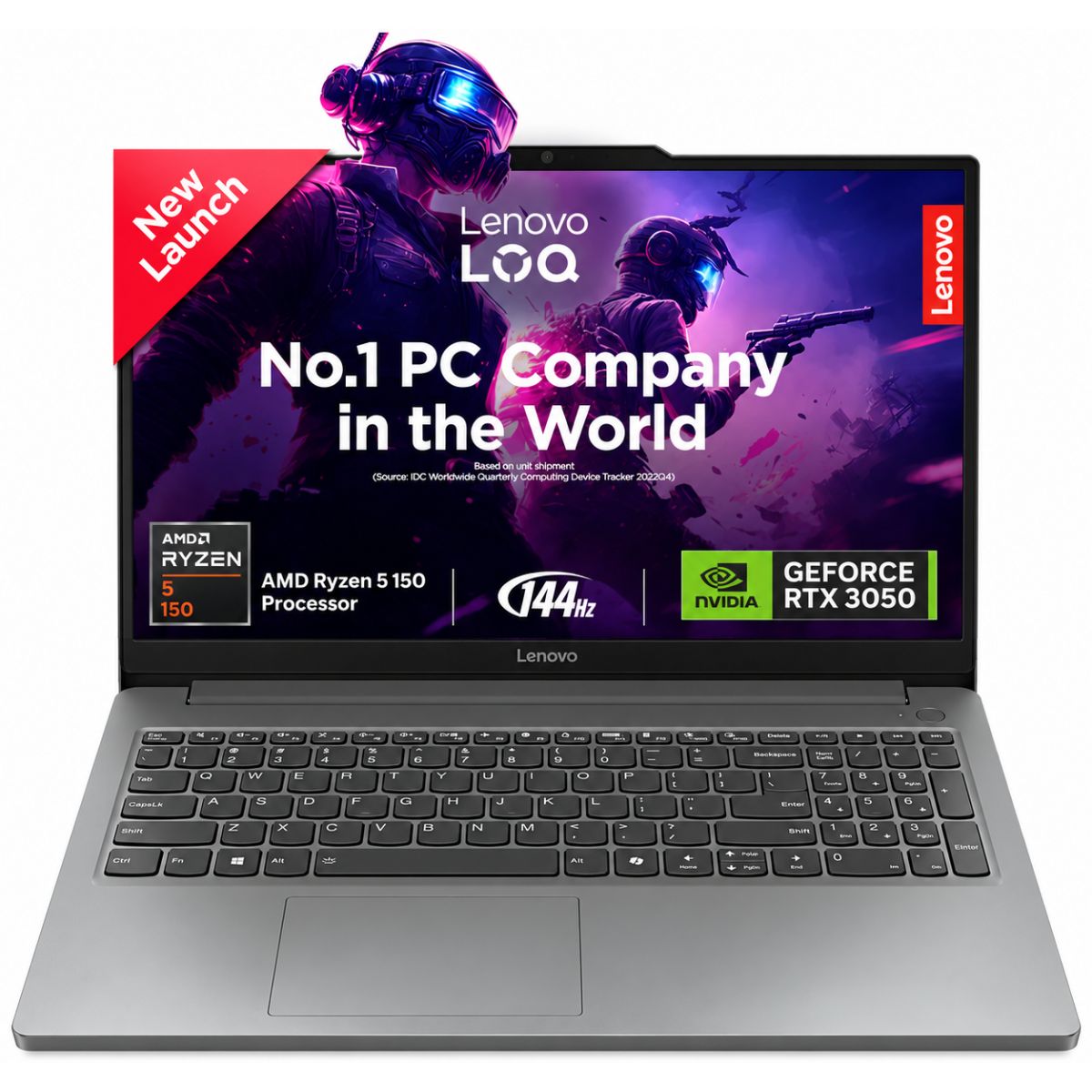

The Lenovo LOQ 15ARP10E 83S000F5AX is a 15.6-inch gaming laptop built around the AMD Ryzen 5 150 processor and NVIDIA GeForce RTX 3050 6 GB graphics. This exa configuration combines 16 GB DDR5-4800 memory with a 512 GB PCIe 4.0 NVMe SSD and a Full HD 144 Hz IPS display. The Luna Grey chassis includes Wi-Fi 6, Gigabit Ethernet, USB-C and HDMI 2.1 connectivity, a 57.5 Wh battery and a 135 W Slim Tip power adapter. This MTM is supplied without an operating system and uses a non-backlit Arabic keyboard. Key Features AMD Ryzen 5 150: 6-core, 12-thread processor running at 3.3 GHz with boost up to 4.55 GHz. GeForce RTX 3050 6 GB: NVIDIA discrete graphics with 6 GB GDDR6, 1492 MHz boost clock and 65 W TGP. 15.6-inch FHD 144 Hz: IPS anti-glare display with 1920 × 1080 resolution, 300 nits, 100% sRGB and AMD FreeSync. 16 GB DDR5 + 512 GB SSD: One 16 GB DDR5-4800 SODIMM and a 512 GB M.2 PCIe 4.0 NVMe SSD. Modern Connectivity: Wi-Fi 6, Bluetooth 5.2, Gigabit Ethernet, USB-C, dual USB-A and HDMI 2.1. Gaming Audio & Cooling Platform: Stereo 2 W × 2 speakers optimized with Nahimic Audio and Lenovo LA1 AI chip. Technical Specifications Component Specification Lenovo Series LOQ Model LOQ 15ARP10E MTM 83S000F5AX Processor AMD Ryzen 5 150, 6 Cores / 12 Threads, 3.3 GHz / 4.55 GHz, 3 MB L2 / 16 MB L3 Graphics NVIDIA GeForce RTX 3050 6 GB GDDR6 GPU Boost Clock 1492 MHz GPU TGP 65 W GPU AI Performance 142 AI TOPS Chipset AMD SoC Platform Memory 1 × 16 GB SODIMM DDR5-4800 Memory Slots 2 × DDR5 SODIMM, Dual-Channel Capable Lenovo Memory Offering Up to 16 GB DDR5-4800 Storage 512 GB SSD M.2 2242 PCIe 4.0 x4 NVMe Storage Slots 2 × M.2 2242 PCIe 4.0 x4 Storage Support Up to 2 × M.2 SSD, Up to 1 TB Each Display 15.6-inch FHD IPS, Anti-Glare Resolution 1920 × 1080 Refresh Rate 144 Hz Brightness 300 nits Color Gamut 100% sRGB Adaptive Sync AMD FreeSync Touchscreen Keyboard Non-Backlit, Arabic Camera HD 720p with Privacy Shutter Audio Realtek ALC3287 HD Audio, Stereo 2 W × 2 Speakers with Nahimic Audio Wireless Wi-Fi 6, 802.11ax 2 × 2 Bluetooth Bluetooth 5.2 Ethernet 100/1000M RJ45 USB-A 2 × USB 5 Gbps / USB 3.2 Gen 1 USB-C 1 × USB-C 5 Gbps with USB PD 65–100 W HDMI 1 × HDMI 2.1, Up to 8K / 60 Hz Card Reader 3-in-1 Card Reader Audio Jack Battery 57.5 Wh Power Adapter 135 W Slim Tip, 3-Pin AI Chip Lenovo LA1 Security Firmware TPM 2.0, Camera Privacy Shutter Operating System None Dimensions 359.2 × 236 × 19.9–22.95 mm Weight Starting at 1.8 kg Case Material PC-ABS Top / PC-ABS Bottom Color Luna Grey Service Coverage 2Y Courier/Carry-in Upgrade from 1Y Courier/Carry-in EAN / UPC / JAN Green Certifications ErP Lot 6/26, RoHS Compliant Compatibility & Important Information This page is specifically for Lenovo MTM 83S000F5AX . Specifications from other LOQ 15ARP10E configurations should not be applied to this listing. This exa configuration ships with no operating system and no bundled software. The keyboard on this MTM is Arabic and non-backlit Lenovo lists two DDR5 SODIMM slots with dual-channel capability, while the tested current Lenovo memory offering for this configuration is up to 16 GB DDR5-4800. The system provides two M.2 2242 PCIe 4.0 x4 slots and Lenovo lists support for up to two M.2 SSDs, up to 1 TB per SSD. The USB-C port is specified as USB 5 Gbps with USB PD 65–100 W. Lenovo does not list DisplayPort output for this USB-C port in the supplied specification. The weight is listed as starting at 1.8 kg and may vary according to component sourcing and manufacturing variation. Processor Specifications AMD Processor Type AMD Ryzen 5 Processor Generation Ryzen 100 Processor Model AMD Ryzen 5 ™ 150 Processor Speed up to 4.55GHz Max Turbo Number Of Cores 6 - Cores Processor Cache 19 MB Cache Memory Memory Size 16 GB Memory Type DDR5 Graphic Card Specifications Graphic Manufacturer Nvidia Graphic Memory Size 6 GB DDR6 Graphic Card Model NVIDIA GeForece RTX 3050 Graphic Type Dedicated Card Display Display Size 15.6" Display Technology IPS Display Type Full HD Resolution 1920 x 1080 Refresh Rate 144 Hz Storage Storage Technology SSD Storage Size 512 GB Inputs & Outputs Optical Drive Type None Ports 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-C® (USB 5Gbps) with USB PD 65-100W 1x HDMI® 2.1 up to 8K/60Hz 1x Ethernet (RJ-45) 1x Card reader 1x Slim tip Power connector Camera HD 720p with Privacy Shutter Keyboard Arabic / English Backlit Keyboard Keyboard Backlight Yes Connectivity Specification Communications Integrated 10/100/1000 GbE LAN Wi-Fi ax) (Dual band) 2*2 Bluetooth® 5.2 Features Color Luna Grey Battery Pack 57.5 Whrs Li-ion Battery Operating System Operating System Dos Warranty Warranty 1 Year Physical Specifications Weight 2.30kg Width X Depth X Height 26.90cm x 35.90cm x 2.45cm Please to review Q: Which processor does Lenovo LOQ 83S000F5AX use? A: It uses the AMD Ryzen 5 150 with 6 cores, 12 threads, 3.3 GHz base frequency and up to 4.55 GHz boost frequency. Q: Which graphics card is installed? A: This exa MTM has an NVIDIA GeForce RTX 3050 with 6 GB GDDR6 memory, a 1492 MHz boost clock and 65 W TGP. Q: What are the display specifications? A: It has a 15.6-inch Full HD IPS anti-glare display with 1920 × 1080 resolution, 144 Hz refresh rate, 300 nits brightness, 100% sRGB and AMD FreeSync. Q: Does this laptop come with Windows? A: No. Lenovo specifies the operating system as None for MTM 83S000F5AX. Q: Is the keyboard backlit? A: No. This exa configuration uses a non-backlit Arabic keyboard. Q: Can the storage be expanded? A: Lenovo lists two M.2 2242 PCIe 4.0 x4 slots and support for up to two M.2 SSDs, with up to 1 TB supported per drive under its tested storage offering. Q: Does it have USB-C and HDMI? A: Yes. It includes one USB-C 5 Gbps port with USB PD 65–100 W and one HDMI 2.1 port supporting up to 8K at 60 Hz. Q: What service coverage is included? A: Lenovo lists a 1-year Courier/Carry-in base warranty with an included upgrade to 2-year Courier/Carry-in service for this exa MTM.
