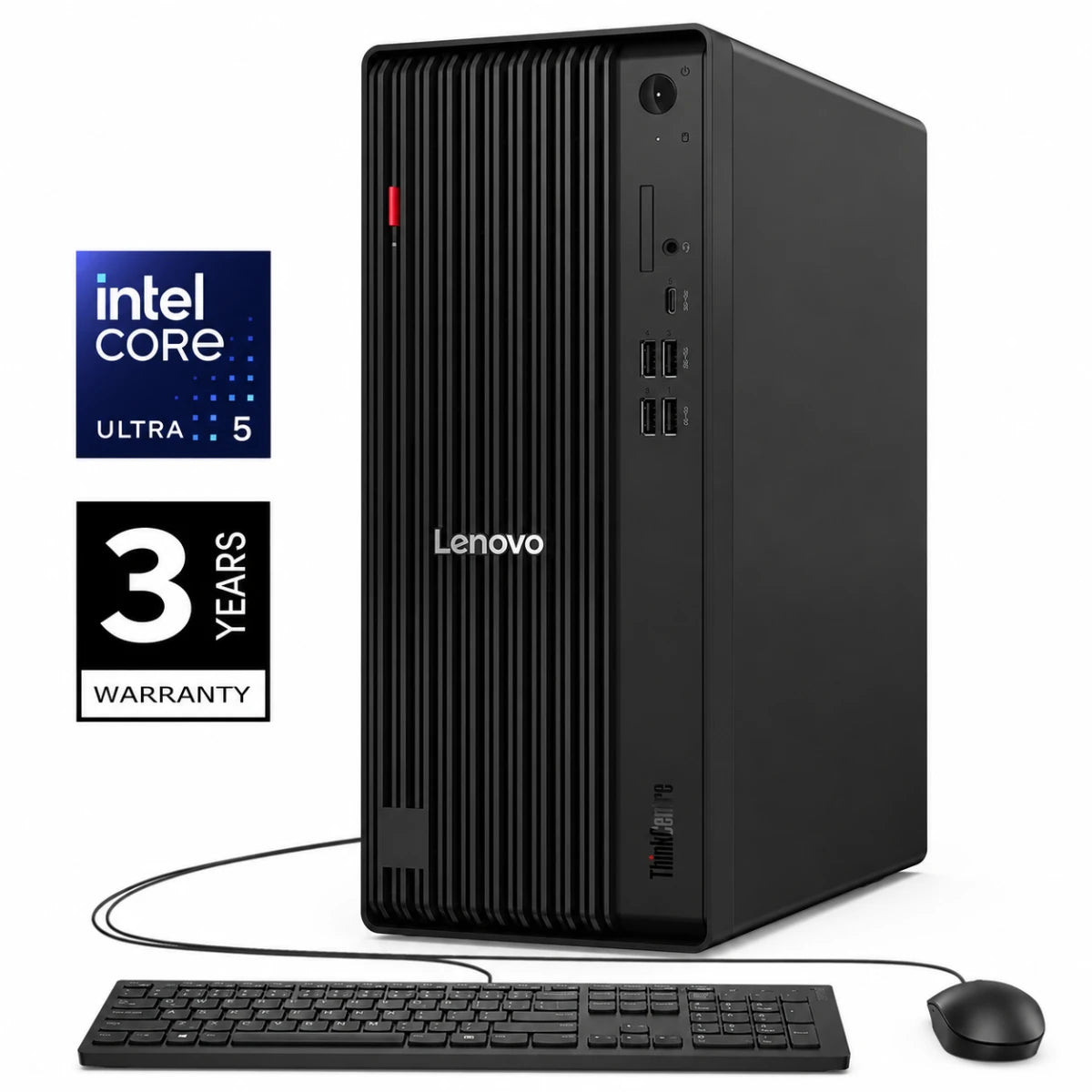

The Lenovo ThinkCentre M70t Gen 6 is a business tower desktop powered by the Intel Core Ultra 5 225 processor with 10 cores, integrated Intel Graphics and an integrated Intel AI Boost NPU. This configuration combines 16 GB DDR5-5600 memory with a 512 GB PCIe 4.0 NVMe SSD for a modern business computing platform. Built around the Intel Q870 chipset, the 13.6 L tower provides extensive USB connectivity, HDMI and dual DisplayPort outputs, Gigabit Ethernet and Intel Wi-Fi 6E with Bluetooth 5.3. Four DDR5 UDIMM slots and multiple storage and PCIe expansion options provide room for future system upgrades. Key Features Intel Core Ultra 5 225: 10-core processor with 6 Performance-cores and 4 Efficient-cores, 10 threads and up to 4.9 GHz maximum turbo frequency. Integrated AI Processing: Intel AI Boost NPU delivers up to 13 TOPS. 16 GB DDR5 Memory: One 16 GB DDR5-5600 UDIMM installed, with four DDR5 UDIMM slots and support for up to 128 GB. PCIe 4.0 NVMe Storage: 512 GB M.2 2280 PCIe 4.0 x4 NVMe SSD with Opal 2.0 support. Business Connectivity: Intel Wi-Fi 6E AX211, Bluetooth 5.3, Gigabit Ethernet, HDMI 2.1 TMDS and dual DisplayPort 1.4a. Expandable Tower Platform: 13.6 L chassis with PCIe and M.2 expansion options for future configuration needs. Technical Specifications Component Specification Lenovo Model ThinkCentre M70t Gen 6 Part Number 12YM000DEQ Form Factor Tower, 13.6 L Processor Intel Core Ultra 5 225 CPU Cores / Threads 10 Cores (6P + 4E) / 10 Threads Maximum Turbo Up to 4.9 GHz Processor Cache 20 MB Intel Smart Cache NPU Integrated Intel AI Boost, up to 13 TOPS Graphics Integrated Intel Graphics Chipset Intel Q870 Memory 16 GB DDR5-5600 UDIMM, 1 x 16 GB Memory Slots 4 x DDR5 UDIMM, dual-channel capable Maximum Memory Up to 128 GB DDR5 Storage 512 GB M.2 2280 PCIe 4.0 x4 NVMe SSD, Opal 2.0 Wireless Intel Wi-Fi 6E AX211, 802.11ax 2x2 Bluetooth Bluetooth 5.3 Ethernet Integrated 100/1000M Ethernet Front Ports Rear Ports 4 x USB-A 5 Gbps, 1 x HDMI 2.1 TMDS, 2 x DisplayPort 1.4a HBR3, 1 x RJ-45, 1 x 3.5 mm line-out Audio Realtek ALC623-CG HD Audio, 1 x 2 W Speaker Power Supply 260 W, 90% Keyboard USB Traditional Keyboard, Black, Arabic Mouse USB Calliope Mouse, Black Security Chip Discrete TPM 2.0, TCG Certified, FIPS 140-2 Certified Operating System No Operating System Preinstalled Dimensions 145 x 296 x 346 mm Weight Up to 5.7 kg Color Black Warranty Service 3-Year Courier / Carry-in Upgrade from 1-Year Courier / Carry-in Compatibility & Important Information Operating System: This exa configuration is supplied without a preinstalled operating system. Memory Expansion: Four DDR5 UDIMM slots are available, with support for up to 128 GB DDR5 based on Lenovo-tested memory offerings. Storage Expansion: The platform supports up to four drives, including up to two M.2 SSDs; the 2.5-inch HDD bay is intended for customer self-upgrade and requires the optional bay hardware. PCIe Expansion: Includes one full-height PCIe 4.0 x16 slot and two full-height PCIe 3.0 x1 slots. Display Connectivity: Integrated graphics can conne through the configured HDMI 2.1 TMDS and two DisplayPort 1.4a outputs. System Management: Lenovo specifies this exa configuration as Non-vPro. Processor Specifications Intel Processor Type Intel® Ultra 5 Processor Generation Series 2 Processor Model 225 Processor Speed up to 4.9GHz Number Of Cores 10 - Cores Processor Cache 42 MB Cache Memory Memory Size 16 GB Memory Type DDR5 Memory Slot (Total) Memory Bus 5600MHz Graphic Card Specifications Graphic Manufacturer Intel Graphic Memory Size Shared Memory Graphic Card Model Intel® UHD Graphics Graphic Type Integrated Storage Storage Technology SSD Storage Size 512 GB Inputs & Outputs Optical Drive Type Ports 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1) with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) one supports Smart Power On and USB Always On 1x HDMI® 2.1 TMDS 2x DisplayPort™ 1.4a (HBR3 DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) Audio High Definition Audio Connectivity Specification Bluetooth Adapter Yes Wireless Adapter Yes Communications Intel Ethernet LAN 10/100/1000 Features Color Black Multimedia Lenovo USB Keyboard + Lenovo Optical Mouse Motherboard Specs Chipset Intel® Q870 Chipset Operating System Operating System Dos Warranty Warranty 3 Years Please to review Q: Which processor is installed in the Lenovo ThinkCentre M70t Gen 6 12YM000DEQ? A: It includes the Intel Core Ultra 5 225 with 10 cores, 10 threads, up to 4.9 GHz maximum turbo frequency and 20 MB Intel Smart Cache. Q: Does this configuration include an NPU? A: Yes. It has integrated Intel AI Boost rated at up to 13 TOPS. Q: How much memory is installed? A: It includes one 16 GB DDR5-5600 UDIMM. The system has four DDR5 UDIMM slots and supports up to 128 GB DDR5 based on Lenovo-tested memory offerings. Q: What storage is included? A: The system includes a 512 GB M.2 2280 PCIe 4.0 x4 NVMe SSD with Opal 2.0 support. Q: Does the ThinkCentre M70t Gen 6 include Wi-Fi and Bluetooth? A: Yes. This configuration includes Intel Wi-Fi 6E AX211 with 802.11ax 2x2 connectivity and Bluetooth 5.3. Q: Which display outputs are available? A: The rear panel includes one HDMI 2.1 TMDS port and two DisplayPort 1.4a ports. Q: Is an operating system preinstalled? A: No. Lenovo specifies this exa configuration without a preinstalled operating system. Q: What warranty service is included with 12YM000DEQ? A: Lenovo specifies a 3-year Courier / Carry-in upgrade from the original 1-year Courier / Carry-in service.
