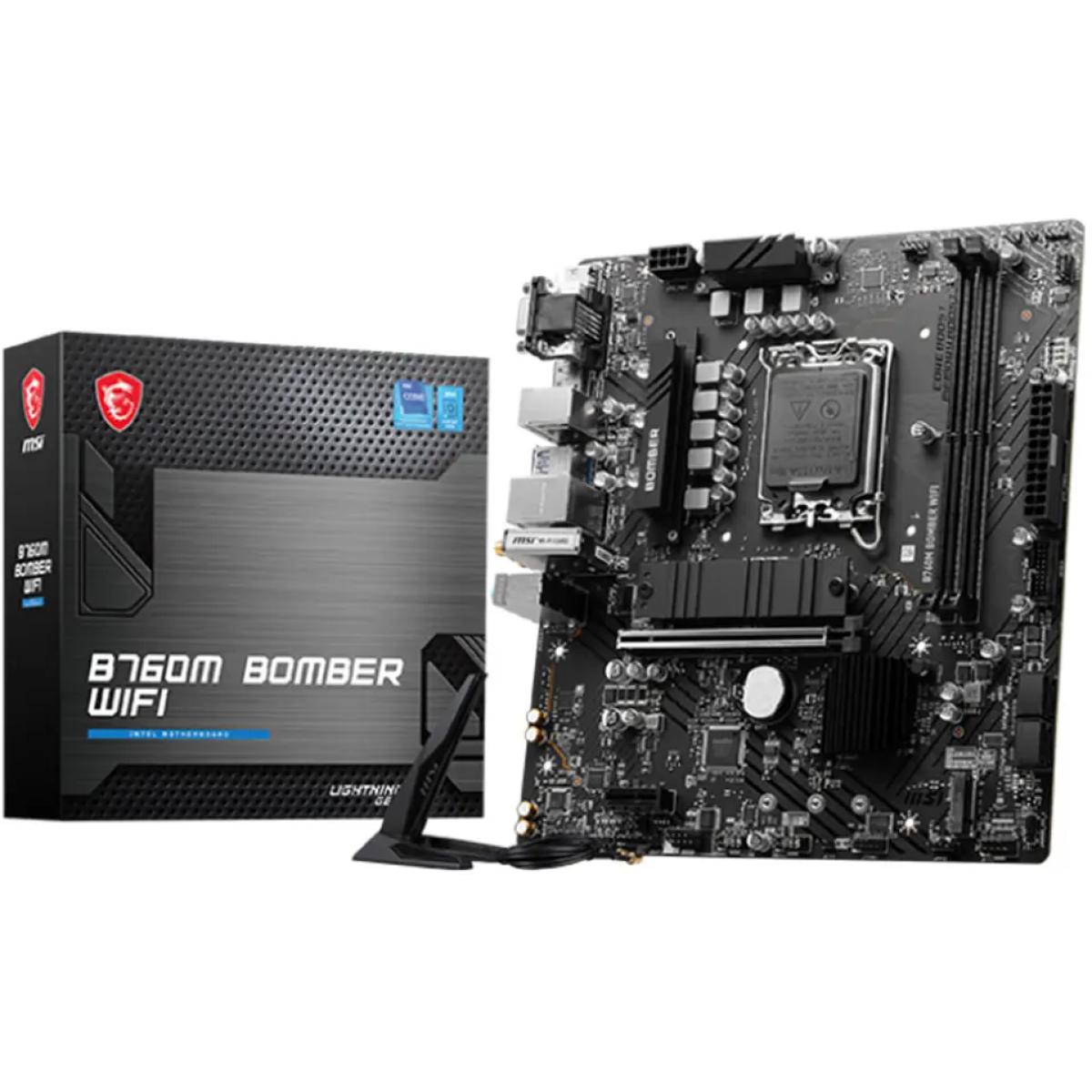

Msi B760m Bomber Wifi Ddr5 Intel 14th/13th Gen Motherboard Pcie 4.0 Ddr5 2xm.2 Gen4 X4 Pcie 4.0 Mainboard

Model B760m Bomber Wifi Chipset Intel B760 Cpu Support Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold, And Celeron Processors Lga 1700 Memory 2x Ddr5, Maximum Memory Capacity 96gb Memory Ddr5 6400+(oc)/ 6200(oc)/ 6000(oc)/ 5800(oc)/ 5600(jedec)/ 5400(jedec)/ 5200(jedec)/ 5000(jedec)/ 4800(jedec) Max. Overclocking Frequency: 1dpc 1r Max Speed Up To 6400+ Mhz 1dpc 2r Max Speed Up To 5600+ Mhz Onboard Graphics 1x Hdmi™ Support Hdmi™ 2.1 With Hdr, Maximum Resolution Of 4k 60hz 1x Displayport Support Dp 1.4, The Maximum Resolution Of 4k 60hz 1x D Sub Support Vga, Maximum Resolution Of 2048×1536 50hz, 2048×1280 60hz, 1920×1200 60hz Expansion Slot 1x Pci E X16 1x Pci E X1 Pci_e1 Gen Pcie 4.0 Supports Up To (from Cpu) Pci_e2 Gen Pcie 4.0 Supports Up To (from Chipset) Storage 2x M.2 (qty) M.2_1 (from Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260/2242 Devices M.2_2 (from Chipset) Supports Up To Pcie 4.0 X4 / Sata Mode, Supports 2280/2260/2242 Devices 4x Sata 6g (qty) * Sata7 Will Be Unavailable When Installing M.2 Sata Ssd In The M2_2 Slot. Raid Supports Raid 0, Raid 1, Raid 5, And Raid 10 For Sata Storage Devices Usb 2x Usb 2.0 4x Usb 2.0 4x Usb 3.2 Gen1 Type A 2x Usb 3.2 Gen1 Type A Lan Realtek Rtl8125b 2.5gbps Lan Wireless / Bluetooth Intel Wi Fi 6e The Wireless Module Is Pre Installed In The M.2 (key E) Slot Supports Mu Mimo Tx/rx, 2.4ghz / 5ghz / 6ghz (160mhz) Up To 2.4gbps Supports 802.11 A/ B/ G/ N/ Ac/ Axsupports Bluetooth 5.3, Fips, Fisma Audio Realtek Alc897 Codec 7.1 Channel High Definition Audio Internal I/o 1x Power Conneor(atx_pwr) 1x Power Conneor(cpu_pwr) 1x Cpu Fan 2x System Fan 2x Front Panel (jfp) 1x Chassis Intrusion (jci) 1x Front Audio (jaud) 1x Com Port (jcom) 2x Addressable V2 Rgb Led Conneor (jargb_v2) 1x Rgb Led Conneor(jrgb) 1x Tpm Pin Header(support Tpm 2.0) 4x Usb 2.0 2x Usb 3.2 Gen1 Type A Led Feature 4x Ez Debug Led Back Panel Ports Hdmi™ Vga Displayport Keyboard / Mouse 2.5g Lan Wi Fi / Bluetooth Audio Conneors Usb 2.0 Usb 3.2 Gen 1 5gbps (type A) Operating System Support For Windows 11 64 Bit, Windows 10 64 Bit Pcb Dimension (w × L) Matx 220mmx243.84mm Motherboard Specifications Cpu Support 13 & 14th Generation Intel Cpu Cpu Socket Type Lga 1700 Chipset Intel B760 Form Faor Atx Memory Type Ddr5 Memory Speed 6400 Mhz Maximum Memory 96 Gb Memory Slots 2 Slots M.2 Slots Yes Wireless Lan Yes Warranty Warranty 1 Years Asus Prime H610m K D4 Intel 12th Gen Motherboard Pcie 4.0 Ddr4 1xm.2 Slots Usb 3.2 Gen 1 Asus Prime Z790 P Wifi 6e Ddr5 Intel 13th&12th Gen Atx Motherboard 3x M.2 Thunderbolt 4 Rgb Lighting 279 219 Asus Prime B760 Plus D4 Intel (14th And 13th Gen) Atx Pcie 5.0 3xpcie 4.0 M.2 Ddr4 2.5gb Lan Usb 3.2 Gen 1 Type C,thunderbolt (usb4®) 149 119 Asus Rog Strix Z790 E Gaming Wifi 6e Intel 12th&13th Gen Motherboard Pcie 5.0 Ddr5 Thunderbolt 4 Support Up To 5xm.2 469 399 Asus Prime B760m K Ddr5 Intel 13th Gen Motherboard Pcie 4.0 2xm.2 2.5gb Ethernet Usb 3.2 Gen 1, Aura Sync 119 105 Msi Pro B760m E Ddr4 Intel 13th Gen Motherboard Pcie 4.0 Ddr4 1xm.2 Gen4 X4 Pcie 4.0 Mainboard Please To Review
