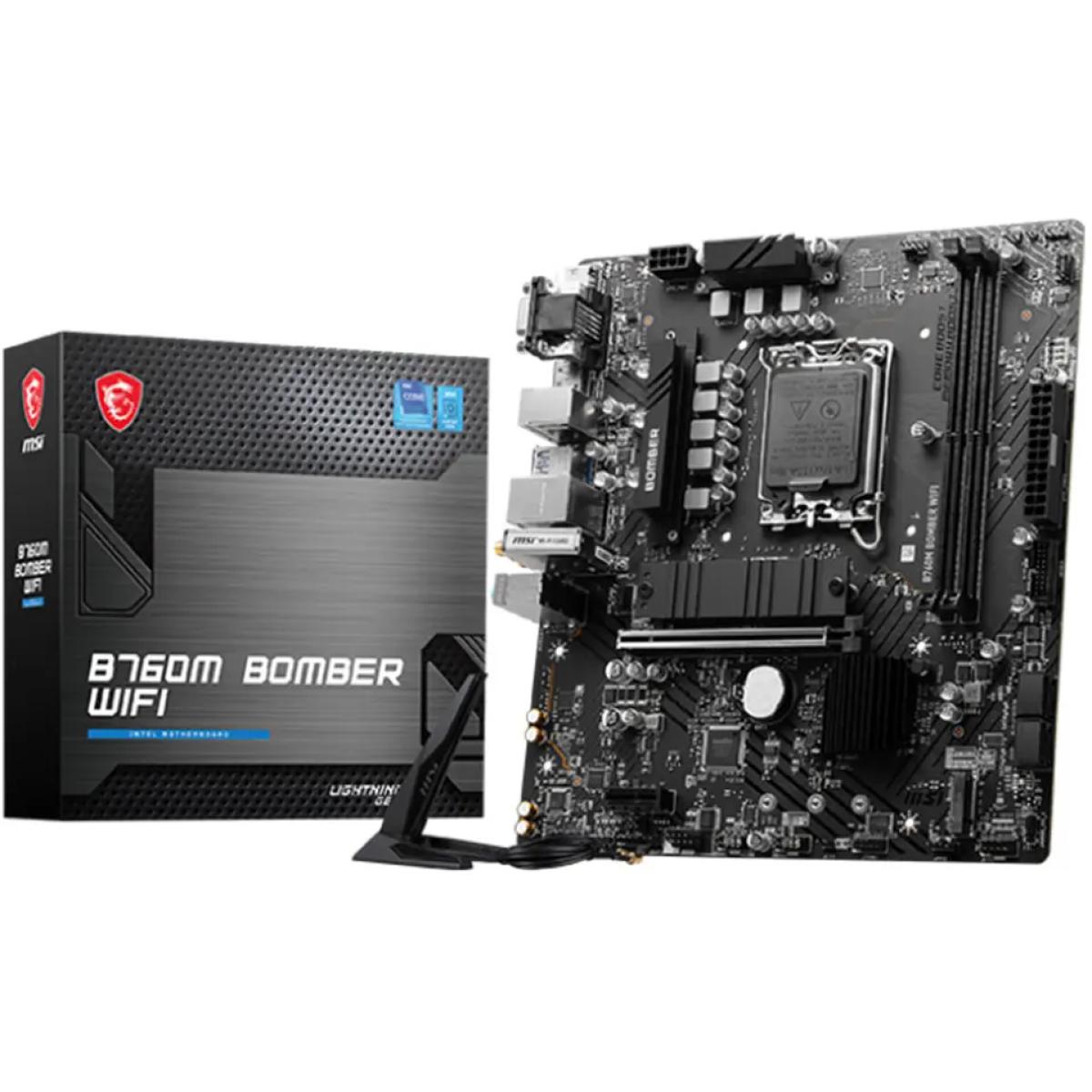

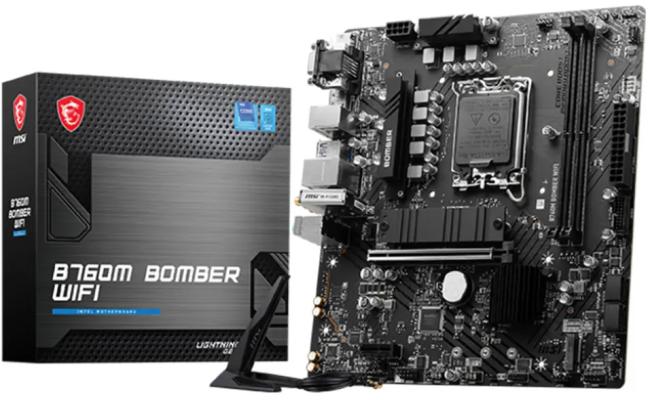

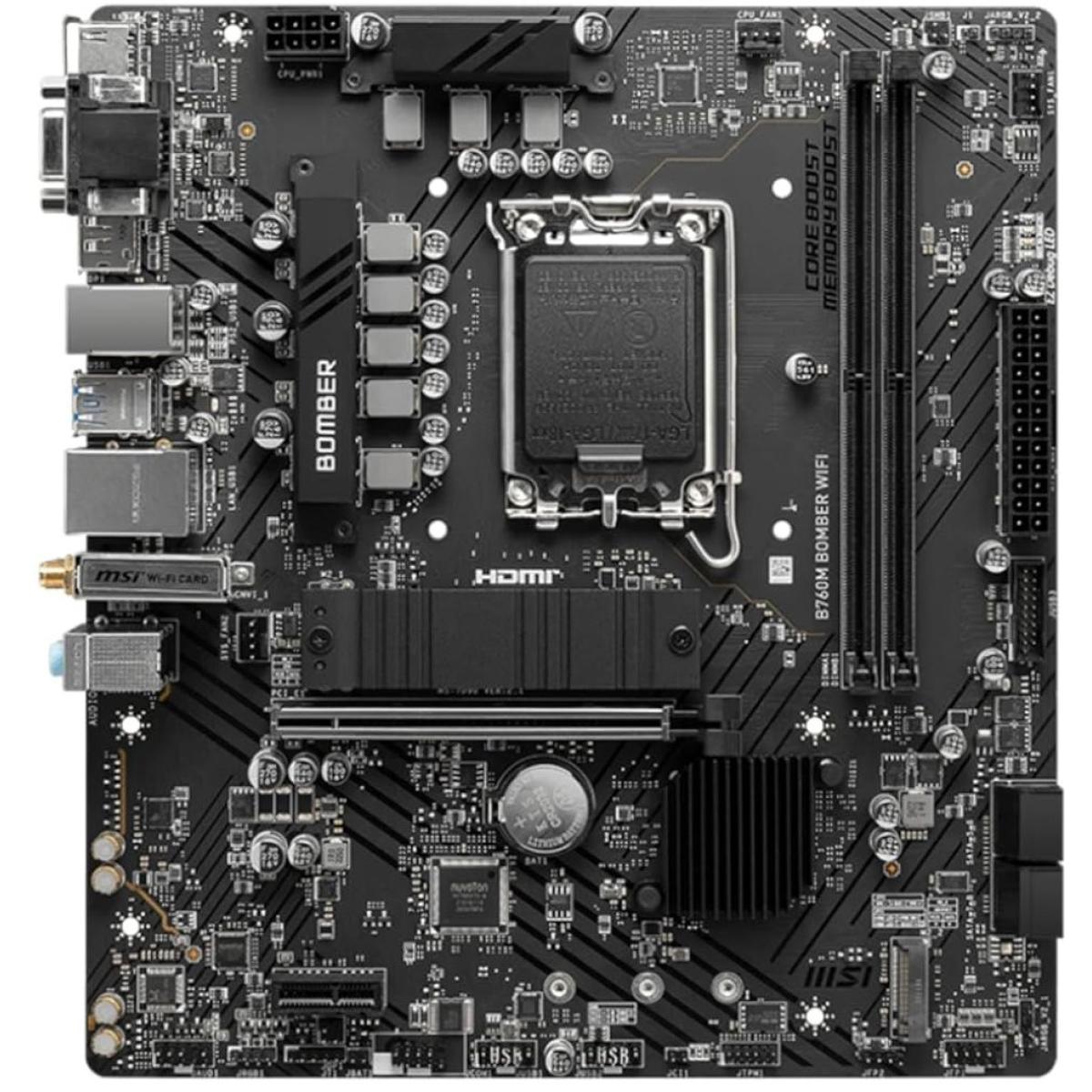

MSI B760M BOMBER WIFI DDR5 Intel 14th/13th Gen Motherboard PCIe 4.0 DDR5 2xM.2 Gen4 x4 PCIe 4.0 Mainboard

Model B760M BOMBER WIFI Chipset INTEL B760 CPU SUPPORT Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700 Memory 2x DDR5, Maximum Memory Capacity 96GB Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5600+ MHz Onboard Graphics 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz EXPANSION SLOT 1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) Storage 2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices USB 2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A LAN Realtek RTL8125B 2.5Gbps LAN WIRELESS / BLUETOOTH Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA Audio Realtek ALC897 Codec 7.1-Channel High-Definition Audio Internal I/O 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A LED FEATURE 4x EZ Debug LED BACK PANEL PORTS HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit PCB Dimension (W × L) mATX 220mmx243.84mm Motherboard Specifications CPU Support 13 & 14th Generation Intel CPU CPU Socket Type LGA 1700 Chipset INTEL B760 Form Factor ATX Memory Type DDR5 Memory Speed 6400 MHz Maximum Memory 96 GB Memory Slots 2 Slots M.2 Slots Yes Wireless LAN Yes Warranty Warranty 1 years Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
