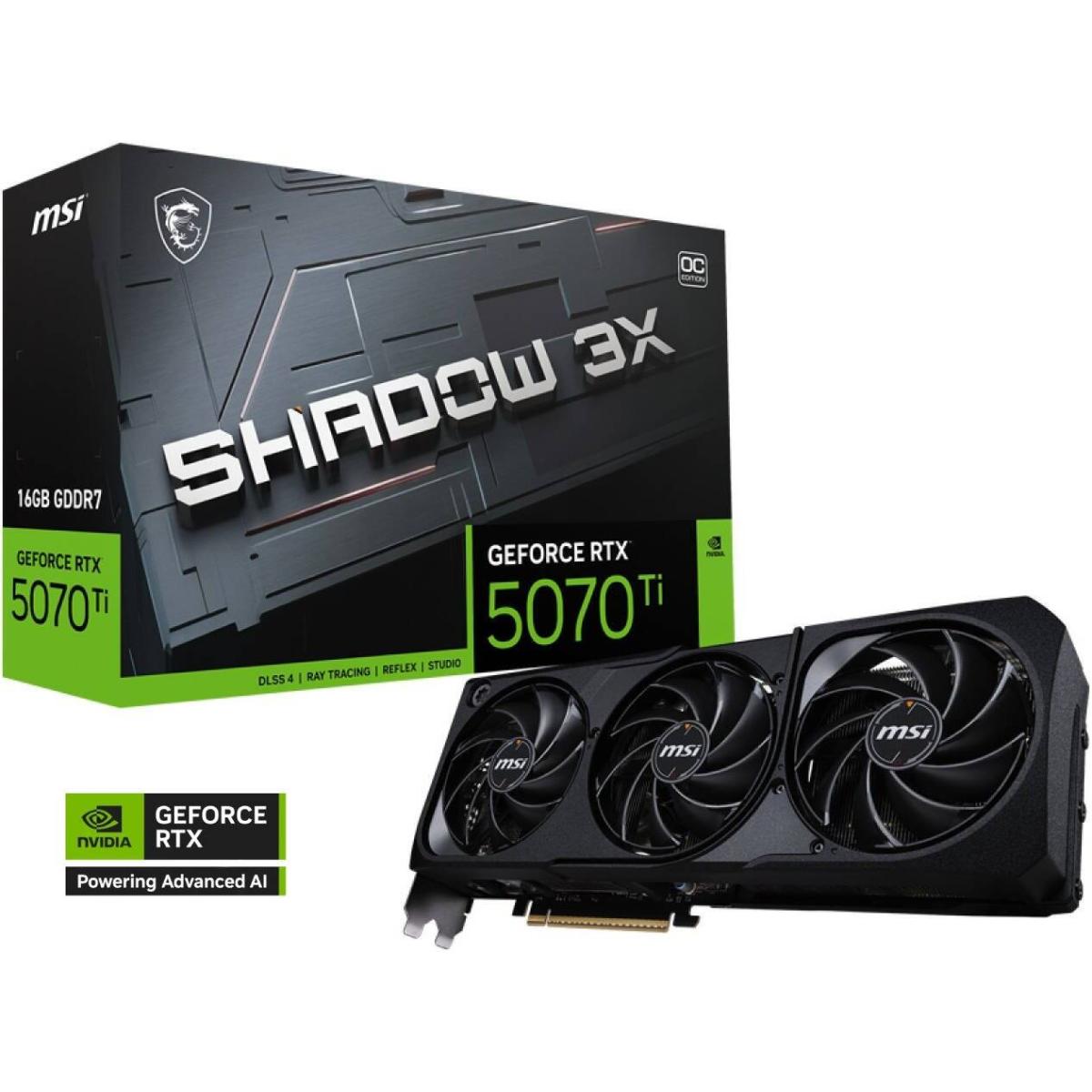

The MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC is an NVIDIA GeForce RTX 5070 Ti graphics card with 16GB of GDDR7 memory and a 256-bit memory bus. Its factory-overclocked configuration reaches a 2482 MHz boost clock, with an Extreme Performance setting of 2497 MHz through MSI Center. The card combines a triple-fan thermal design with TORX FAN 5.0, a nickel-plated copper baseplate, Core Pipes and a reinforcing backplate. It uses a PCI Express Gen 5 interface and provides three DisplayPort 2.1b outputs plus one HDMI output for up to four displays. Key Features GeForce RTX 5070 Ti: NVIDIA GPU with 8960 CUDA cores and PCI Express Gen 5 interface. 16GB GDDR7: 28 Gbps graphics memory with a 256-bit memory bus. Factory Overclocked: 2482 MHz boost clock and up to 2497 MHz Extreme Performance through MSI Center. Triple-Fan Cooling: Three-fan thermal design with TORX FAN 5.0, nickel-plated copper baseplate and Core Pipes. Display Connectivity: Three DisplayPort 2.1b outputs and one HDMI output with support for up to four displays. Reinforcing Backplate: Reinforced rear structure with an airflow vent for exhaust air. Technical Specifications Component Specification MSI Marketing Name GeForce RTX 5070 Ti 16G SHADOW 3X OC Model Name G507T-16S3C GPU NVIDIA GeForce RTX 5070 Ti CUDA Cores 8960 Interface PCI Express Gen 5 Boost Clock 2482 MHz Extreme Performance 2497 MHz via MSI Center Memory 16GB GDDR7 Memory Speed 28 Gbps Memory Bus 256-bit DisplayPort 3 × DisplayPort 2.1b HDMI 1 × HDMI; up to 4K 480Hz or 8K 120Hz with DSC Maximum Displays Maximum Digital Resolution 7680 × 4320 G-SYNC Supported DirectX DirectX 12 Ultimate OpenGL OpenGL 4.6 Power Consumption 300 W Power Connector 1 × 16-pin Recommended PSU 750 W; ATX 3.1 PSU recommended Cooling Triple-fan design with TORX FAN 5.0 Card Dimensions 303 × 121 × 49 mm Card Weight 994 g Compatibility & Important Information The graphics card measures 303 × 121 × 49 mm; check available graphics card clearance in the PC case before installation. MSI specifies 300 W graphics card power consumption and recommends a 750 W power supply. The card uses one 16-pin power connector, and MSI recommends an ATX 3.1 power supply. The card uses a PCI Express Gen 5 interface. Maximum supported display configuration is four displays, using three DisplayPort 2.1b outputs and one HDMI output. MSI identifies this model as an SFF-Ready Enthusiast GeForce Card; case compatibility should still be checked before installation. Package Contents Graphics card support stand Produ Specifications Manufacturers Link https://www.msi.com/Graphics-Card/GeForce-RTX-5070-Ti-16G-SHADOW-3X-OC Graphics Card Specifications GPU Manufacturer NVIDIA GPU Series GeForce RTX 5000 Series GPU Model GeForce RTX 5070 TI Memory Size 16 GB DDR7 Please to review
