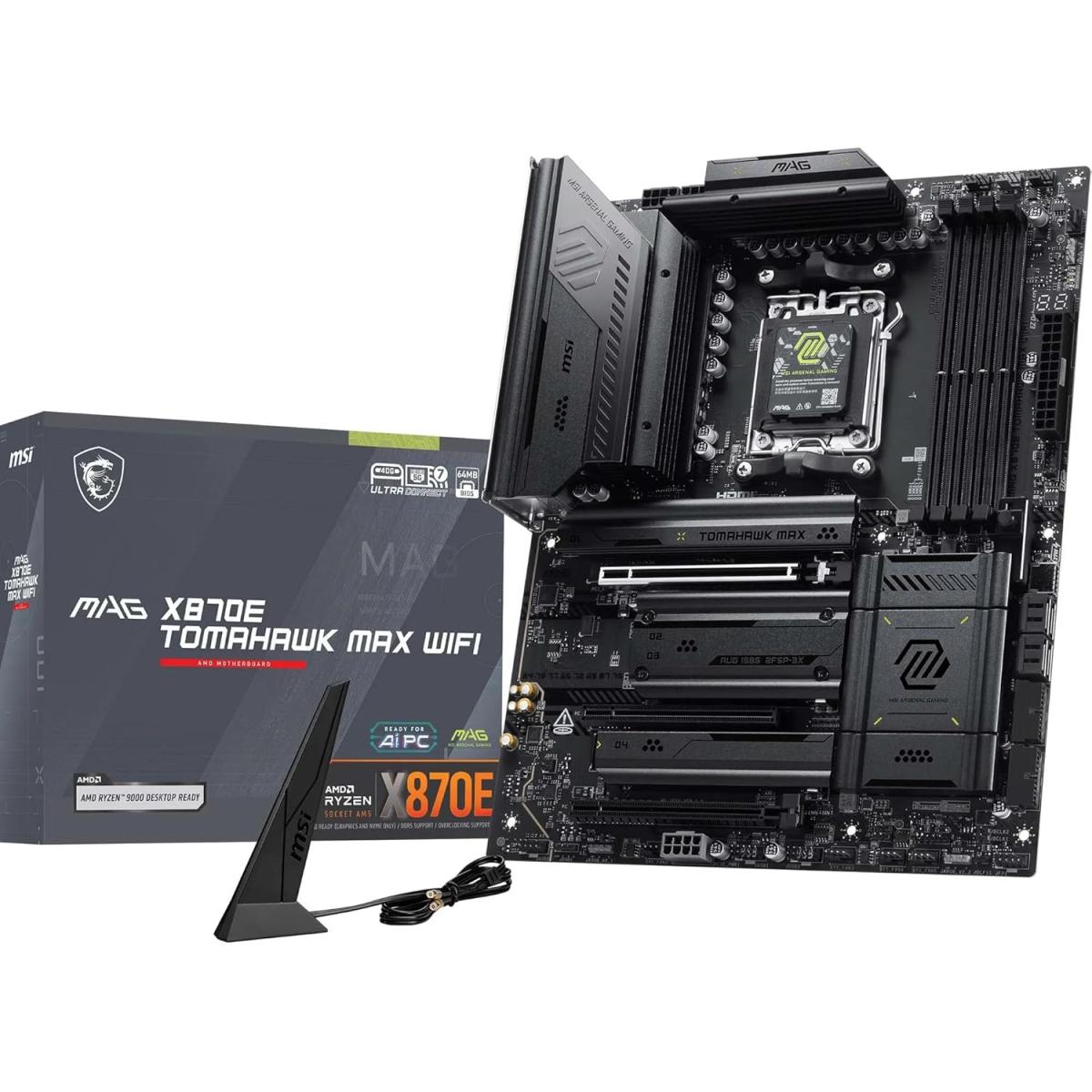

The MSI MAG X870E TOMAHAWK MAX WIFI is an ATX motherboard based on the AMD X870E chipset and Socket AM5, supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors. It combines DDR5 memory support with PCIe 5.0 expansion, four M.2 storage slots and a 14+2+1 Duet Rail Power System with 80A Smart Power Stage. Connectivity includes Wi-Fi 7, Bluetooth 5.4, Realtek 5G LAN and two rear USB 40Gbps Type-C ports. MSI also equips the board with dual PCIe 5.0 M.2 support, Audio Boost 5, Extended Heatsink Design and EZ DIY features for installation, upgrades and troubleshooting. Key Features AMD X870E Platform: Socket AM5 support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors. DDR5 Memory: Four DDR5 UDIMM slots with up to 256GB capacity and memory overclocking support up to 8400+ MT/s. PCIe 5.0: Primary CPU-connected PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen processors. High-Speed Storage: Four M.2 slots including two supporting up to PCIe 5.0 x4, plus four SATA 6G ports. High-Speed Networking: Wi-Fi 7, Bluetooth 5.4 and Realtek 8126 5G LAN. USB4 Connectivity: Two rear USB 40Gbps Type-C ports with DisplayPort support. Technical Specifications Component Specification MSI Model MAG X870E TOMAHAWK MAX WIFI Chipset AMD X870E CPU Socket AM5 CPU Support AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Power Design 14+2+1 Duet Rail Power System, 80A Smart Power Stage Memory Slots 4 × DDR5 UDIMM Maximum Memory 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Memory Features AMD EXPO, Dual-Channel, Non-ECC Un-buffered memory, CUDIMM support in Clock Driver bypass mode Expansion Slots 3 × PCIe x16 Primary PCIe Slot PCIe 5.0 x16 from CPU; operating generation and lanes depend on installed processor Additional PCIe Slots 1 × PCIe 3.0 x1, 1 × PCIe 4.0 x4 M.2 Storage 4 × M.2; M.2_1 and M.2_2 up to PCIe 5.0 x4, M.2_3 and M.2_4 up to PCIe 4.0 x4 SATA 4 × SATA 6G RAID RAID 0 / 1 / 10 for SATA; RAID 0 / 1 / 5 / 10 for M.2 NVMe, subje to processor support LAN Realtek 8126 5G LAN Wi-Fi Wi-Fi 7, 2.4 GHz / 5 GHz / 6 GHz, 320 MHz, up to 5.8Gbps Bluetooth Bluetooth 5.4 Audio Realtek ALC4080, 7.1-Channel USB High Performance Audio HDMI 1 × HDMI 2.1 FRL, up to 8K 60Hz USB4 Display Output 2 × Type-C DisplayPort 1.4 HBR3, up to 4K 60Hz Rear USB 40Gbps 2 × Type-C Rear USB 10Gbps 2 × Type-A, 1 × Type-C Rear USB 5Gbps 3 × Type-A Rear USB 2.0 Front USB Support 1 × USB 20Gbps Type-C, 4 × USB 5Gbps Type-A, 4 × USB 2.0 Form Factor ATX Dimensions 243.84 × 304.8 mm Operating System Windows 11 64-bit Compatibility & Important Information The motherboard uses Socket AM5 and supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors. Memory compatibility and supported speeds vary according to the installed processor, memory modules and DIMM configuration. The primary PCIe slot operates at PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors, PCIe 4.0 x8 with Ryzen 8700, 8600 and 8400 Series processors, and PCIe 4.0 x4 with Ryzen 8500 and 8300 Series processors. M.2_1 supports up to PCIe 5.0 x4 with Ryzen 9000 and 7000 Series processors and up to PCIe 4.0 x4 with Ryzen 8000 Series processors. M.2_2 is unavailable with Ryzen 8500 and 8300 Series processors. The rear USB 40Gbps Type-C ports and M.2_2 share bandwidth. With an M.2_2 device installed, both operate at PCIe 5.0 x2; configuring M.2_2 for PCIe 5.0 x4 in BIOS disables the USB 40Gbps Type-C ports. HDMI and USB-C DisplayPort video outputs require a processor featuring integrated graphics. RAID 5 for M.2 NVMe is supported only with Ryzen 9000 Series processors, while M.2 NVMe RAID 10 is supported only with Ryzen 9000 and 7000 Series processors. Produ Specifications Manufacturers Link https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-MAX-WIFI Motherboard Specifications CPU Support AMD Ryzen IX Generation CPU Socket Type AM5 Chipset AMD X870E Form Factor ATX Memory Type DDR5 Memory Speed 9200 Mhz Maximum Memory 256 GB Memory Slots 4 Slots M.2 Slots Yes Wireless LAN Yes Warranty Warranty 1 Year Please to review Q: Which processors are compatible with the MSI MAG X870E TOMAHAWK MAX WIFI? A: MSI specifies support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors using Socket AM5. Q: How much DDR5 memory does the motherboard support? A: It has four DDR5 UDIMM slots with a maximum capacity of 256GB and supports AMD EXPO and memory overclocking. Q: What is the maximum specified DDR5 overclocked speed? A: MSI specifies up to 8400+ MT/s for Ryzen 9000 Series processors in a 1DPC 1R configuration. Supported speeds vary with the processor and memory configuration. Q: Does the motherboard support PCIe 5.0 graphics cards? A: The primary slot supports PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series processors use different PCIe generations and lane configurations depending on the processor. Q: How many M.2 SSD slots are available? A: There are four M.2 slots. M.2_1 and M.2_2 support up to PCIe 5.0 x4 with compatible processors, while M.2_3 and M.2_4 support up to PCIe 4.0 x4. Q: Are there any bandwidth limitations when using M.2_2? A: Yes. M.2_2 shares bandwidth with the rear USB 40Gbps Type-C ports. When an M.2_2 device is installed, both operate at PCIe 5.0 x2. Configuring M.2_2 for PCIe 5.0 x4 in BIOS disables the USB 40Gbps Type-C ports. Q: Does it include Wi-Fi and Bluetooth? A: Yes. MSI specifies Wi-Fi 7 with 2.4 GHz, 5 GHz and 6 GHz band support and Bluetooth 5.4. Q: Do the onboard display outputs work with every compatible processor? A: No. MSI specifies that the HDMI and USB-C DisplayPort outputs require a processor featuring integrated graphics.
