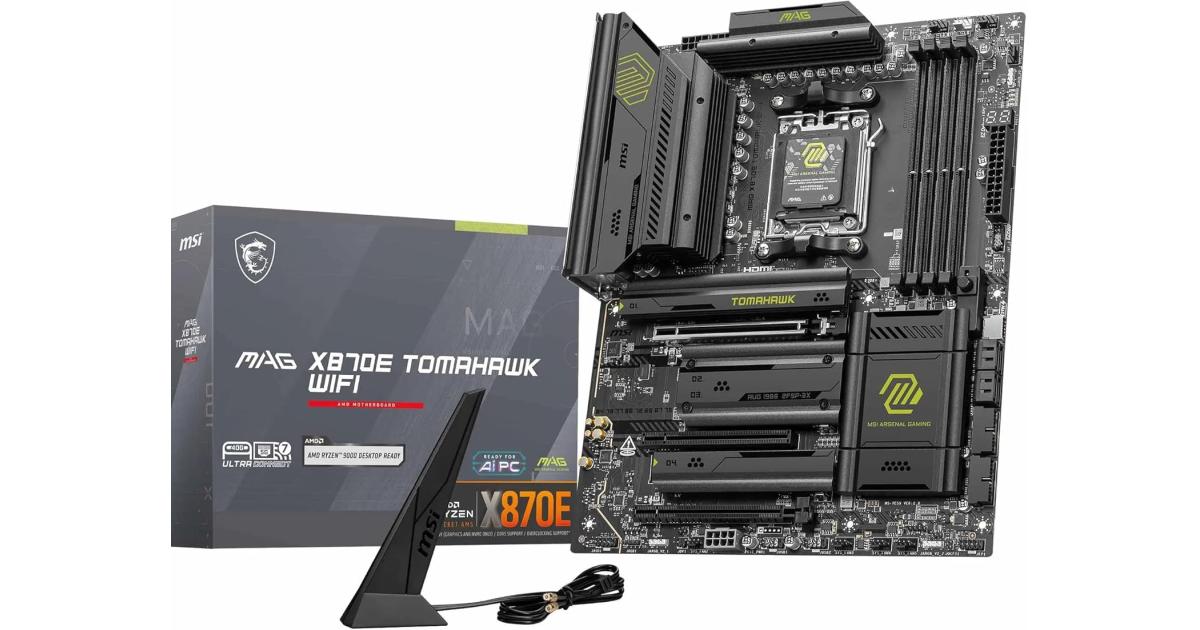

MSI MAG X870E TOMAHAWK WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

MSI MAG X870E TOMAHAWK WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5, AMD X870E, AMD AM5, DDR5, 4, 256GB, 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s, Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A, ATX, Yes, 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
