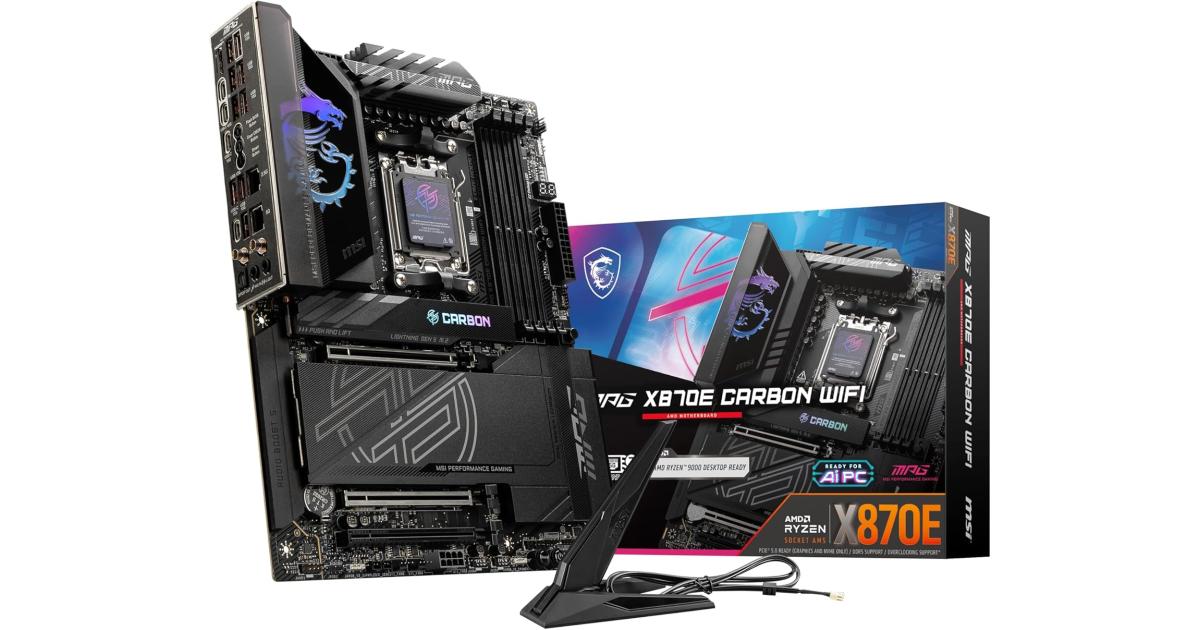

MSI MPG X870E CARBON WIFI (Wi - Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

MSI MPG X870E CARBON WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

This AMD ATX motherboard is intended for AMD PC builds that match the AM5, X870E, DDR5. Confirm ATX support, storage slot requirements, and WIFI needs before pairing it with a CPU, memory kit, case, and graphics card.
MSI MPG X870E CARBON WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX...
Vendor: ORST
SKU: WIFI-ad5c1e3b
Availability: Out Of Stock
Product Type: Motherboards
377.110 JOD
377.110 JOD
(-0%)
Please hurry! Only 0 left in stock
Subtotal: 377.110 JD
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over JOD100

Estimated to be delivered on 24-48 Hours.

Free Returns

Learn More.

Built And Shipped Within 24 Hours

MSI MPG X870E CARBON WIFI (Wi - Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

Vendor: ORST

MSI MPG X870E CARBON WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

377.110 JD

Vendor: ORST

MSI MPG X870E CARBON WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard

377.110 JD

MSI MPG X870E CARBON WIFI (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming MotherBoard: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5, AMD X870E, AMD AM5, DDR5, 4, 256GB, 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*, USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out, ATX, Yes, 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4

Which CPU and memory should be matched with this motherboard?

Match it with processors for the listed AM5 platform and use DDR5. Do not mix DDR4 and DDR5 memory kits.

Will this motherboard fit my PC case and storage setup?

Use a case that supports the listed ATX and check the M.2/SATA storage support before selecting SSDs. This listing includes WIFI networking information.
