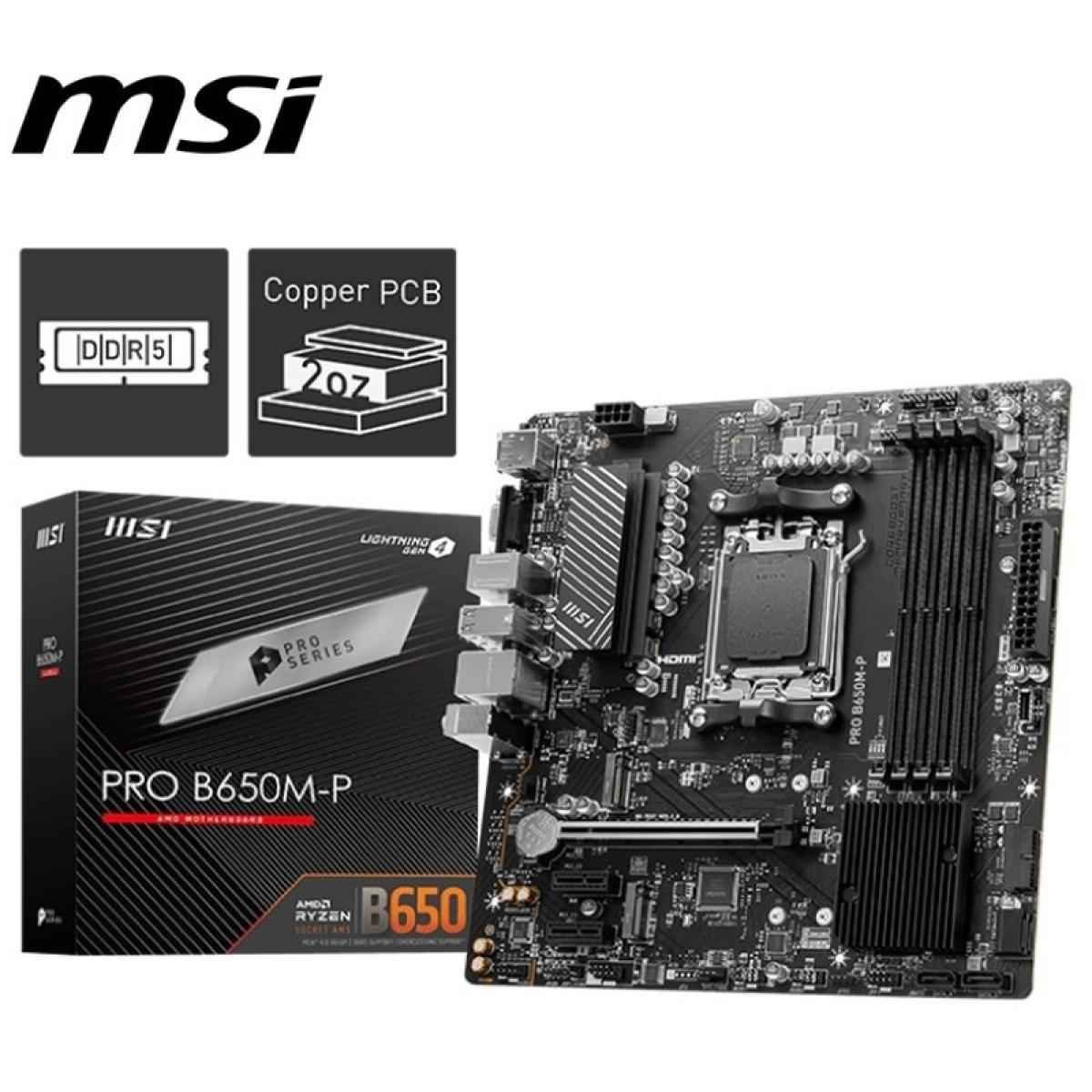

Msi Pro B650m P Am5 Ryzen 7000 Ddr5 Sata 6g 2x M.2 2.5g Lan 7.1 Audio Matx Motherboard

Model Msi Model Pro B650m P Supported Cpu Cpu Socket Type Am5 Cpu Type Supports Amd Ryzen 7000 Series Desktop Processors Chipsets Chipset Amd B650 Memory Number Of Memory Slots 4x288pin (ddr5) Memory Standard Memory Support Ddr5 6000+(oc)/ 5800(oc)/ 5600(oc)/ 5400(oc)/ 5200(oc)/ 5000(oc)/ 4800(jedec) Mhz Max. Overclocking Frequency: 1dpc 1r Max Speed Up To 6000+ Mhz 1dpc 2r Max Speed Up To 6000+ Mhz 2dpc 1r Max Speed Up To 6000+ Mhz 2dpc 2r Max Speed Up To 6000+ Mhz Maximum Memory Supported 192gb Channel Supported Dual Channel Ecc Supported Non Ecc Buffer Supported Un Buffered Memory Feature Supports Amd Expo Expansion Slots Pci Express 4.0 X16 1x Pci E X16 Slot Pci_e1 Gen Pcie 4.0 Supports Up To X16 (from Cpu) Pci Express X1 2x Pci E X1 Slot Pci_e2 Gen Pcie 3.0 Supports Up To X1 (from Chipset) Pci_e3 Gen Pcie 3.0 Supports Up To X1 (from Chipset) Storage Devices Sata 6gb/s 4 X Sata 6gb/s M.2 2x M.2 M.2_1 Source (from Cpu) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices M.2_2 Source (from Chipset) Supports Up To Pcie 4.0 X4 , Supports 2280/2260 Devices Sata Raid Supports Raid 0, Raid 1 And Raid 10 For Sata Storage Devices Supports Raid 0 And Raid 1 For M.2 Nvme Storage Devices Onboard Audio Audio Chipset Realtek Alc897 Codec 7.1 Channel High Definition Audio Audio Channels 7.1 Channels Onboard Lan Lan Chipset Realtek 8125bg 2.5g Lan Max Lan Speed 2.5gbps Rear Panel Ports Back I/o Ports 1 X D Sub / 1 X Displayport / 1 X Flash Bios Button / 1 X Hdmi / 1 X Lan (rj45) / 1 X Ps/2 Keyboard/mouse Combo / 2 X Usb 3.2 Gen 1 Type A / 2 X Usb 3.2 Gen 2 Type A / 3 X Audio Jacks / 4 X Usb 2.0/1.1 Internal I/o Conneors Onboard Usb 4x Usb 2.0 Ports 2x Usb 3.2 Gen1 Type A Ports 1x Usb 3.2 Gen2 Type C Ports Other Conneors 1x Power Conneor(atx_pwr) 1x Power Conneor(cpu_pwr) 1x Cpu Fan 1x Pump Fan 3x System Fan 2x Front Panel (jfp) 1x Chassis Intrusion (jci) 1x Front Audio (jaud) 1x Com Port (jcom) 2x Addressable V2 Rgb Led Conneor (jargb_v2) 2x Rgb Led Conneor(jrgb) 1x Tpm Pin Header(support Tpm 2.0) Physical Spec Form Faor Micro Atx Dimensions (w X L) 9.6" X 9.6" Windows 11 Compatibility Windows 11 Supported Packaging Package Contents Quick Installation Guide 2 X M.2 Clips Sata Cable I/o Shield Produ Specifications Manufaurers Link Https://www.msi.com/motherboard/pro B650m P/specification Motherboard Specifications Cpu Support Amd Ryzen Vii Generation Cpu Socket Type Am5 Chipset Amd B650 Form Faor Atx Memory Type Ddr5 Memory Speed 6000 Mhz Maximum Memory 192 Gb Memory Slots 4 Slots M.2 Slots Yes Wireless Lan Warranty Warranty 1 Year Xigmatek Veor 1050w 80+ Silver Semi Modular Intel Core I7 7740x X Series Kaby Lake Up To 4.3ghz 8mb 320 149 Intel Core I7 7820x 8 Core Up To 4.3 Ghz 11 Mb Cache 525 179 Deepcool Rgb 350 Colour Led Strip Magnetic Lighting Kit With Remote Ek Supremacy Evo Full Nickel Cpu Water Block Ek Fc1080 Gtx Ti Strix Nickel Gpu Water Block 129 Please To Review
