From the manufa urer
MSI Business & Produ ivity
MSI Business & Produ ivity specializes in home & commercial office computing hardware with a design emphasis on produ ivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Produ ivity offers a broad array of innovative produ s to ensure a competitive working environment.

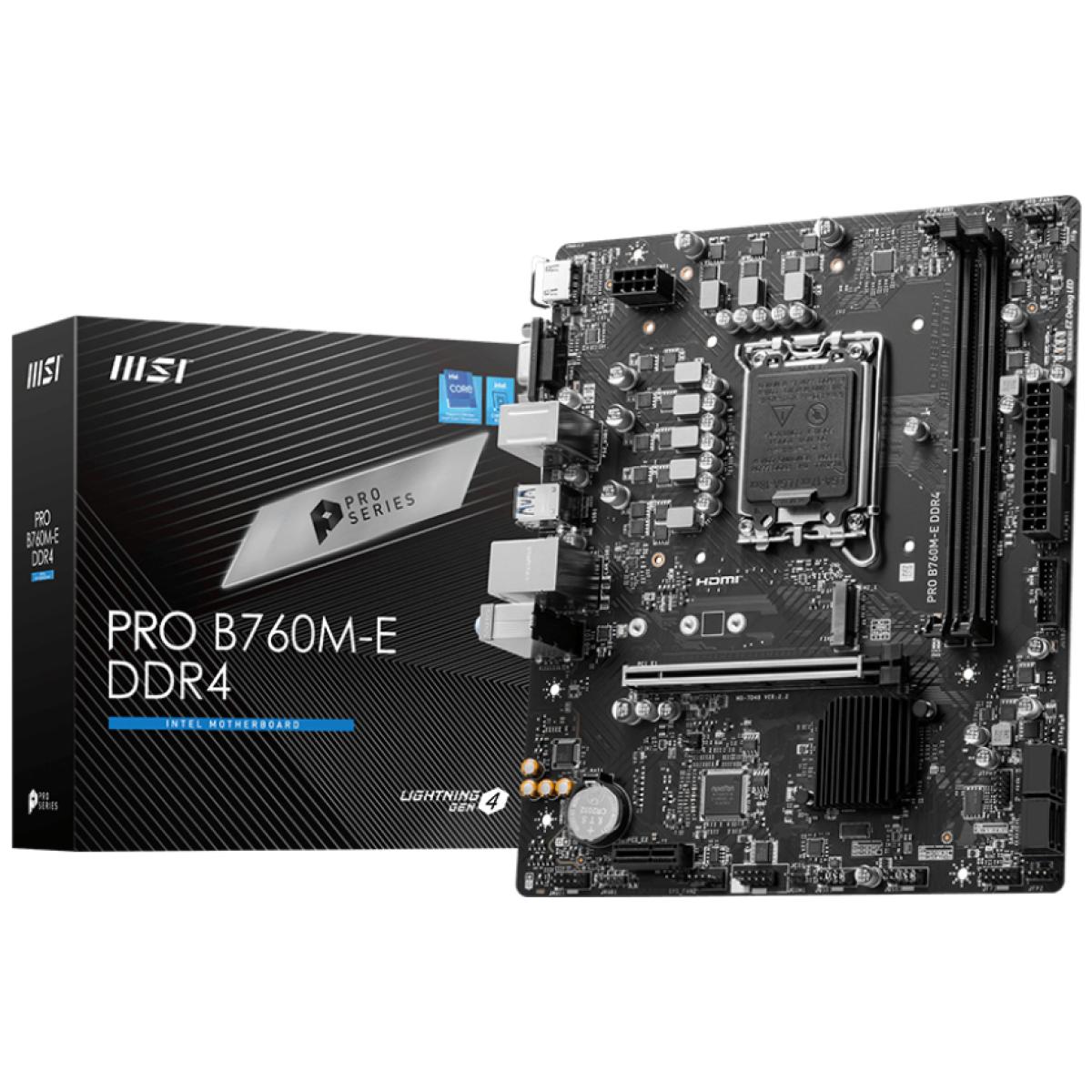

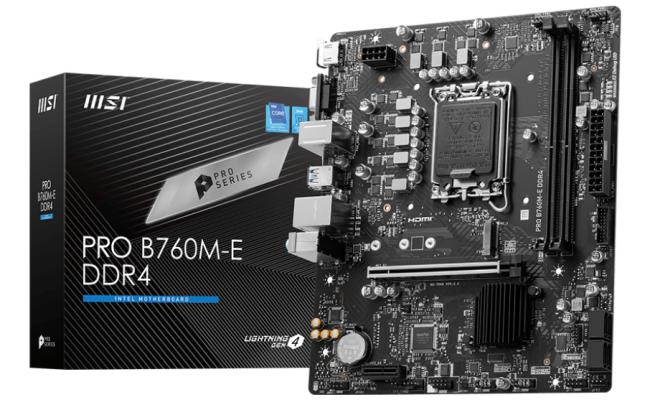

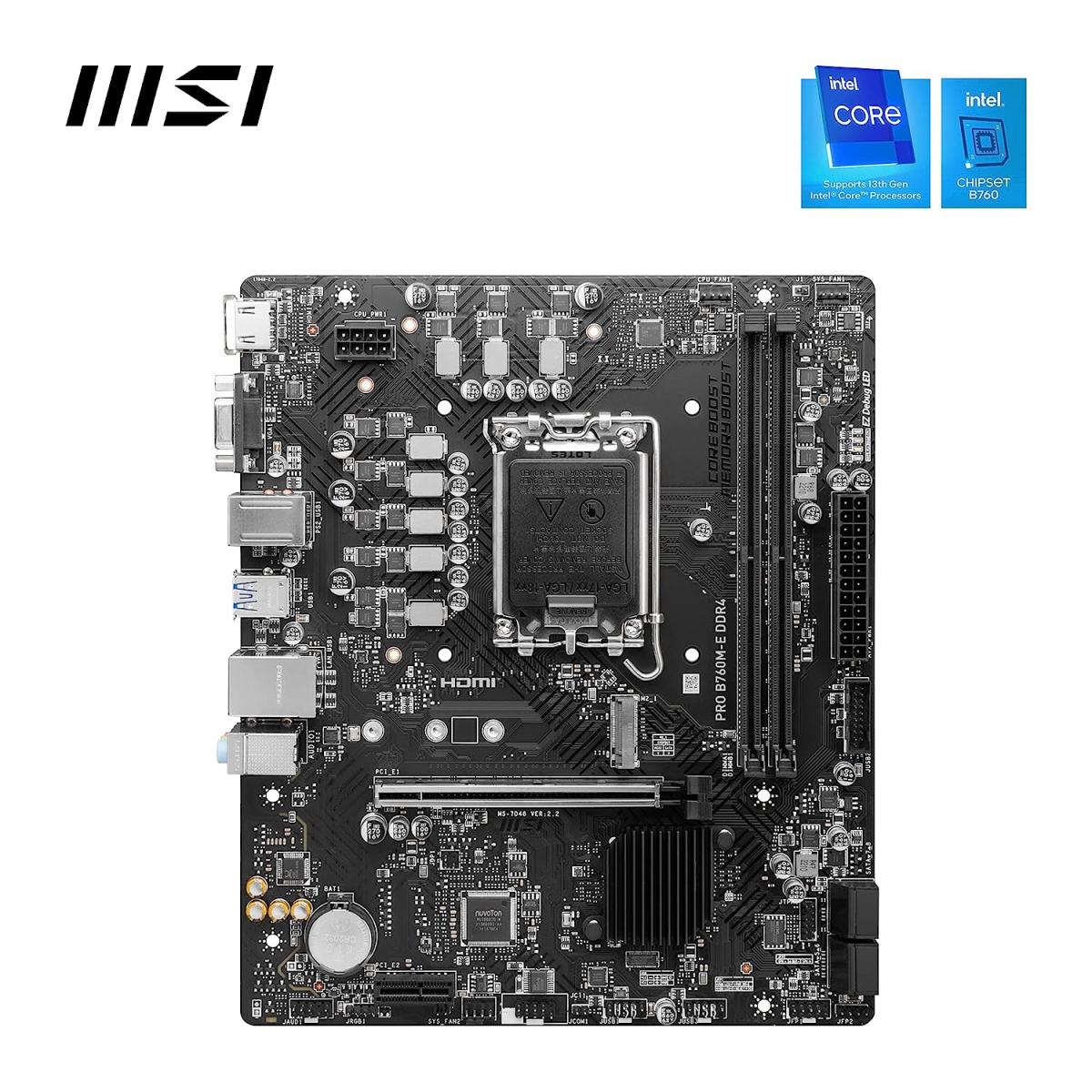

PRO B760M-E DDR4
Business Elegance
The PRO B760M-E DDR4 is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that fulfills business needs.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 2 x DDR4 DIMMs with Memory Boost: Dual Channel (64GB Max. / 4800MHz OC)
- 1 x PCIe 4.0 x16 slot
- Lightning Gen4 M.2
- HDMI & VGA display outputs
- 7.1 HD Audio with Audio Boost
B760 Chipset, Smart Cooling, DDR4 Memory Boost, PCIe 4.0 x16 slot
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th & 13th Gen ProcessorsThe PRO B760M-E DDR4 Motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Fa or: Micro-ATX Socket Type: LGA 1700 Chipset: Intel B760 |
Integrated Cooling FeaturesChipset Heatsink: Provides passive cooling Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures |
2 x DDR4 Dual Channel (4800 MHz OC)*Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP. |
Premium Storage Performance, Conne ivity
|
|
|
|
|---|---|---|---|
Fortified PCIe 4.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of conta from ele romagnetic interference: 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor) 1 x PCIe 3.0 x1 slot |

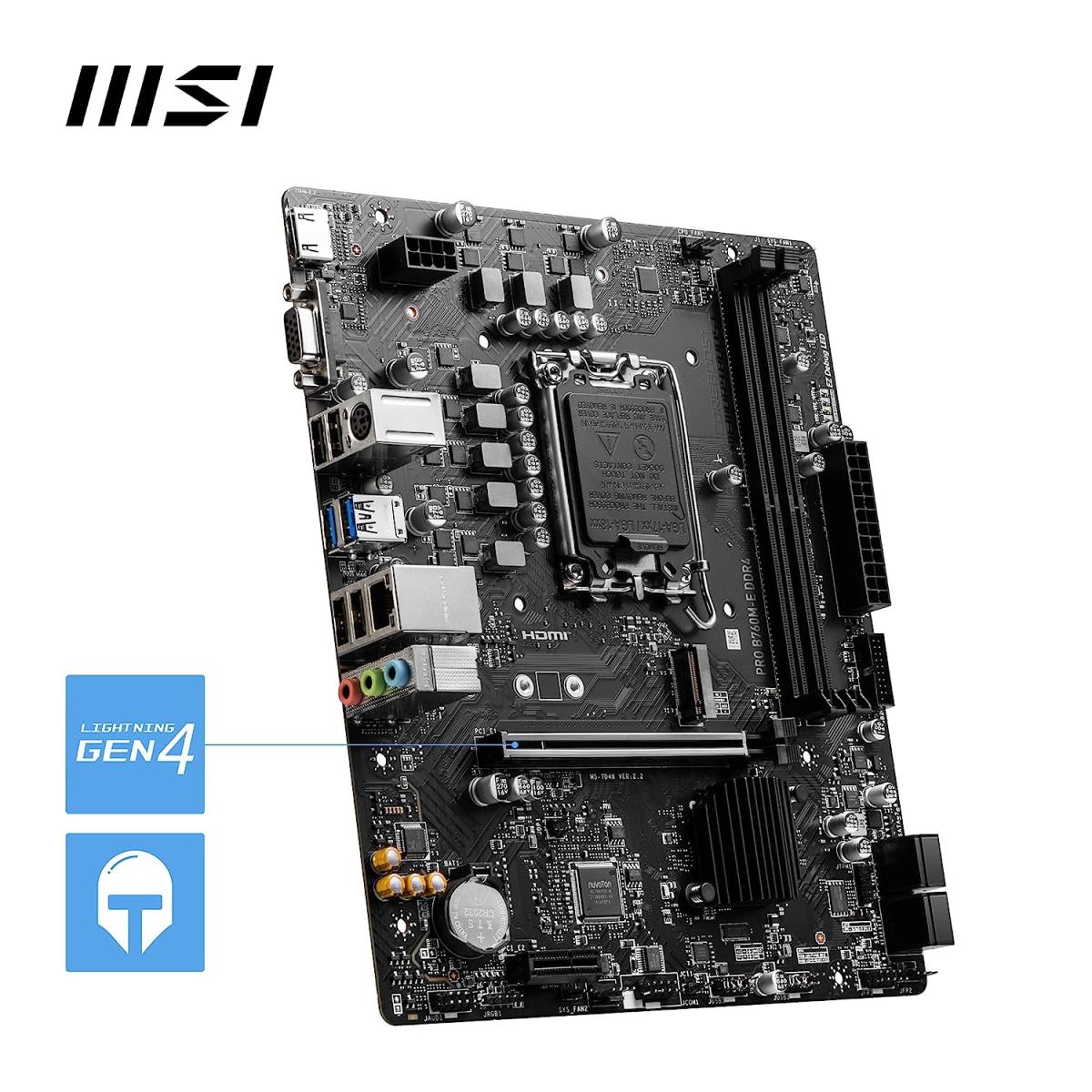

Gen4 M.2 Conne orsThe PRO B760M-E DDR4 motherboard features MSI's Gen4 M.2 slot: 1 x Gen4 x4 64Gbps slot |

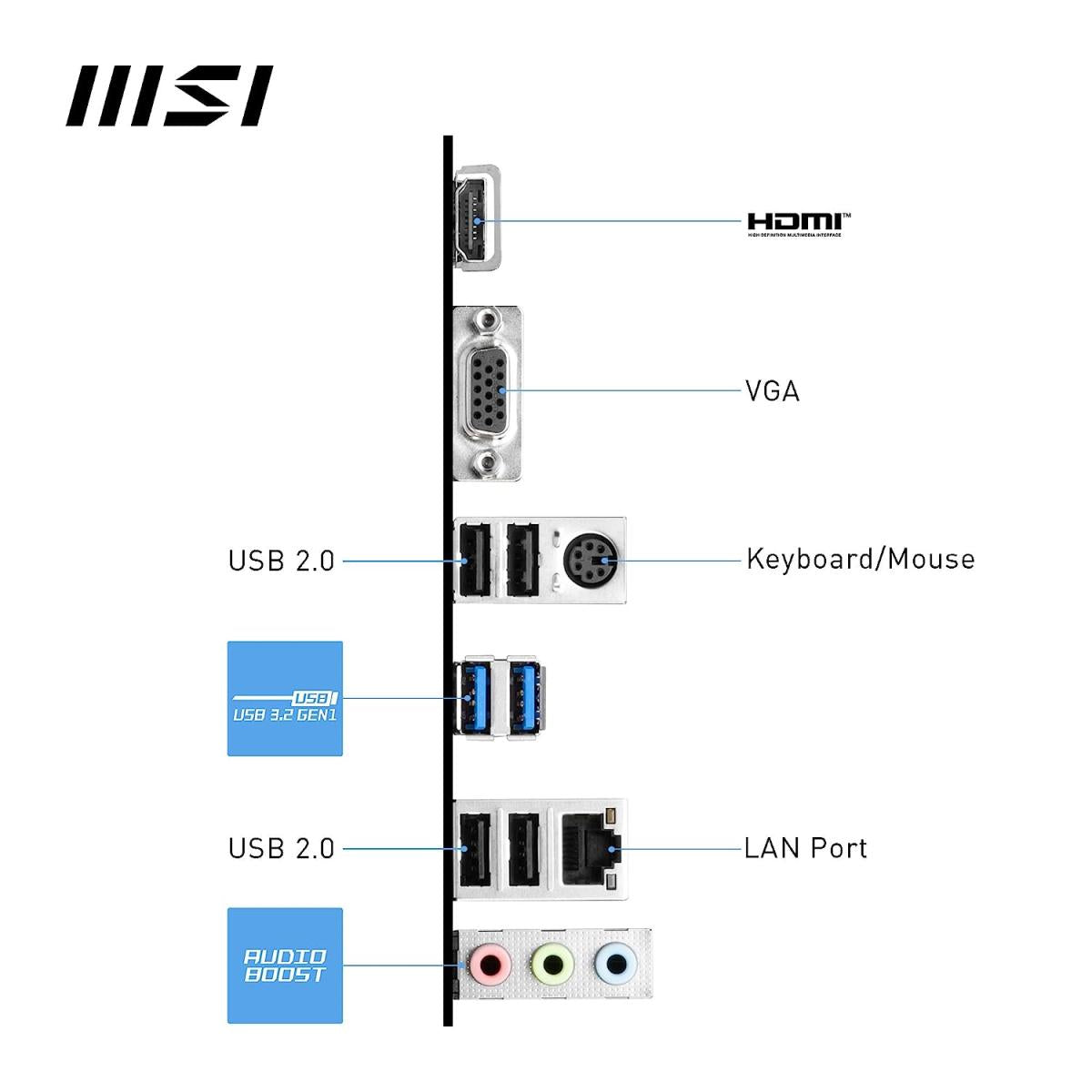

Conne ivity1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 1 Type-A: Conne to devices and transfer files at high bandwidth rates: 5Gbps. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Diplay Outputs: Include HDMI 1.4 (4K/30Hz) and legacy VGA |
Which CPU and memory should be matched with this motherboard?
Match it with processors for the listed B760 platform and use DDR4. Do not mix DDR4 and DDR5 memory kits.
Will this motherboard fit my PC case and storage setup?
Use a case that supports the listed Micro ATX and check the M.2/SATA storage support before selecting SSDs. Add-in Wi-Fi may be needed if onboard wireless networking is not listed.
