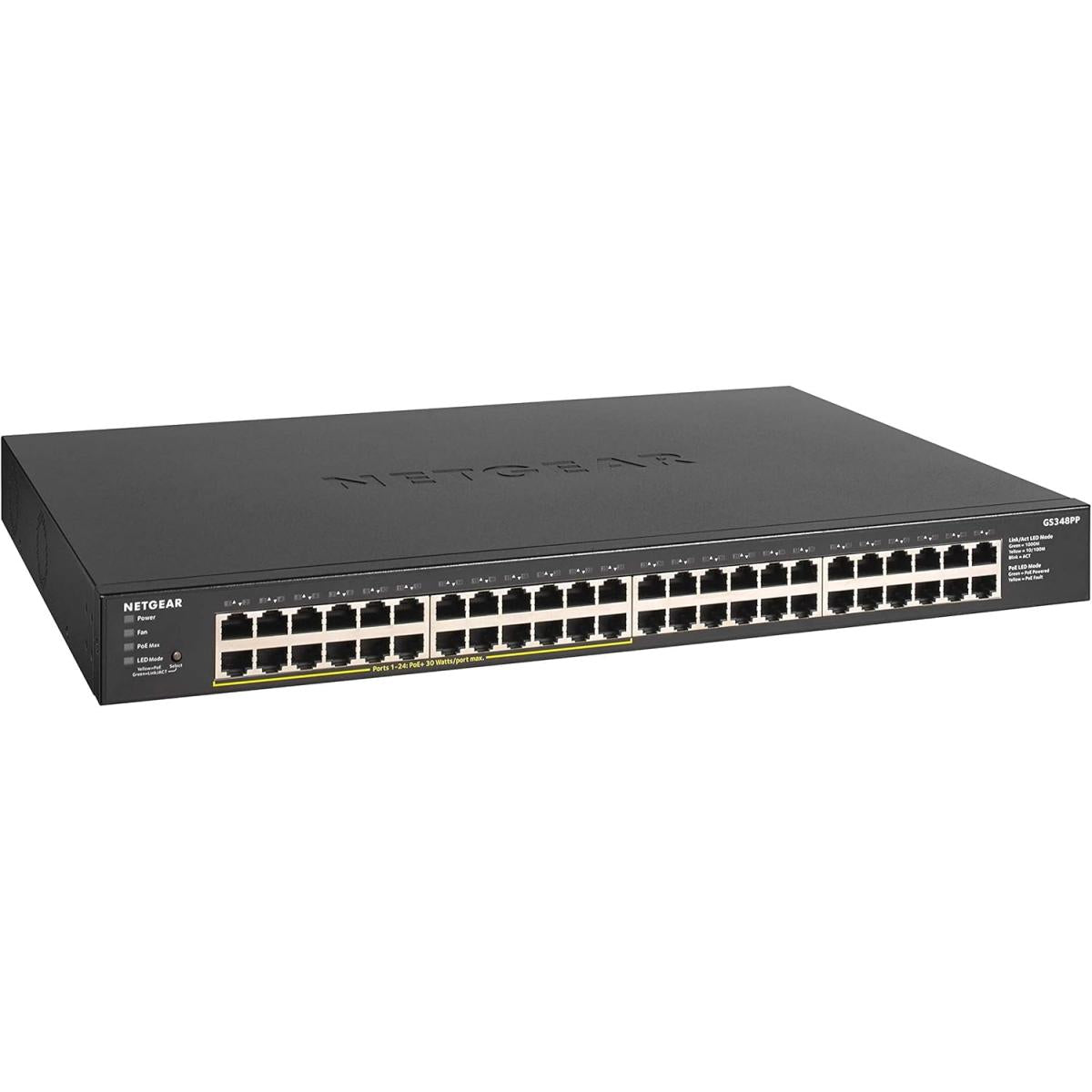

The NETGEAR GS348PP is a 48-port Gigabit Ethernet unmanaged switch designed for business and high-density wired networks that require simple plug-and-play connectivity together with Power over Ethernet. It provides 48 auto-sensing 10/100/1000 Mbps Ethernet ports, with 24 ports supporting IEEE 802.3at PoE+ and a total PoE power budget of up to 380 W. Key Features 48 Gigabit Ethernet Ports: 48 auto-sensing 10/100/1000 Mbps RJ45 ports for high-density wired network expansion. 24 PoE+ Ports: IEEE 802.3at Power over Ethernet Plus support with up to 30 W per supported port. 380 W PoE Budget: High total PoE capacity for compatible powered network devices. 96 Gbps Switching Bandwidth: Non-blocking architecture supports wire-speed network throughput. PoE Auto-Balance: Automatically balances available PoE power according to connected device requirements. Plug-and-Play: Unmanaged operation requires no software installation or network configuration. Technical Specifications Component Specification NETGEAR Model GS348PP Produ Type Unmanaged Gigabit PoE+ Switch Ethernet Ports 48 × 10/100/1000 Mbps RJ45 PoE+ Ports PoE Standard IEEE 802.3at PoE+ Maximum PoE Power per Port Up to 30 W Total PoE Budget Up to 380 W PoE Auto-Balance Supported Switching Bandwidth 96 Gbps, Non-Blocking Forwarding Rate 1,488,000 pps per Gigabit Port for 64-Byte Packets Gigabit Latency Less Than 4 μs Average for 64-Byte Packets MAC Address Table Packet Buffer 1.5 MB Jumbo Frame Support 12,288 Bytes QoS IEEE 802.1p CoS / DSCP Tag Support Flow Control IEEE 802.3x Energy Efficient Ethernet IEEE 802.3az Auto MDI/MDI-X Supported Duplex Auto-Sensing Half / Full Duplex Power Input Internal, 110–240 V AC, 50/60 Hz, 8 A Max Maximum Power Consumption 410 W Standby Power Consumption 10 W MTBF 570,972 Hours at 25°C Dimensions 440 × 310 × 43 mm Weight 4.56 kg Chassis Metal Installation Rack Mount / Desktop Compatibility & Important Information The GS348PP is an unmanaged switch and does not require software installation or network configuration for normal operation. Only 24 of the 48 Gigabit Ethernet ports provide IEEE 802.3at PoE+ power; the remaining Gigabit ports provide network data connectivity without PoE output. Each PoE+ port supports up to 30 W, while the total power available across connected PoE devices must remain within the 380 W system PoE budget. PoE Auto-Balance dynamically distributes available power according to the requirements of compatible connected powered devices. Compatible IEEE standards-based PoE devices can receive power and network data through the same Ethernet cable. This GS348PP does not provide SFP or SFP+ fiber slots and should not be confused with other 48-port NETGEAR switch families. Package Contents NETGEAR GS348PP Gigabit Unmanaged PoE+ Switch x 1 Power Cord, Localized to Country of Sale x 1 Rack-Mount Kit x 1 Rubber Footpads for Desktop Installation Installation Guide x 1 Please to review Q: How many Ethernet ports does the NETGEAR GS348PP have? A: It provides 48 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports. Q: Do all 48 ports provide PoE? A: No. The GS348PP provides PoE+ on 24 of its 48 Gigabit Ethernet ports. Q: What PoE standard does the GS348PP support? A: The 24 powered ports support IEEE 802.3at PoE+, with up to 30 W available per supported port. Q: What is the total PoE power budget? A: NETGEAR specifies a total PoE power budget of up to 380 W. Q: Does the switch require configuration? A: No. The GS348PP is an unmanaged plug-and-play switch and does not require software installation or network configuration for normal operation. Q: What is PoE Auto-Balance? A: NETGEAR PoE Auto-Balance automatically distributes available PoE power according to the requirements of compatible connected powered devices. Q: Can the GS348PP be rack mounted? A: Yes. The official data sheet identifies rack and desktop installation, and a rack-mount kit is included. Q: Does the GS348PP have SFP ports? A: No. This model provides 48 Gigabit RJ45 Ethernet ports and does not list SFP or SFP+ interfaces.
