Operation System
Android 4.0, Android 4.2, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.1, Android 8.1, Android 10.0, Android 13.0
Support Resolution
8K
WiFi
802.11n 2.4GHz
Other attributes
Place of Origin
Guangdong, China
Private Mold
NO
Brand Name
JEVIT
Model Number
S905Y4
Processor Core
Quad Core
Processor
Allwinner H313
Features
High Speed
Ethernet
1 x 10/100/1000MBps
CPU
Quad core ARM Cortex-A35
GPU
Mali-G31 MP2
OS
Android OS (Android 13.0)
Connectivity
Wi-Fi 2.4G+5GHz +BT 5.2
Network Streaming
HTML5, RTSP, HLS, Smooth streaming
Name
Game tv stick, 8k tv stick, fire tv stick. android tv stick
Packaging and delivery
Packaging Details
BOX
| Android TV Stick | ||
| V1.0 | ||
| Product Description | ||
| Android TV Stick: R9 H.264/H.265 up to 1080P 60fps Video encoding H.264/H.265 decoding up to 4K 60fps |
||
| Basic Parameters | ||

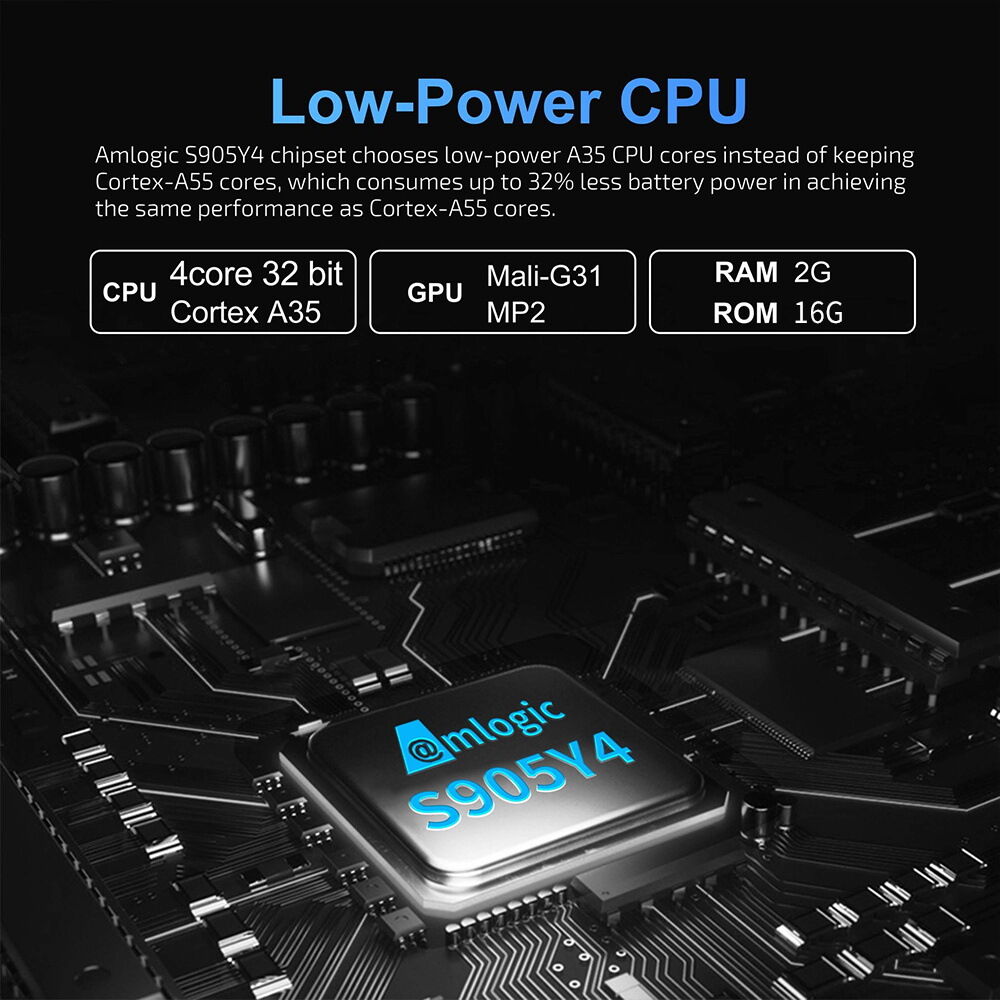

| System | SoC: Amgoic S905Y4 | |
| CPU: Quad core ARM Cortex-A35 | ||
| GPU: Mali-G31 MP2 | ||
| DRAM: 2GB-8GB | ||
| Flash: 16GB -64GB | ||
| Launcher: Android OS | ||
| Language: Default English | ||
| OS: Android 13.0 | ||
| Connectivity | Wi-Fi 2.4G+5GHz +BT 5.2 | |
| I/O | ||
| Video Output | HDMI 2.0a x 1 | |
| Audio Output | HDMI 2.0a x 1 | |
| Peripheral Interface | Update Recovery Key x 1, TF x 1(R3 supports) | |
| Power Interface | Micro USB DC 5V 1A ,with LED Indicator | |
| Power Consumption | 5W | |
| Stanby Power | <0.5W | |
| Other Interface | IR receiver,with extended line | |
| Media | ||
| Video | Decoder: H.265 Main10 L5.1 up to 4K 60fps, VP9 Profile 2 up to 4K 30fps, AVS2 JuZhun 10bit Profile up to 4K 30fps, H.264 BP/MP/HP L4.2 up to 4K 30fps, H.263 BP up to 1080p 30fps, MPEG-4 SP/ASP L5 up to 1080p 60fps, MPEG-2 MP/HL up to 1080p 60fps, MPEG-1 MP/HL up to 1080p 60fps, Xvid up to 1080p 60fps, Sorenson Spark up to 1080p 60fps, VP8 up to 1080p 60fps, AVS/AVS+ JiZhun Profile up to 1080p 60fps, WMV9/VC1 SP/MP/AP up to 1080p 60fps, JPEG HFIF file format up to 45MPPS, Encoder: H.264 BP/MP/HP, H.264 supports I/P frame,and only support single reference frame, MJPEG/JPEG baseline, Maximum 16-megapixel(4096X4096)resolution for H.264 encoding, H.264 encoding capability:1080p 60fps, JPEG sanpshot performance of 1080p 60fps independently, Supports the constant bit rate(CBR)/variable bit rate(VBR) bit rate control mode,ranging from 100Mbit/s, Encoding of eight regions of interest(ROIs), |
|
| Format: SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8 etc. |
||
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) |
|
| Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
||
| Subtitle Format | SMI, SRT, SSA, AS S,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| System Upgrading | Upgrading via USB disk or internet | |
| External Storage | USB storage not less than 128GB (FAT32/NTFS) | |
| APP | TBD | |
| Other Parameters | ||

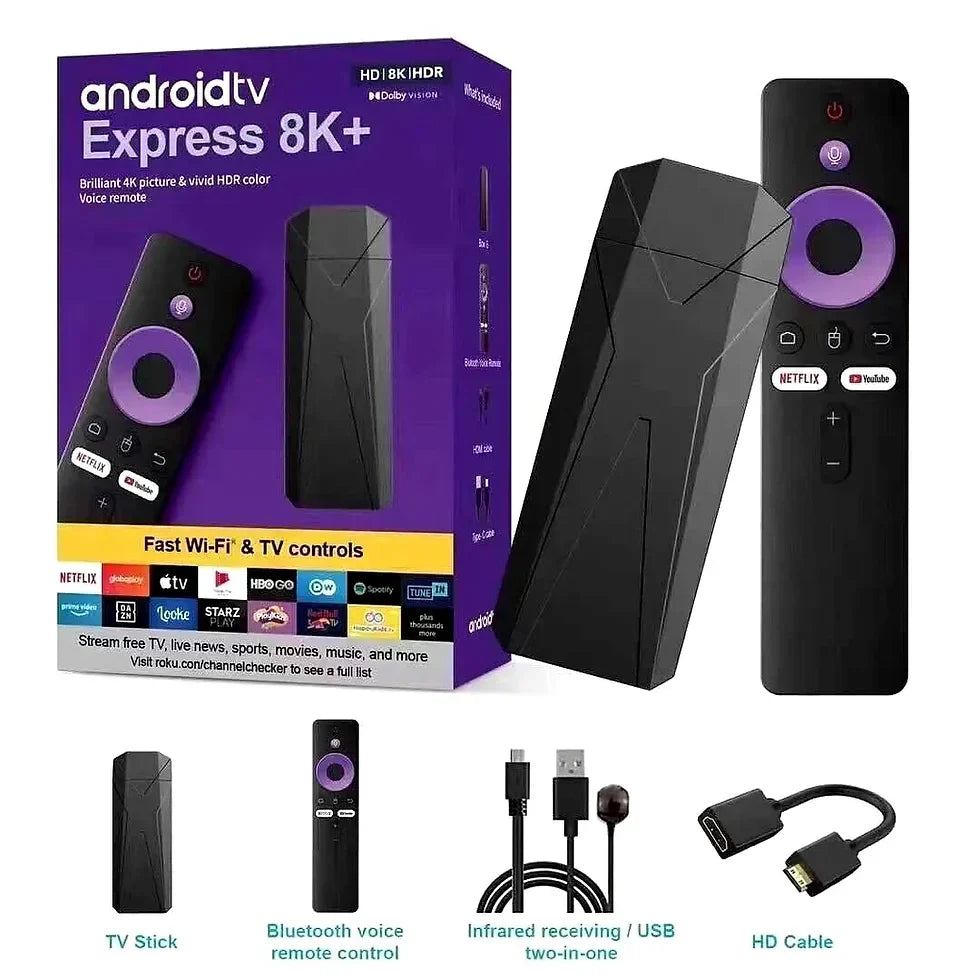

| Packing List | TV Stick x1;User manual x1;USB cable x1;HDMI cable x1;IR Cable x1;IR Remote x1 | |
| Operation Temperature | 0~40℃, Humidity<95% | |
| Physical characteristics | Size: 104mm*38mm*12mm | |
| Weight: TBD | ||
| Color:Black | ||
| Material: Plastic | ||
| Stickers | MAC(QR code);Nameplate(Model Name) | |
Specifications
| System | SoC: Amgoic S905Y4 |
|---|---|
| Connectivity | Wi-Fi 2.4G+5GHz +BT 5.2 |
| Video Output | HDMI 2.0a x 1 |
| Audio Output | HDMI 2.0a x 1 |
| Peripheral Interface | Update Recovery Key x 1, TF x 1(R3 supports) |
| Power Interface | Micro USB DC 5V 1A ,with LED Indicator |
| Power Consumption | 5W |
| Stanby Power | <0.5W |
| Other Interface | IR receiver,with extended line |
| Video | Decoder: H.265 Main10 L5.1 up to 4K 60fps, VP9 Profile 2 up to 4K 30fps, AVS2 JuZhun 10bit Profile up to 4K 30fps, H.264 BP/MP/HP L4.2 up to 4K 30fps, H.263 BP up to 1080p 30fps, MPEG-4 SP/ASP L5 up to 1080p 60fps, MPEG-2 MP/HL up to 1080p 60fps, MPEG-1 MP/HL up to 1080p 60fps, Xvid up to 1080p 60fps, Sorenson Spark up to 1080p 60fps, VP8 up to 1080p 60fps, AVS/AVS+ JiZhun Profile up to 1080p 60fps, WMV9/VC1 SP/MP/AP up to 1080p 60fps, JPEG HFIF file format up to 45MPPS, Encoder: H.264 BP/MP/HP, H.264 supports I/P frame,and only support single reference frame, MJPEG/JPEG baseline, Maximum 16-megapixel(4096X4096)resolution for H.264 encoding, H.264 encoding capability:1080p 60fps, JPEG sanpshot performance of 1080p 60fps independently, Supports the constant bit rate(CBR)/variable bit rate(VBR) bit rate control mode,ranging from 100Mbit/s, Encoding of eight regions of interest(ROIs), |
| Audio | Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) |
| Subtitle Format | SMI, SRT, SSA, AS S,SUB, SUB+IDX, ISO Navigation |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF |
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming |
| System Upgrading | Upgrading via USB disk or internet |
| External Storage | USB storage not less than 128GB (FAT32/NTFS) |
| APP | TBD |
| Packing List | TV Stick x1;User manual x1;USB cable x1;HDMI cable x1;IR Cable x1;IR Remote x1 |
| Operation Temperature | 0~40℃, Humidity<95% |
| Physical characteristics | Size: 104mm*38mm*12mm |
| Stickers | MAC(QR code);Nameplate(Model Name) |
