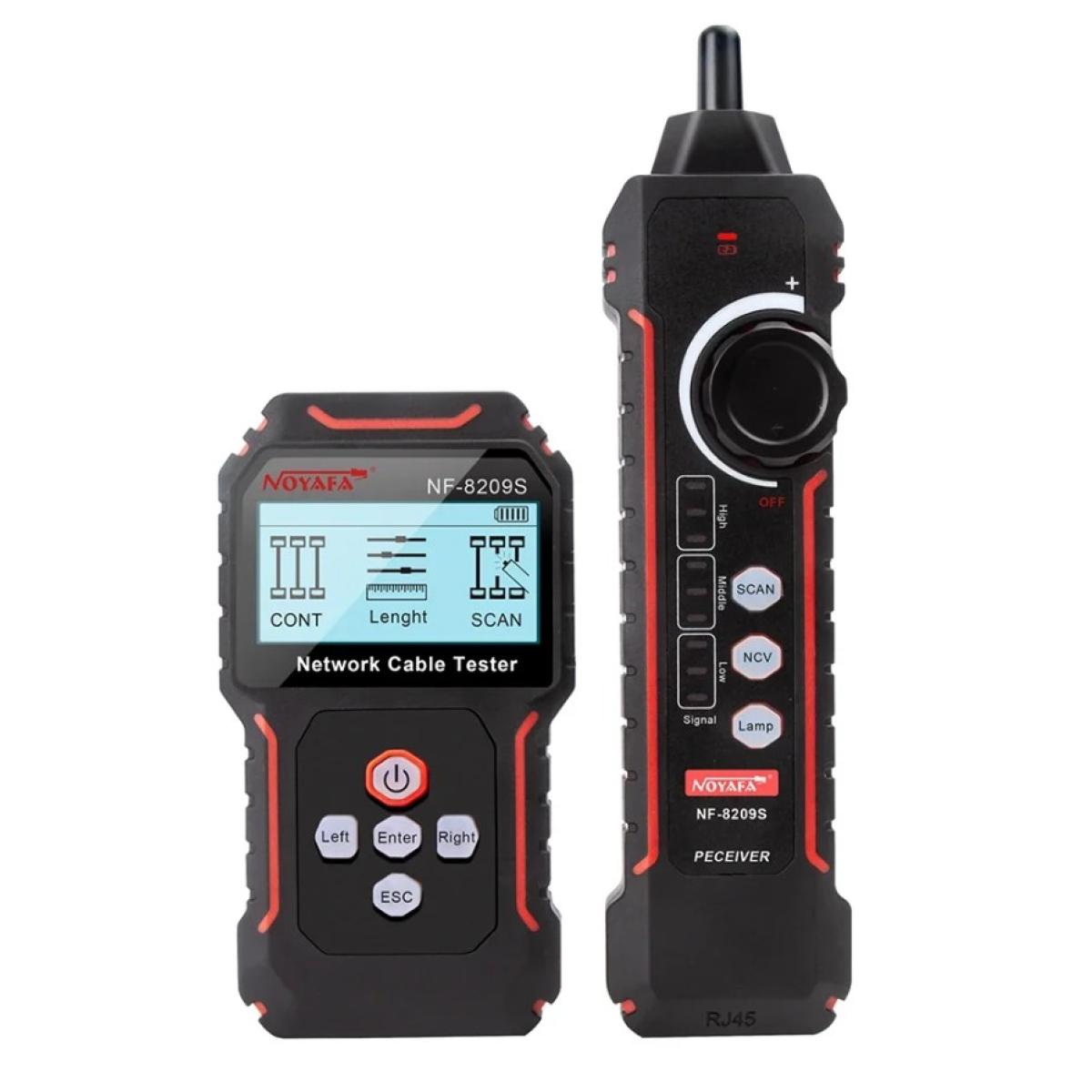

NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester

NOYAFA NF-8209S Network Cable Tester

EMITTER Cable Type:CAT5e, CAT6, CAT6a (STP & UTP) Wiremap with Switch Directly: Yes Max. Range (Wiremap & Scan): 600 m Length Test Range: 2.5–200 m Length Accuracy:≤20 m ±1.6m|20–100m ±2.4m|>100m ±3.2m Length Breakage Location: Yes...
SKU: NF-8209S-e265a3b5
Availability: In Stock
Product Type: Networking
95.000 JOD
95.000 JOD
(-0%)

Delivery across Jordan

Delivery availability and timing depend on stock and destination. Final delivery options are confirmed with your order.

Returns, warranty & support

Need help after purchase? Contact CompuMe for return eligibility, warranty guidance and after-sales support.

NOYAFA NF-8209S Network Cable Tester

NOYAFA NF-8209S Network Cable Tester

95.000 JD
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester
NOYAFA NF-8209S Network Cable Tester

NOYAFA NF-8209S Network Cable Tester

95.000 JD
Description

  • EMITTER
  • Cable Type:CAT5e, CAT6, CAT6a (STP & UTP)
  • Wiremap with Switch Directly: Yes
  • Max. Range (Wiremap & Scan): 600 m
  • Length Test Range: 2.5–200 m
  • Length Accuracy:≤20 m ±1.6m|20–100m ±2.4m|>100m ±3.2m
  • Length Breakage Location: Yes
  • Scan Max. Signal Voltage:5V ±1.0 Vp-p
  • Scan Frequency:455 kHz
  • Scan Analog/Digital Mode: Yes
  • PoE Test Range: DC 5–60V,standard/non-standard PoE switch
  • PoE Voltage Display: YeS
  • PSE Type: Standard—IEEE 802.3af/at; Non-standard
  • Voltage Protection: DC 48V 5mA
  • LCD Display: 128×64 Dot-matrix with backlight
  • Power Supply: 3.7V,1400mAh Lithium Polymer Battery
  • Max. Working Current:<200 mA
  • RECEIVER
  • Sensitivity Adjustable: Yes
  • AC Voltage Detecting: Yes
  • Battery Type:3.7V,1400mAh Lithium Polymer Battery
  • Max. Working Current: <200 mA
