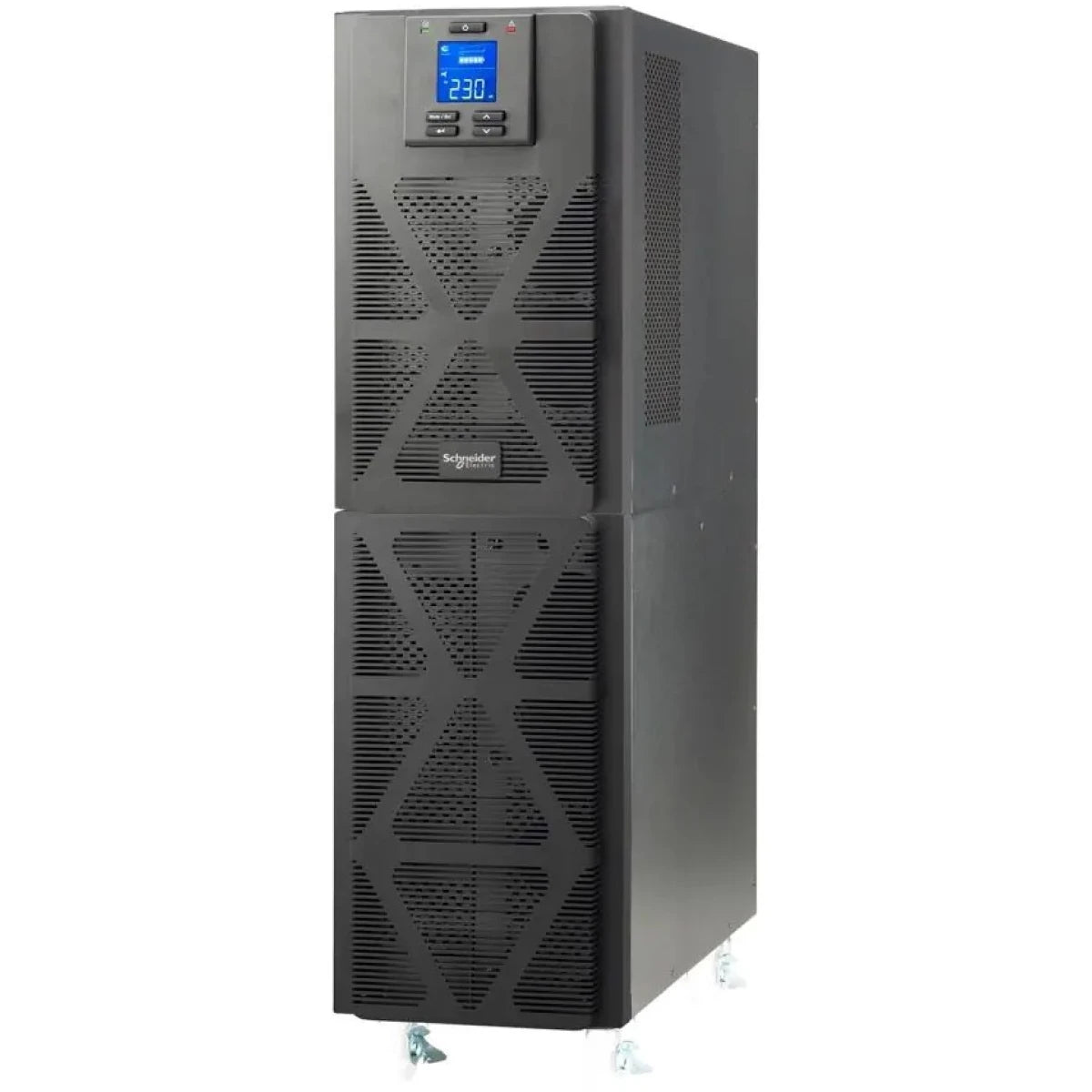

Overview Presentation For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. Main Run time for load Min-max: 600-6000 W 4min 1s Max. Capacity Used 100 % Main Input Voltage 230 V AC 1 phase Input voltage 220 V 240 V Input voltage limits 110...300 V half load 176...300 V full load Number of input connectors 1 hard wire 3-wire (1P + N + E) Network frequency 40...70 Hz auto sensing Output voltage 230 V AC 1 phase Output voltage 220 V 240 V Rated power in W 6000 W Rated power in VA 6000 VA Output connector type Hard wire 3-wire (1P + N + E) for 1 zone(s) Bypass type Internal bypass (automatic and manual) Crest factor 3 : 1 Maximum configurable power in VA 6000 VA Maximum configurable power in W 6000 W UPS type On-Line Wave type Sine wave Efficiency 94 % (full load) Output frequency 50/60 Hz +/- 3 Hz sync to mains Graphs Run Time View Runtime Graph Efficiency View Efficiency Graph Complementary Additional information Configurable for 220 : 230 or 240 nominal output voltage Battery type Lead-acid internal included Control panel Multifunction LCD status and control console Emergency power off Yes Free slots Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm UPS connectivity Serial port USB port Available expansion slot Surge energy rate 600 J Colour Black (RAL 7010) Height 685 mm Width 190 mm Depth 374 mm Produ weight 54 kg Mounting location Front Mounting preference No preference Mounting mode Not rack-mountable USB compatible Yes Mounting position Vertical Mounting mode Tower Number of power module filled slots Number of power module free slots Redundant Range of produ Easy UPS 1Ph On-Line Produ or component type Uninterruptible power supply (UPS) Environment Produ certifications UKCA Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Ambient air temperature for operation 0…40 °C Ambient air temperature for storage -15…60 °C Storage altitude 0…15000 m IP degree of protection IP20 Relative humidity 0…95 % non-condensing Storage Relative Humidity 0…95 % non-condensing Acoustic level 55 dBA Heat dissipation 1172 Btu/h Operating altitude 0...3000 m Batteries & Runtime Battery type Lead-acid battery Battery voltage Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
