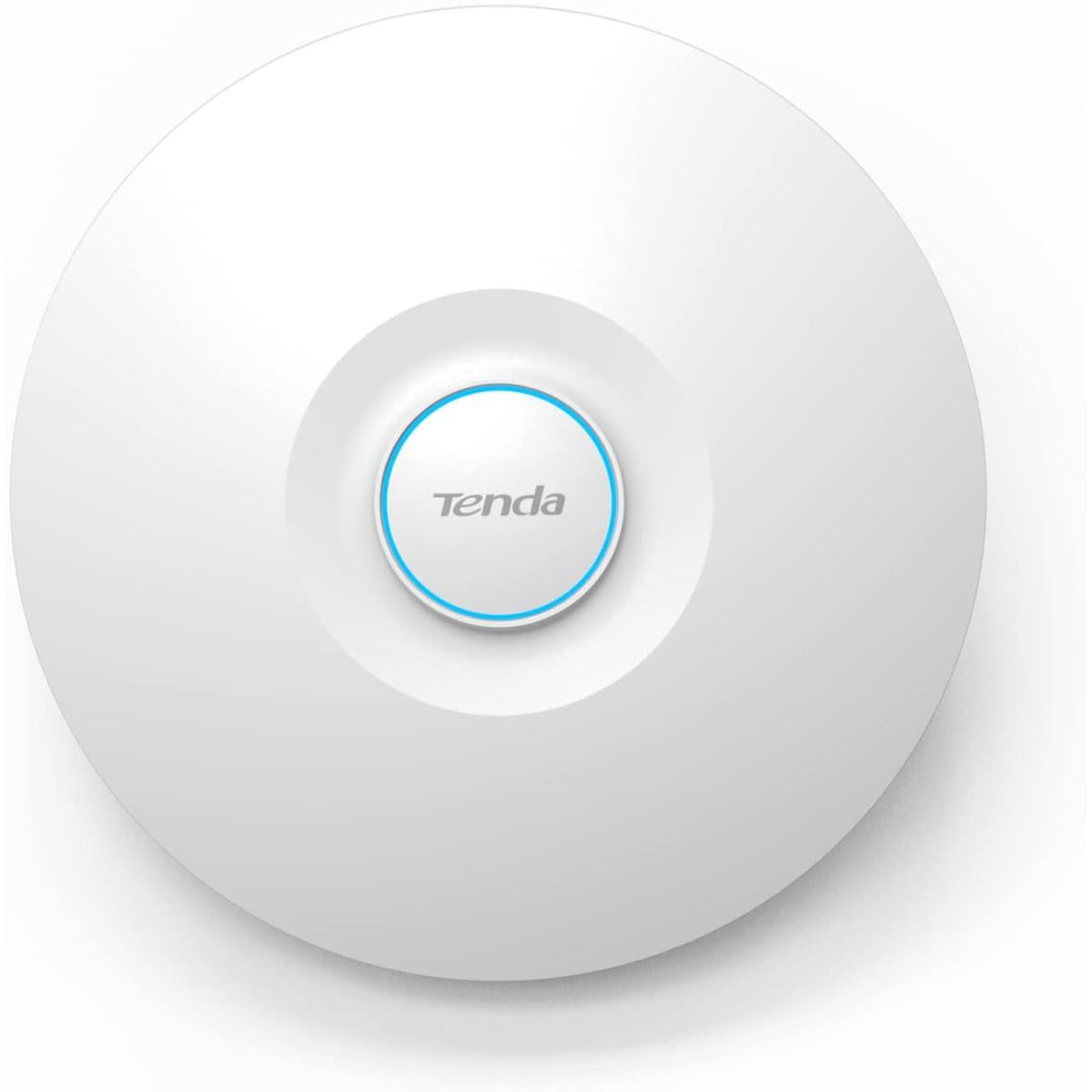

The Tenda i29 is an AX3000 dual-band Wi-Fi 6 ceiling access point designed for business wireless deployments. It supports wireless rates up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, together with 160 MHz channel bandwidth for compatible 5 GHz Wi-Fi 6 devices. Two Gigabit Ethernet interfaces, IEEE 802.3at PoE power, OFDMA, MU-MIMO, Beamforming and IEEE 802.11k/v/r fast roaming provide a practical platform for managed multi-access-point networks. Local web management, Tenda CloudFi cloud and app management, SSID VLAN tagging and client controls provide centralized configuration options for business environments. Key Features AX3000 Wi-Fi 6: Supports up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. 160 MHz Bandwidth: Wider channel support enables higher wireless link rates with compatible 5 GHz Wi-Fi 6 clients. Dual Gigabit Ethernet: Provides two 10/100/1000 Mbps Ethernet interfaces, including one PoE-powered port. Wi-Fi 6 Efficiency: OFDMA, MU-MIMO and Beamforming support efficient communication with multiple compatible clients. Fast Roaming: IEEE 802.11k/v/r support helps compatible clients move between access points in managed deployments. Business Management: Supports local web, Tenda CloudFi cloud/app management and compatible Tenda gateway management. Technical Specifications Component Specification Tenda Model i29 Produ Type AX3000 Wi-Fi 6 Ceiling Access Point Wireless Standards IEEE 802.11a/b/g/n/ac/ax Frequency Bands 2.4 GHz / 5 GHz Wi-Fi Class AX GHz Wireless Rate Up to 574 Mbps 5 GHz Wireless Rate Up to 2402 Mbps Channel Bandwidth 20 / 40 / 80 / 160 MHz Antenna Gain 4 dBi Ethernet Interfaces 2 x 10/100/1000 Mbps Gigabit Ethernet PoE Interface 1 x Gigabit Ethernet PoE Port Power Supply IEEE 802.3at PoE Maximum Power Consumption 15.74 W Maximum Associated Clients 254 Recommended Clients Operating Mode Maximum SSIDs 2.4 GHz: 8 / 5 GHz: 4 OFDMA Supported MU-MIMO Supported Beamforming Supported Fast Roaming IEEE 802.11k/v/r Wireless Security WPA-PSK / WPA2-PSK / WPA / WPA2 / WPA3 SSID VLAN Tagging Supported Wireless Controls Access Control, AP Isolation, Guest Network, RSSI Threshold, Client Control, Weak Signal Terminal Elimination, 5 GHz Prioritization Management Local Web / Tenda CloudFi Cloud / Tenda CloudFi App / Compatible Tenda Gateway Management LED Indicator RGB Button Reset Dimensions Ø250.6 x 55 mm Installation Ceiling Operating Temperature -10°C to 45°C Operating Humidity 10%–90% RH, Non-Condensing Compatibility & Important Information The Tenda i29 is a dual-band Wi-Fi 6 access point using the 2.4 GHz and 5 GHz bands. The PoE-powered Gigabit Ethernet interface requires a compatible IEEE 802.3at PoE source. The second Ethernet interface supports 10/100/1000 Mbps wired connectivity without being identified as the PoE input in Tenda's current parameter table. The 160 MHz channel option is available for supported wireless configurations and requires compatible client devices. The maximum wireless rates are theoretical values and actual throughput depends on client capabilities, interference, network configuration and operating conditions. IEEE 802.11k/v/r roaming requires compatible wireless clients and an appropriately configured multi-access-point network. Tenda specifies up to 254 associated wireless clients and recommends 80 clients for the i29. Tenda CloudFi cloud and app management require network access and the corresponding Tenda management service. Please to review Q: What wireless speeds does the Tenda i29 support? A: Tenda specifies up to 574 Mbps on 2.4 GHz and up to 2402 Mbps on 5 GHz. Q: Does the i29 support 160 MHz bandwidth? A: Yes. Tenda's current specification lists 20, 40, 80 and 160 MHz channel bandwidth options. Q: How many Ethernet ports does the i29 have? A: It has two 10/100/1000 Mbps Gigabit Ethernet interfaces, with one identified as the PoE-powered port. Q: How is the Tenda i29 powered? A: The current Tenda parameter page specifies IEEE 802.3at Power over Ethernet. Q: How many wireless clients can conne? A: Tenda specifies up to 254 associated wireless clients and recommends 80 clients. Q: Does the i29 support fast roaming? A: Yes. IEEE 802.11k/v/r fast roaming is supported for compatible clients and multi-access-point deployments. Q: Does the i29 support VLAN tagging? A: Yes. Tenda lists VLAN tagging for SSIDs as a supported function. Q: Can the i29 be managed through the cloud? A: Yes. Tenda supports CloudFi cloud and CloudFi app management, in addition to local web and compatible Tenda gateway management.
