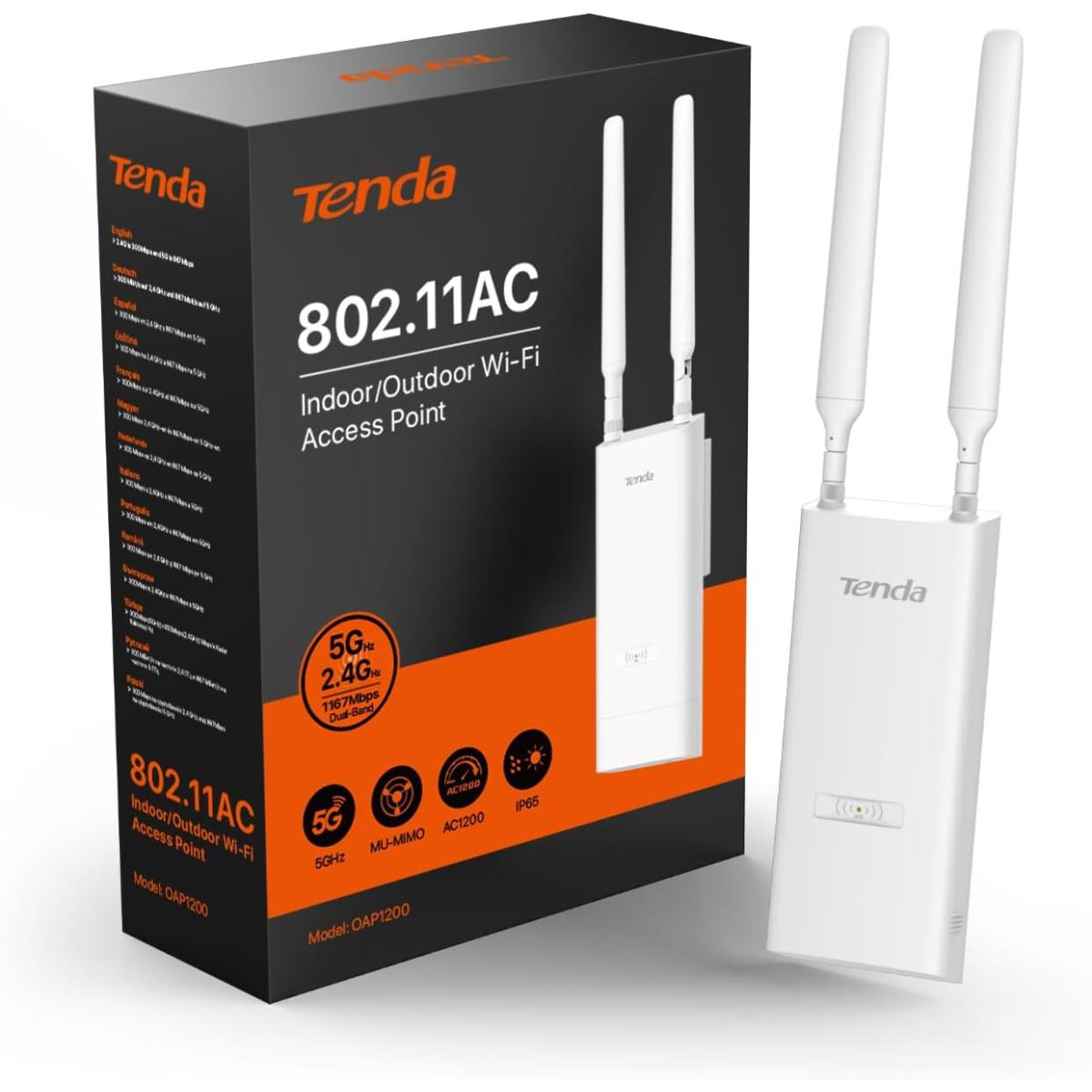

The Tenda OAP1200 is a dual-band 802.11ac Wave 2 indoor/outdoor wireless access point designed for business Wi-Fi deployments. It provides simultaneous wireless rates up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, with a Gigabit Ethernet interface for wired network connectivity. An IP65 enclosure, two detachable 5 dBi omnidirectional antennas and wall or pole installation support flexible indoor and outdoor deployment. MU-MIMO, Beamforming, VLAN tagging for SSIDs, fast roaming and Tenda CloudFi management provide useful functionality for managed multi-access-point networks. Key Features Dual-Band 802.11ac Wave 2: Supports up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for a combined theoretical rate up to 1167 Mbps. Outdoor-Ready IP65 Design: Protected enclosure designed for indoor and outdoor wireless deployments. Two 5 dBi Antennas: Detachable omnidirectional antennas use standard RP-SMA connectors for flexible antenna configuration. Gigabit PoE Connectivity: One 10/100/1000 Mbps Ethernet port supports network connectivity and PoE power. Business Wi-Fi Features: MU-MIMO, Beamforming, VLAN tagging for SSIDs and IEEE 802.11k/v/r fast roaming are supported. Flexible Management: Supports local web management, Tenda CloudFi cloud and app management, and compatible Tenda gateway management. Technical Specifications Component Specification Tenda Model OAP1200 Produ Type 802.11ac Wave 2 Indoor/Outdoor Wi-Fi Access Point Wireless Bands 2.4 GHz / 5 GHz Wireless Standards IEEE 802.11a/b/g/n/ac Wave 2 Combined Wireless Rate Up to 1167 Mbps 2.4 GHz Wireless Rate Up to 300 Mbps 5 GHz Wireless Rate Up to 867 Mbps Channel Bandwidth 20 / 40 / 80 MHz Antennas 2 x Detachable Omnidirectional Antennas Antenna Gain 5 dBi Antenna Connector RP-SMA Ethernet Interface 1 x 10/100/1000 Mbps Gigabit Ethernet PoE Port Power Supply IEEE 802.3af PoE / 24 V, 0.5 A Passive PoE Maximum Power Consumption 11.5 W Protection Rating IP65 Maximum Clients 256 Recommended Clients Operating Modes AP / Client+AP Maximum SSIDs 2.4 GHz: 8 / 5 GHz: 4 MU-MIMO Supported Beamforming Supported Fast Roaming IEEE 802.11k/v/r SSID VLAN Tagging Supported Wireless Security WEP / WPA-PSK / WPA2-PSK / WPA / WPA2 Wireless Controls Access Control, AP Isolation, Guest Network, RSSI Threshold, Client Control, 5 GHz Prioritization Management Local Web / Tenda CloudFi Cloud / Tenda CloudFi App / Compatible Tenda Gateway Installation Wall / Pole Mount Dimensions 194.7 x 83 x 42.1 mm Operating Temperature -30°C to 50°C Operating Humidity 10%–90% RH, Non-Condensing Compatibility & Important Information The OAP1200 operates simultaneously on the 2.4 GHz and 5 GHz bands using IEEE 802.11ac Wave 2 and earlier supported Wi-Fi standards. The Gigabit Ethernet interface is used for network connectivity and PoE power. Tenda's current specification lists IEEE 802.3af PoE and 24 V / 0.5 A Passive PoE. Passive PoE equipment must match the specified 24 V / 0.5 A requirement; do not substitute an unsupported passive PoE voltage. The two supplied antenna interfaces use standard RP-SMA connectors, allowing compatible antennas to be fitted when appropriate. Tenda specifies a maximum outdoor coverage radius up to 200 m under its test conditions. Actual range varies with installation position, obstacles, interference, client hardware and environmental conditions. IEEE 802.11k/v/r fast roaming requires compatible client devices and an appropriately configured multi-access-point network. The IP65 enclosure is designed for indoor and outdoor deployment, while installation and cable connections should follow Tenda's official installation instructions. Please to review Q: What wireless speeds does the Tenda OAP1200 support? A: Tenda specifies up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, for a combined theoretical wireless rate up to 1167 Mbps. Q: Can the OAP1200 be installed outdoors? A: Yes. It has an IP65-rated enclosure and is designed for indoor and outdoor deployment. Q: How is the OAP1200 powered? A: Tenda's current specification supports IEEE 802.3af PoE or 24 V / 0.5 A Passive PoE through the Ethernet connection. Q: Does it have a Gigabit Ethernet port? A: Yes. It provides one 10/100/1000 Mbps Gigabit Ethernet PoE port. Q: Are the antennas detachable? A: Yes. The OAP1200 uses two detachable 5 dBi omnidirectional antennas with standard RP-SMA connectors. Q: How many wireless clients does Tenda recommend? A: Tenda lists support for up to 256 clients and recommends up to 50 clients for the OAP1200. Q: Does the OAP1200 support fast roaming? A: Yes. Tenda's current specification lists IEEE 802.11k/v/r fast roaming support for compatible deployments and client devices. Q: Can the OAP1200 be managed through the cloud? A: Yes. Tenda lists CloudFi cloud and CloudFi app management, along with local web and compatible Tenda gateway management.
